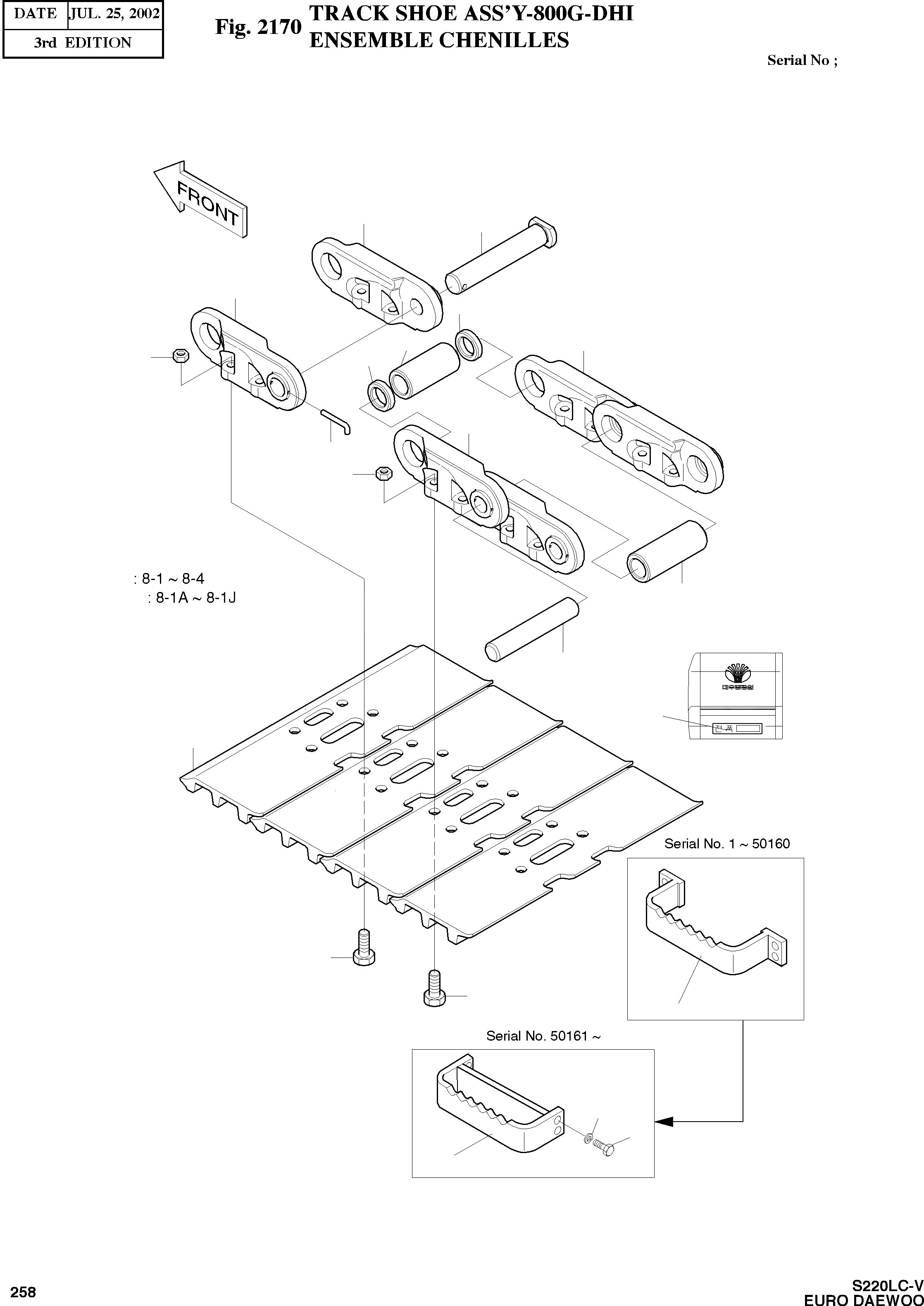

Запчасти Doosan Daewoo TRACK SHOE ASSY-800-DHI TRACK PARTS

-

2273-7053

TRACK ASS'Y-DHI

SC: D

-2шт.

8

2272-6106D3

TRACK SHOE ASS'Y 800 - DHI

desc: ENSEMBLE CHENILLES

2шт.

8-1

2272-6137

TRACK LINK ASS'Y

desc: . CHAINE

1шт.

8-1A

2272-6104R

LINK;TRACK(RH)

desc: .. MAILLON DROIT

48шт.

8-1B

2272-6104L

LINK;TRACK(LH)

desc: .. MAILLON GAUCHE

48шт.

8-1C

2272-6105R

LINK;MASTER(RH)

desc: .. MAILLON PRINCIPAL

1шт.

8-1D

2272-6105L

LINK;MASTER(LH)

desc: .. MAILLON PRINCIPAL

1шт.

8-1E

2123-6060

PIN

desc: .. GOUPILLE

48шт.

8-1F

2114-6035

SPACER

desc: .. ENTRETOISE

2шт.

8-1G

2123-6062

PIN;SMALL

desc: .. GOUPILLE

1шт.

8-1H

2110-6051

BUSHING

desc: .. DOUILLE

48шт.

8-1I

2110-6052

BUSHING;MASTER

desc: .. MANCHON

1шт.

8-1J

2123-6061

PIN;MASTER

desc: .. GOUPILLE PRINCIPALE

1шт.

8-2

2273-6040D3

SHOE 800mm

desc: . SABOT

49шт.

8-3

2120-6017

BOLT

desc: . BOULON A 6 PANS

196шт.

8-4

2121-6017

NUT

desc: . ECROU

196шт.

9

2195-2527D3

STEP BRACKET

SERIAL: 1-50160

4шт.

9

2625-1220D3

STEP BRACKET

SERIAL: 50161

4шт.

10

2190-1330D12

NAME PLATE

desc: PLAQUE D'IDENTIFICATION

1шт.

11

S0558253

BOLT

SERIAL: 50161

16шт.

12

S5102603

WASHER;SPRING

SERIAL: 50161

16шт.
