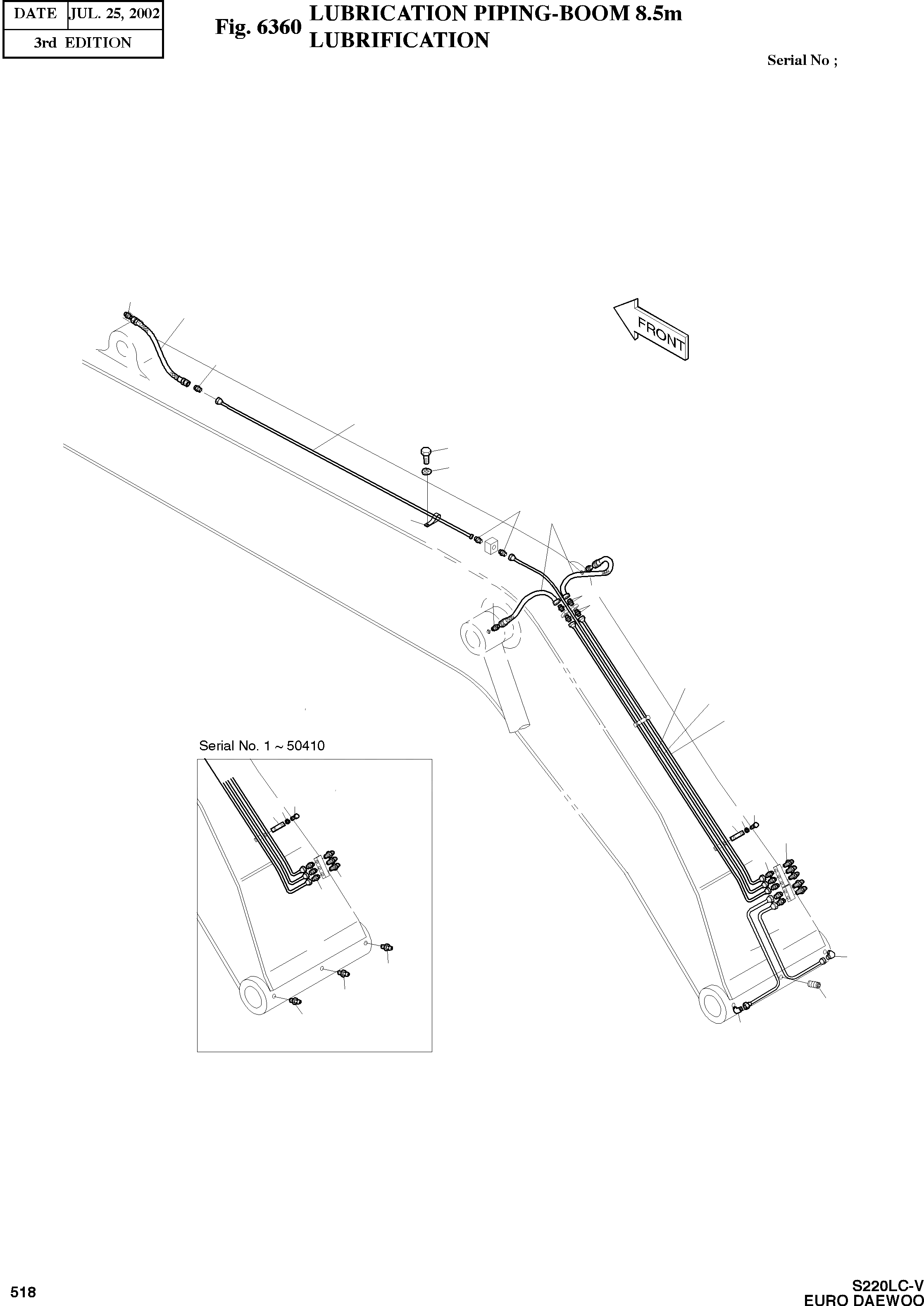

Запчасти Doosan Daewoo LUBRICATION PIPING-BOOM 8.5M OPTION PARTS

-

2400-2049

LUBRICATION PIP.- BOOM8.5m

SC: D

-2шт.

1

2124-1625

CLAMP;PIPE

desc: ATTACHE DE TUYAU

2шт.

2

2140-1259A

PIPE

SERIAL: 1-50410

1шт.

2

2140-1259B

PIPE

SERIAL: 50411

1шт.

3

2140-1576

PIPE

SERIAL: 1-50410

1шт.

3

2140-1576A

PIPE

SERIAL: 50411

1шт.

4

2140-1261A

PIPE

SERIAL: 1-50410

1шт.

4

2140-1261B

PIPE

SERIAL: 50411

1шт.

5

2181-1184

ADAPTER;M14X1.5-PT1/4

desc: RACCORD

7шт.

6

S0511553

BOLT;M10X1.5X14

desc: BOULON A 6 PANS

7шт.

7

2181-1110D1

ADAPTER;PF1/4-PT1/4

desc: RACCORD

2шт.

8

2184-1045D64

HOSE;1/4-920L

desc: TUYAU FLEXIBLE

2шт.

9

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

7шт.

10

2181-1110D30

ADAPTER;PF1/4-PT1/8

desc: RACCORD

3шт.

11

S6710052

NIPPLE;GREASE-PT1/4

SERIAL: 1-50410

3шт.

11

S6710052

NIPPLE;GREASE-PT1/4

SERIAL: 50411

5шт.

12

S6710102

NIPPLE;GREASE-PT1/8

SERIAL: 1-50410

3шт.

12

2181-1925

ELBOW

SERIAL: 50411

2шт.

13

2140-1577

PIPE

desc: TUYAU FLEXIBLE

1шт.

14

2124-1353D1

CLIP

desc: ATTACHE

3шт.

15

2184-1026D68

HOSE;1/4-650L

desc: TUYAU FLEXIBLE

1шт.

16

2181-1923D9

ADAPTER;M14X1.5-PT1/4

desc: RACCORD

1шт.

17

S3424403

SEAT SCREW

SERIAL: 50411

1шт.

18

182-00062

PIPE

SERIAL: 50411

1шт.

19

182-00063

PIPE

SERIAL: 50411

1шт.
