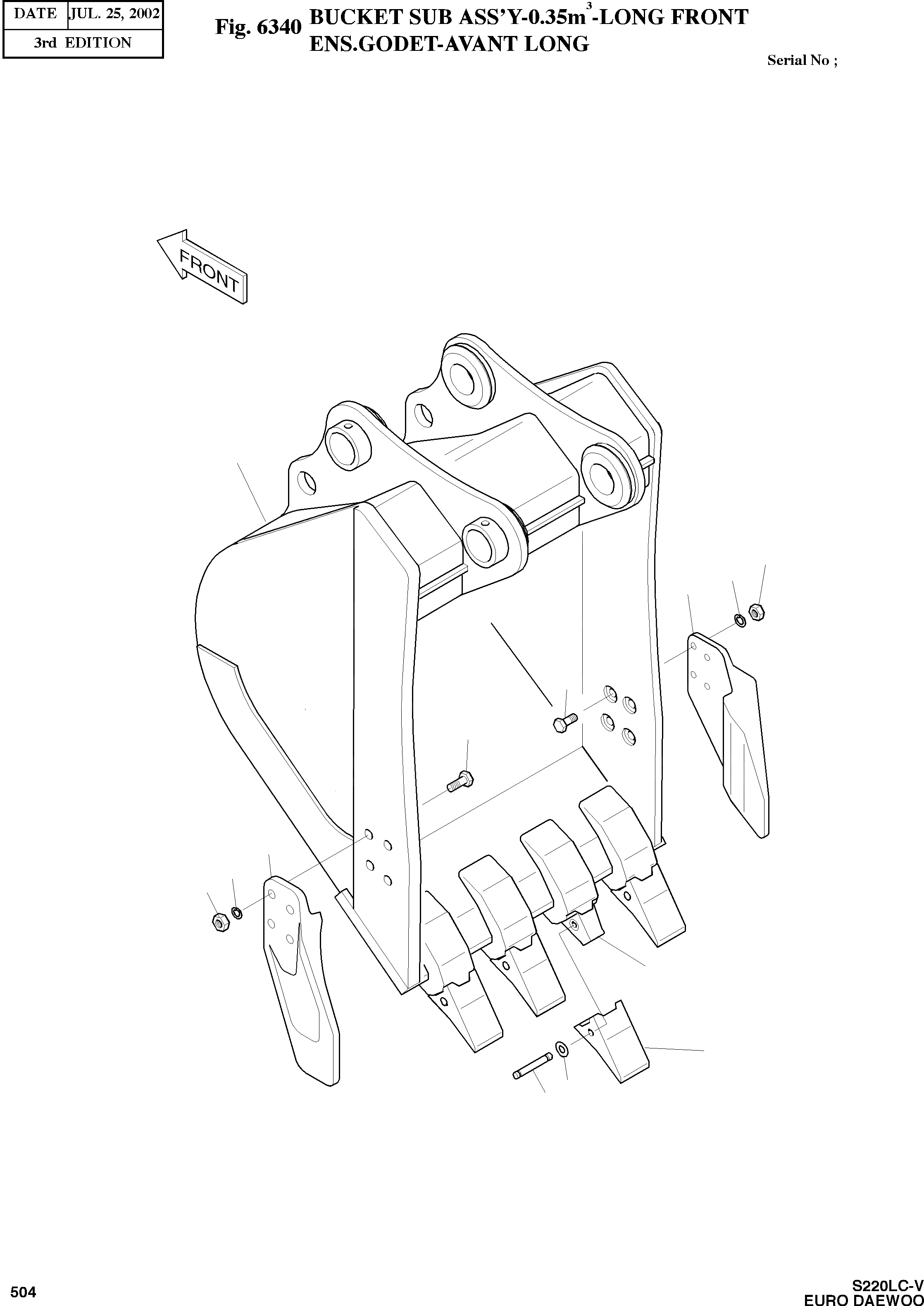

Запчасти Doosan Daewoo BUCKET SUB ASSY-0.35§©-LONG FRONT OPTION PARTS

-

2704-1380C

BUCKET SUB ASS'Y-0.35§©

ICA: Y

1шт.

-

2704-1380E

BUCKET SUB ASS'Y-0.35§©

ICA: Y

1шт.

-

2704-1380H

BUCKET SUB ASS'Y-0.35§©

SERIAL: 50431

1шт.

1

2704-1381B

BUCKET;WELD-0.35§©

SERIAL: 1-50430

1шт.

1

2704-1381G

BUCKET;WELD-0.35§©

SERIAL: 50431

1шт.

1A

2713-1222A

ADAPTER;TOOTH

desc: . RACCORD

4шт.

2

2713-1221A

POINT;TOOTH

desc: DENT

4шт.

3

2705-1022

PIN;TOOTH

desc: BROCHE DE BLOCAGE

4шт.

4

2114-1859

WASHER;LOCK

desc: RONDELLE

4шт.

5

2713-1228

CUTTER;SIDE(R)

desc: COUTEAU LATERAL

1шт.

5

2713-1228A

CUTTER;SIDE(R)

desc: COUTEAU LATERAL

1шт.

6

2713-1229

CUTTER;SIDE(L)

desc: COUTEAU LATERAL

1шт.

6

2713-1229A

CUTTER;SIDE(L)

desc: COUTEAU LATERAL

1шт.

7

S0570061

BOLT M20X2.5X60

desc: BOULON A 6 PANS

8шт.

7

S0574561

BOLT M24X3.0X60

desc: BOULON A 6 PANS

8шт.

8

S4013133

NUT M20X2.5

desc: ECROU

8шт.

8

S4013333

NUT M24X3.0

desc: ECROU

8шт.

9

S5103101

WASHER;SPIRNG M20

ICA: Y

8шт.

9

2114-9012

WASHER;SPIRNG M20

desc: RONDELLE GROWER M20

8шт.

9

2114-1831

WASHER;SPIRNG

SERIAL: 50431

8шт.
