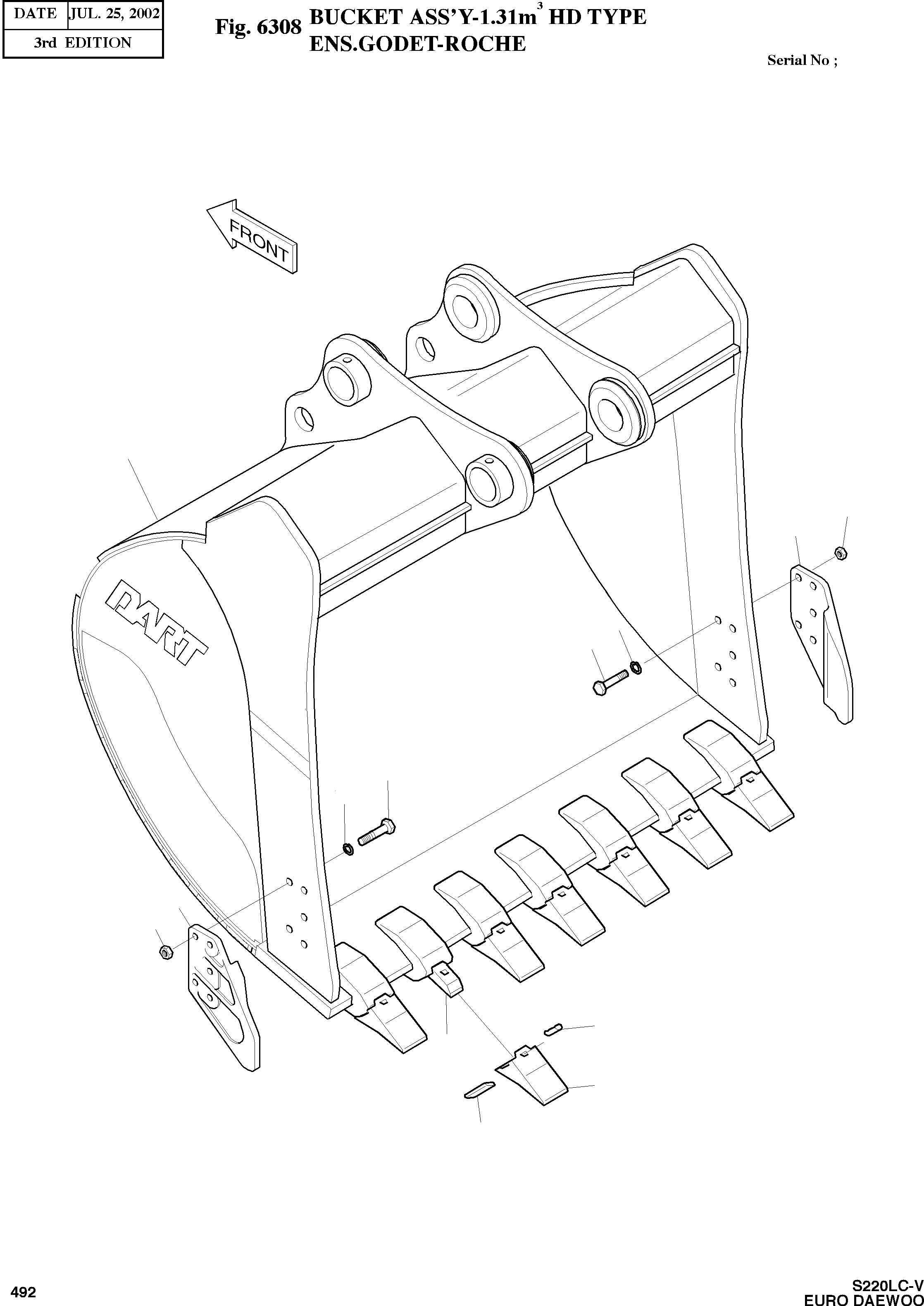

Запчасти Doosan Daewoo BUCKET ASSY-1.31§© HD TYPE OPTION PARTS

-

2704-1684

BUCKET ASS'Y-1.31§© H.D TYPE

desc: ENSEMBLE GODET

1шт.

1

2704-1685

BUCKET 1.31§© H.D TYPE

desc: GODET

1шт.

1A

2713-6078

ADAPTER;TOOTH

desc: . ADAPTATEUR

7шт.

2

2713-9056

POINT;TOOTH

desc: DENT

7шт.

3

2705-6034

PIN;LOCKING

desc: BROCHE DE BLOCAGE

7шт.

4

2705-6033

RUBBER;LOCK

desc: CAOUTCHOUC

7шт.

5

2713-1059

CUTTER;SIDE(R)

SERIAL: 1-50450

1шт.

5

2713-1059A

CUTTER;SIDE(R)

SERIAL: 50451

1шт.

6

2713-1260

CUTTER;SIDE(L)

SERIAL: 1-50450

1шт.

6

2713-1260A

CUTTER;SIDE(L)

SERIAL: 50451

1шт.

7

S0570361

BOLT M20X1.5X70

SERIAL: 1-50450

10шт.

7

S0574861

BOLT M24X3.0X75

SERIAL: 50451

10шт.

8

S4013133

NUT M20X2.5

SERIAL: 1-50450

10шт.

8

S4013333

NUT M24X3.0

SERIAL: 50451

10шт.

9

2114-9012

WASHER;HARDEN M20

SERIAL: 1-50450

10шт.

9

2114-1831

WASHER;HARDEN

SERIAL: 50451

10шт.
