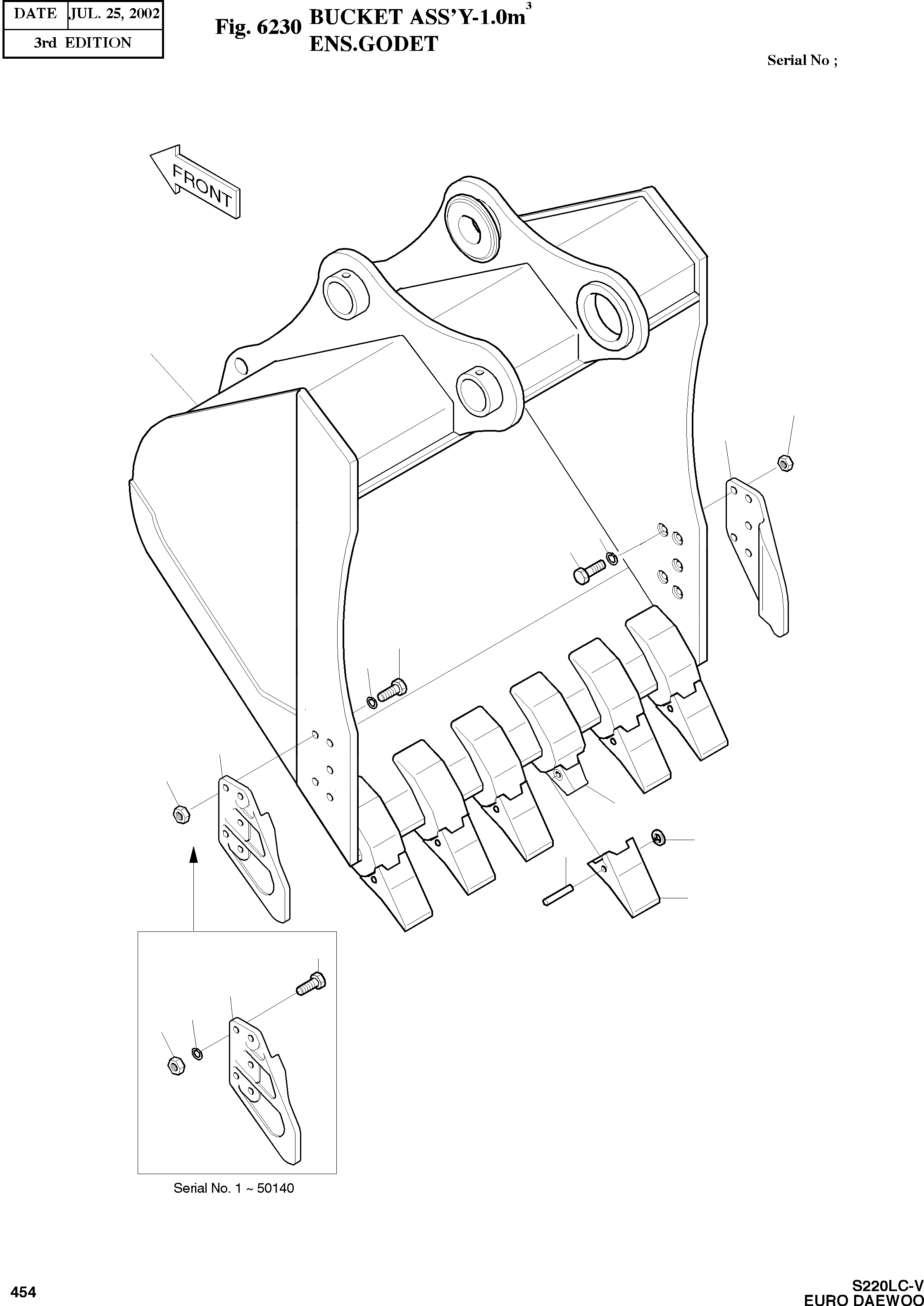

Запчасти Doosan Daewoo BUCKET ASSY-1.0§© OPTION PARTS

-

2704-1394

BUCKET ASS'Y-1.0§©

SERIAL: 1-50140

1шт.

-

2704-1394A

BUCKET ASS'Y-1.0§©

SERIAL: 50141-50430

1шт.

-

2704-1394B

BUCKET ASS'Y-1.0§©

SERIAL: 50431

1шт.

1

2704-1395

BUCKET-1.0§©

SERIAL: 1-50430

1шт.

1

2704-1395A

BUCKET-1.0§©

SERIAL: 50431

1шт.

1A

2713-1218

ADAPTER;TOOTH

desc: . ADAPTATEUR

6шт.

2

2713-1217

POINT;TOOTH

desc: DENT

6шт.

3

2705-1020

PIN;LOCKING

desc: BROCHE DE BLOCAGE

6шт.

4

2114-1848A

WASHER;LOCK

desc: RONDELLE D'ARRET

6шт.

5

2713-1059

CUTTER;SIDE(R)

SERIAL: 1-50430

1шт.

5

2713-1059A

CUTTER;SIDE(R)

SERIAL: 50431

1шт.

6

2713-1060

CUTTER;SIDE(L)

SERIAL: 1-50430

1шт.

6

2713-1060A

CUTTER;SIDE(L)

SERIAL: 50431

1шт.

7

S0570261

BOLT M20X2.5X70

SERIAL: 1-50430

10шт.

7

S0574761

BOLT M24X3.0X70

SERIAL: 50431

10шт.

8

S4013133

NUT M20X2.5

SERIAL: 1-50430

10шт.

8

S4013333

NUT M24X3.0

SERIAL: 50431

10шт.

9

S5103101

WASHER;SPRING M20

SERIAL: 1-50140

10шт.

9

2114-9012

WASHER;HARDEN M20

SERIAL: 50141-50430

10шт.

9

2114-1831

WASHER;HARDEN

SERIAL: 50431

10шт.
