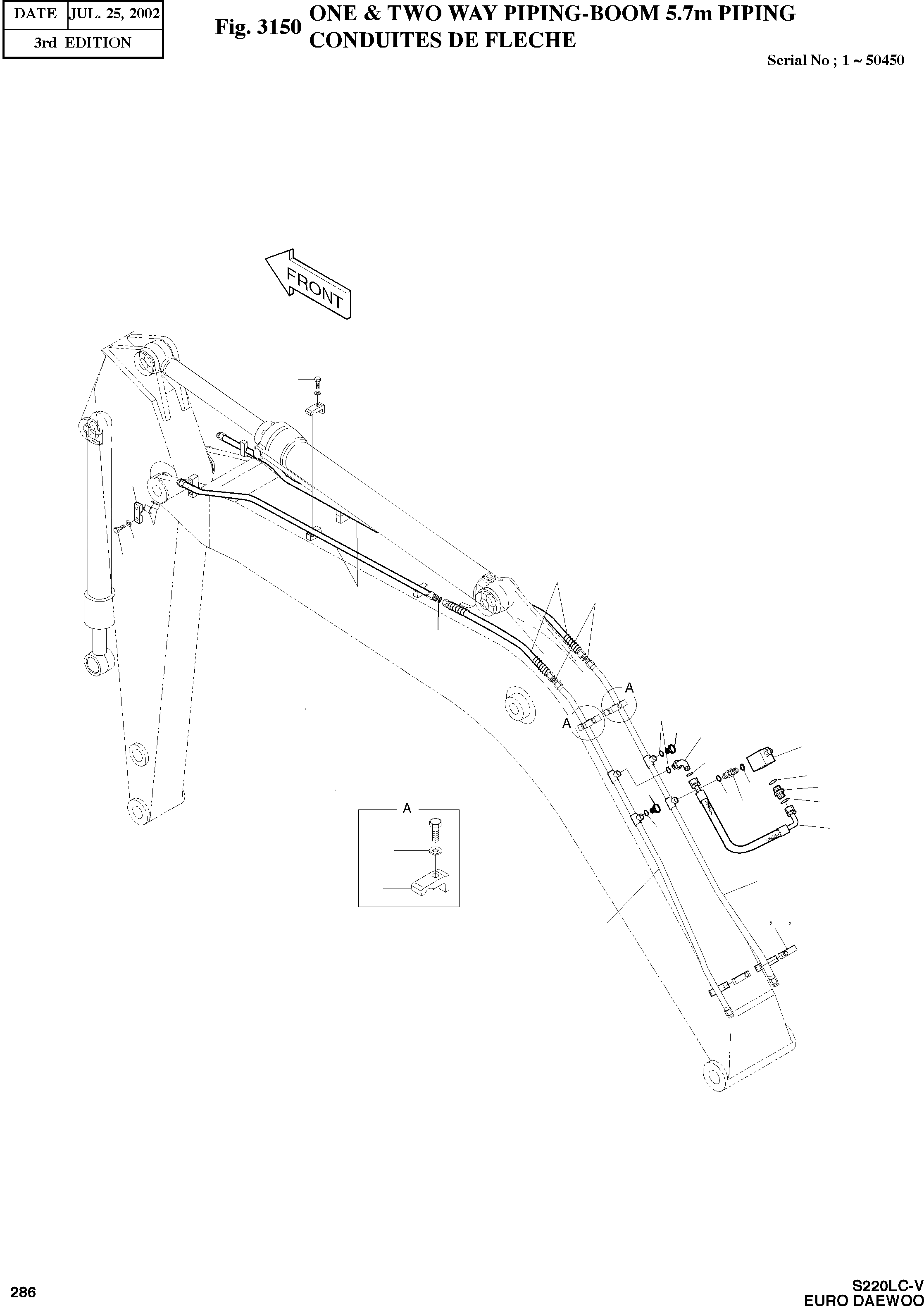

Запчасти Doosan Daewoo ONE & TWO WAY PIPING-BOOM 5.7M PIPING FRONT PARTS

-

2400-2131

ONE/TWO-WAY PIPING - BOOM 5.7m PIPING

SERIAL: 1-50450

-2шт.

1

2140-1672

PIPE

desc: TUYAU

1шт.

2

2140-1673

PIPE

desc: TUYAU

1шт.

3

2140-1674A

PIPE

desc: TUYAU

2шт.

4

2184-1196D132

HOSE;1-950L

desc: TUYAU FLEXIBLE

2шт.

5

S8000291

O-RING

desc: JOINT TORIQUE

6шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

6шт.

7

2124-1026D3

CLAMP;PIPE

desc: COLLIER

8шт.

8

S0560953

BOLT M12X1.75X60

desc: BOULON A 6 PANS

12шт.

9

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER

12шт.

10

2124-1696

CLAMP;PIPE

desc: COLLIER

2шт.

11

2161-2267A

RUBBER

desc: CAOUTCHOUC

4шт.

12

2181-2815D1

ELBOW;PF(0)1XUNF1 7/16-12

desc: COUDE

1шт.

13

2181-4133D6

ADAPTER;PF(0)1XUNF1 7/16-12

desc: RACCORD

1шт.

14

2420-9627

VALVE;RELIEF

desc: VANNE

1шт.

15

2181-2818

ADAPTER;2XPF(0)1

desc: RACCORD

1шт.

16

2181-1950D9

PLUG

desc: BRANCHEMENT

2шт.

17

2184-1197D87

HOSE-670L

desc: TUYAU FLEXIBLE

1шт.
