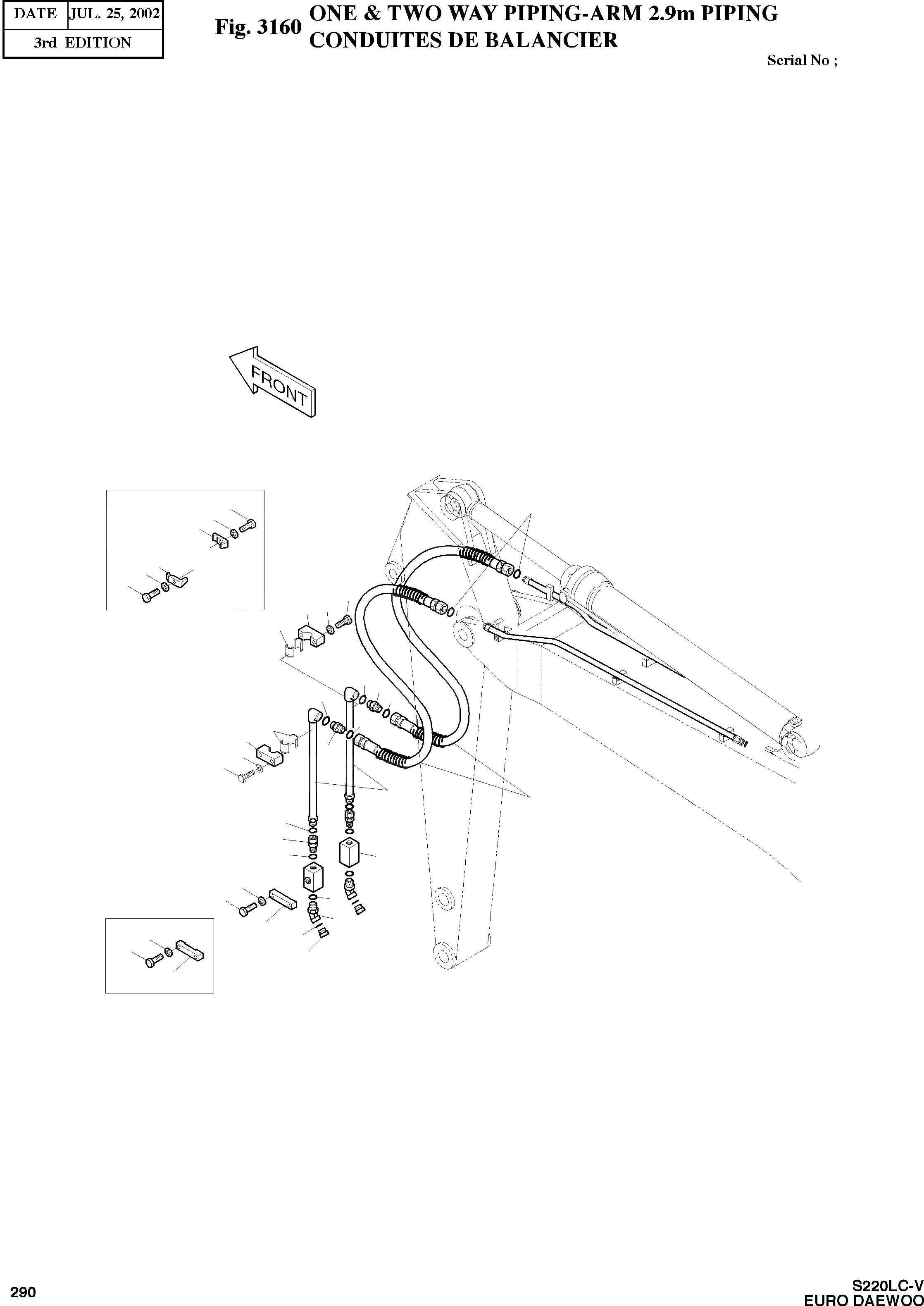

Запчасти Doosan Daewoo ONE & TWO WAY PIPING-ARM 2.9M PIPING FRONT PARTS

-

2400-2136

STD. ARM PIPING;ONE & TWO WAY

SC: D

-2шт.

1

2140-1677

PIPE;OPTION

desc: TUYAU

2шт.

1

140-00696

PIPE;OPTION

desc: TUYAU

2шт.

2

2184-1196D76

HOSE PF1-1900L

desc: TUYAU FLEXIBLE

2шт.

2

2184-1196D162

HOSE PF1-2050L

desc: TUYAU FLEXIBLE

2шт.

3

S8000291

O-RING

desc: JOINT TORIQUE

6шт.

4

S8030161

O-RING

desc: JOINT TORIQUE

8шт.

5

2124-1026D3

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

5

2124-1696

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

6

S0560953

BOLT M12X1.75X60

desc: BOULON A 6 APNS

4шт.

6

S0560953

BOLT M12X1.75X60

desc: BOULON A 6 APNS

8шт.

7

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

8шт.

7

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

12шт.

8

2420-9628

VALVE;STOP

desc: VANNE

2шт.

9

2124-1695

CLAMP;STOP VALVE

desc: ATTACHE DE VANNE

2шт.

9

124-00178

CLAMP;STOP VALVE

desc: ATTACHE DE VANNE

2шт.

10

2181-2566D8

ADAPTER;UNION

desc: RACCORD ADAPTATEUR

2шт.

11

2181-2816D2

ELBOW

desc: ECROU

2шт.

12

2181-2817D2

CAP

desc: CHAPEAU

2шт.

13

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

14

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

4шт.

15

2161-2251A

RUBBER

desc: CAOUTCHOUC

8шт.
