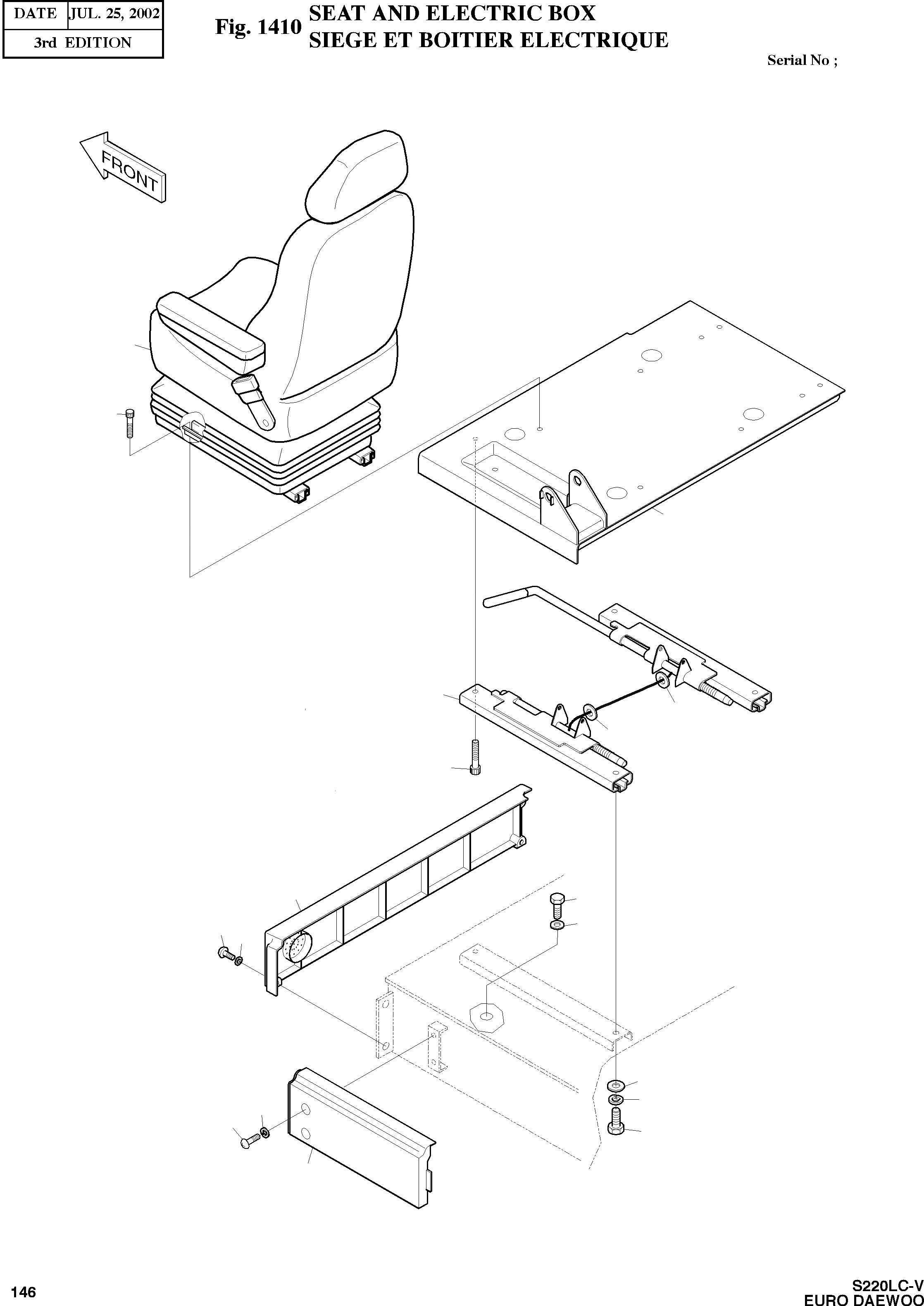

Запчасти Doosan Daewoo SEAT AND ELECTRIC BOX BODY PARTS

-

2197-1825F2B

CONTROL STAND ASS'Y

SERIAL: 1-50120

-2шт.

-

2197-1825F2C

CONTROL STAND ASS'Y

SERIAL: 50121-50180

-2шт.

-

2197-1825F2G

CONTROL STAND ASS'Y

SERIAL: 50181-50290

-2шт.

-

197-00029F2A

CONTROL STAND ASS'Y

SERIAL: 50291-50330

-2шт.

-

2197-1825F2H

CONTROL STAND ASS'Y

SERIAL: 50331-50620

-2шт.

-

2197-1825F2K

CONTROL STAND ASS'Y

SERIAL: 50621

-2шт.

2

2194-9005B

RAIL;SEAT

SERIAL: 1-50510

1шт.

2

2194-9005C

RAIL;SEAT

SERIAL: 50511

1шт.

3

2901-9026

SEAT

SERIAL: 1-50180

1шт.

3

2901-9034

SEAT

SERIAL: 50181

1шт.

4

2901-1078B

SEAT PLATE ASS'Y

SERIAL: 1-50180

1шт.

4

2901-1078C

SEAT PLATE ASS'Y

SERIAL: 50181-50330

1шт.

4

2901-1078E

SEAT PLATE ASS'Y

SERIAL: 50331

1шт.

21

2621-3743

COVER;BOX(FRONT)

desc: COUVERCLE

1шт.

22

2120-2166D7

SCREW

desc: BOULON A 6 PANS

6шт.

23

2114-1898D3

WASHER

desc: RONDELLE

6шт.

24

2621-3870

COVER;BOX(LH)

desc: COUVERCLE

1шт.

28

S0514853

BOLT M12X1.75X20

desc: BOULON A 6 PANS

4шт.

32

2120-2166D5

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER

4шт.

34

S5020513

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

37

2114-1898D4

WASHER

desc: RONDELLE

2шт.

39

S2208761

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

47

2114-1058D46

WASHER

desc: RONDELLE

4шт.
