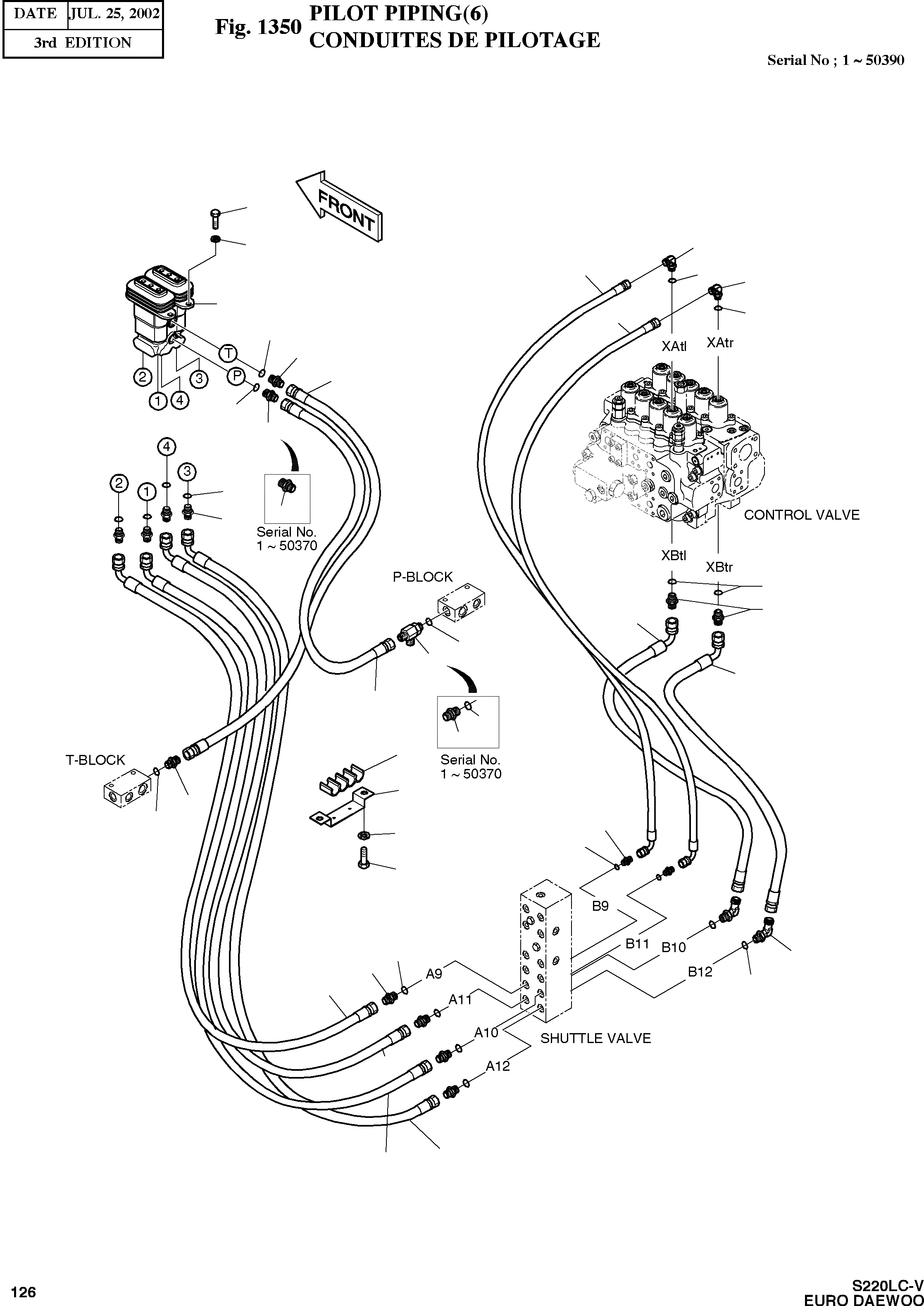

Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

2400-1787A

PILOT PIPING

SC: D

-2шт.

-

2400-1787B

PILOT PIPING

SC: D

-2шт.

5

2420-9501A

VALVE;PEDAL

desc: VANNE

1шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

3шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

3шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

6шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

10шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

27

2181-1126D14

ADAPTER

SERIAL: 1-50370

3шт.

27

2181-1126D14

ADAPTER

SERIAL: 50371

4шт.

28

2181-1126D7

ADAPTER

desc: RACCORD

4шт.

30

2181-1126D36

ADAPTER

SERIAL: 1-50370

4шт.

30

2181-1126D36

ADAPTER

SERIAL: 50371

3шт.

31

2181-1126D89

ADAPTER

desc: RACCORD

4шт.

36

2181-1702D10

ELBOW

desc: COUDE

2шт.

40

2181-1951D7

TEE PFO3/8-2PF1/4

SERIAL: 50371

1шт.

45

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

63

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

63

2184-1045D174

HOSE PF1/4-330L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D227

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

66

2184-1046D227

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D227

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D227

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1046D32

HOSE PF1/4-480L

desc: TUYAU FLEXIBLE

1шт.

81

2184-1046D132

HOSE PF1/4-590L

desc: TUYAU FLEXIBLE

1шт.

82

2184-1046D142

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

83

2184-1046D53

HOSE PF1/4-730L

desc: TUYAU FLEXIBLE

1шт.

115

2471-1133

FILTER;ADAPTER

SERIAL: 1-50370

1шт.

122

2181-2419D1

ELBOW

desc: COUDE

2шт.

125

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

4шт.

126

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE M10

4шт.
