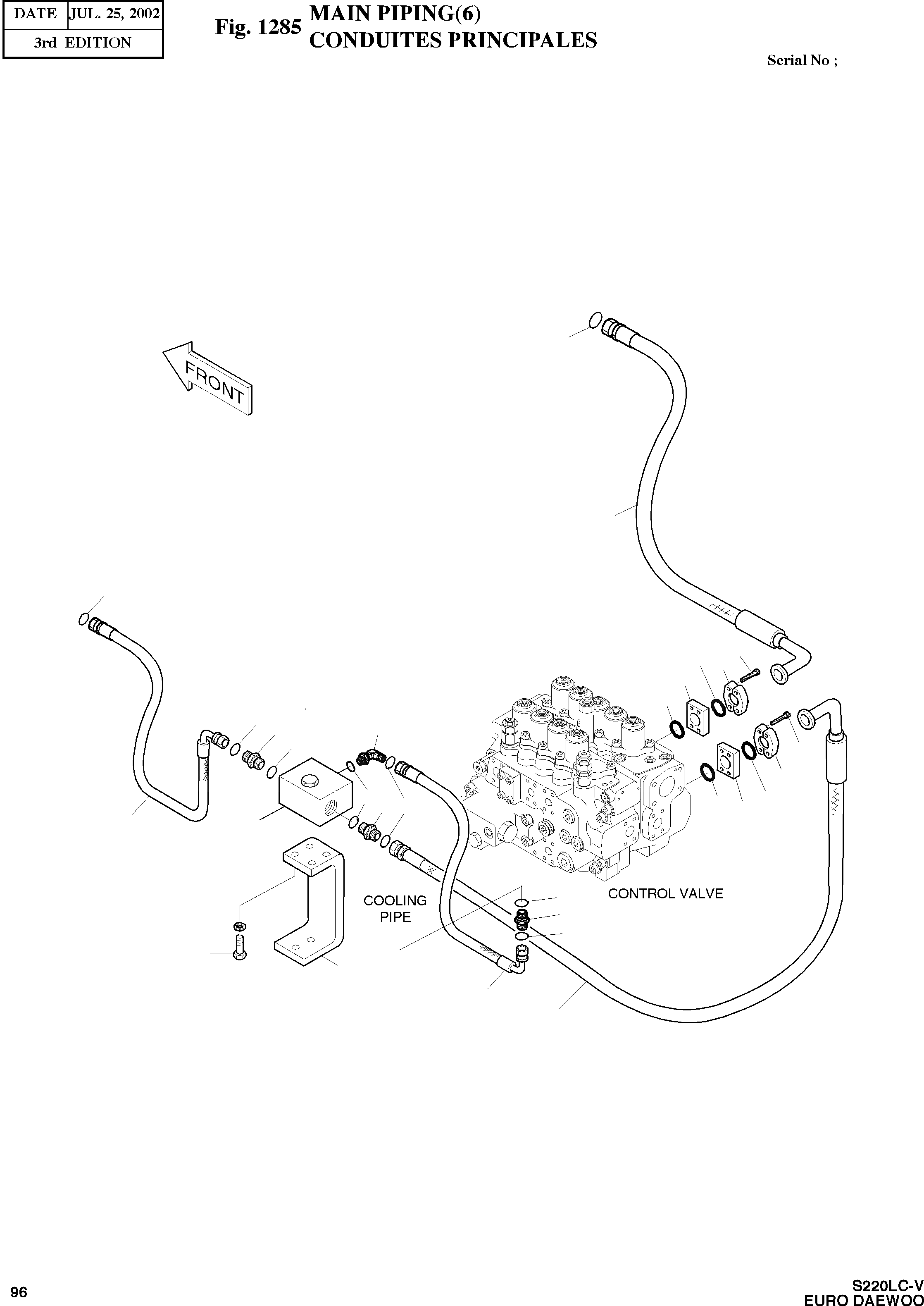

Запчасти Doosan Daewoo MAIN PIPING(6) BODY PARTS

-

2400-2130

ONE/TWO-WAY PIPING - MAIN PIPING

desc: CONDUITES PRINCIPALES

-2шт.

1

2420-9633

VALVE;SWITCH

desc: VANNE

1шт.

2

2197-2673

BRACKET

desc: SUPPORT

1шт.

3

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER

4шт.

5

2181-4133D6

ADAPTER;PF0 - UNF1 7/16-12

desc: RACCORD

3шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

6шт.

7

S8000291

O-RING

desc: JOINT TORIQUE

4шт.

8

2181-2815D1

ELBOW

desc: COUDE

1шт.

9

2181-9078

FLANGE

desc: FLASQUE

4шт.

10

2181-2614

BLOCK SPACER SAE1-40mm

desc: BLOC

2шт.

11

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

12

S2213061

BOLT;SOCKET M10X1.75X70

desc: BOULON A 6 PANS CREUX

8шт.

13

2184-1197D85

HOSE;650L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1200D46

HOSE;1700L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1200D52

HOSE;1450L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1200D47

HOSE;1750L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1197D86

HOSE;1700L

desc: TUYAU FLEXIBLE

1шт.
