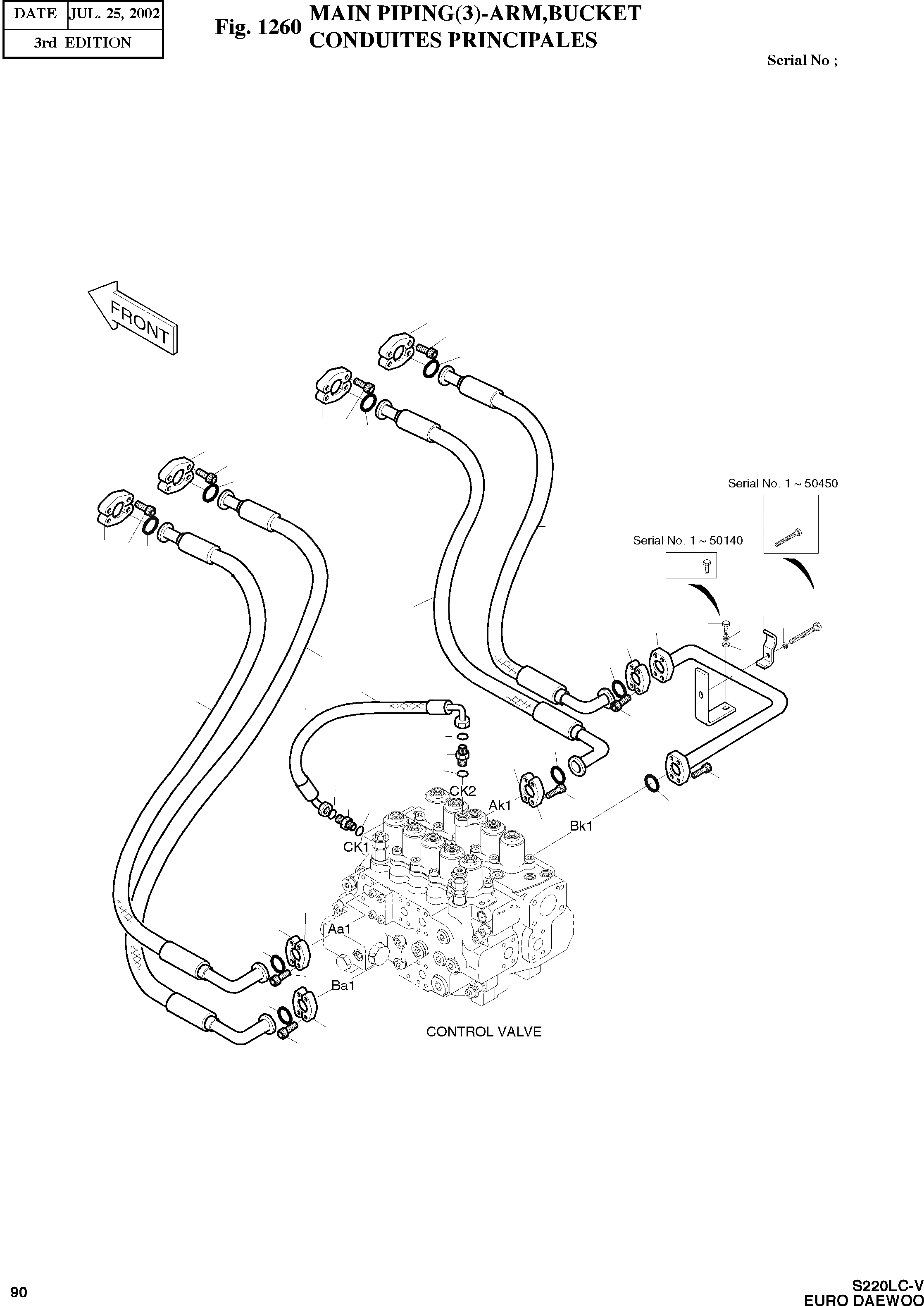

Запчасти Doosan Daewoo MAIN PIPING(3)-ARM.BUCKET BODY PARTS

-

2400-1759A

MAIN PIPING

SERIAL: 1-50210

-2шт.

-

2400-1759B

MAIN PIPING

SERIAL: 50211-50450

-2шт.

-

9400-1092B

MAIN PIPING

SERIAL: 50451

-2шт.

12

2184-1250D36

HOSE;1500L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1250D21

HOSE;1700L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1250D22

HOSE;1550L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1250D23

HOSE;1550L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1198D30

HOSE;520L

desc: TUYAU FLEXIBLE

1шт.

19

S0515353

BOLT M12X1.75X35

SERIAL: 1-50140

1шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER

2шт.

21

2140-1205

PIPE

desc: TUYAU

1шт.

22

2197-1411B

BRACKET

desc: SUPPORT

1шт.

23

2124-1026D3

CLAMP;PIPE

desc: ATTACHE DE TUBE

1шт.

24

S0561053

BOLT M12X1.75X65

SERIAL: 1-50450

1шт.

28

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1-50540

36шт.

28

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 50541

32шт.

29

2180-1026D19

O-RING

desc: JOINT TORIQUE

5шт.

30

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

6шт.

32

S2212361

BOLT;SOCKET;M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

33

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

34

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

36

2181-4133D3

ADAPTER;PF0 1/2-UNF1 3/16

desc: RACCORD

2шт.

37

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

39

2181-9083

FLANGE;SPLIT

desc: FLASQUE

2шт.

43

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

45

S5010713

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.

48

S0515453

BOLT M12X1.75X40

SERIAL: 50141

1шт.

59

S0561363

BOLT M12X1.75X80

SERIAL: 50451

1шт.
