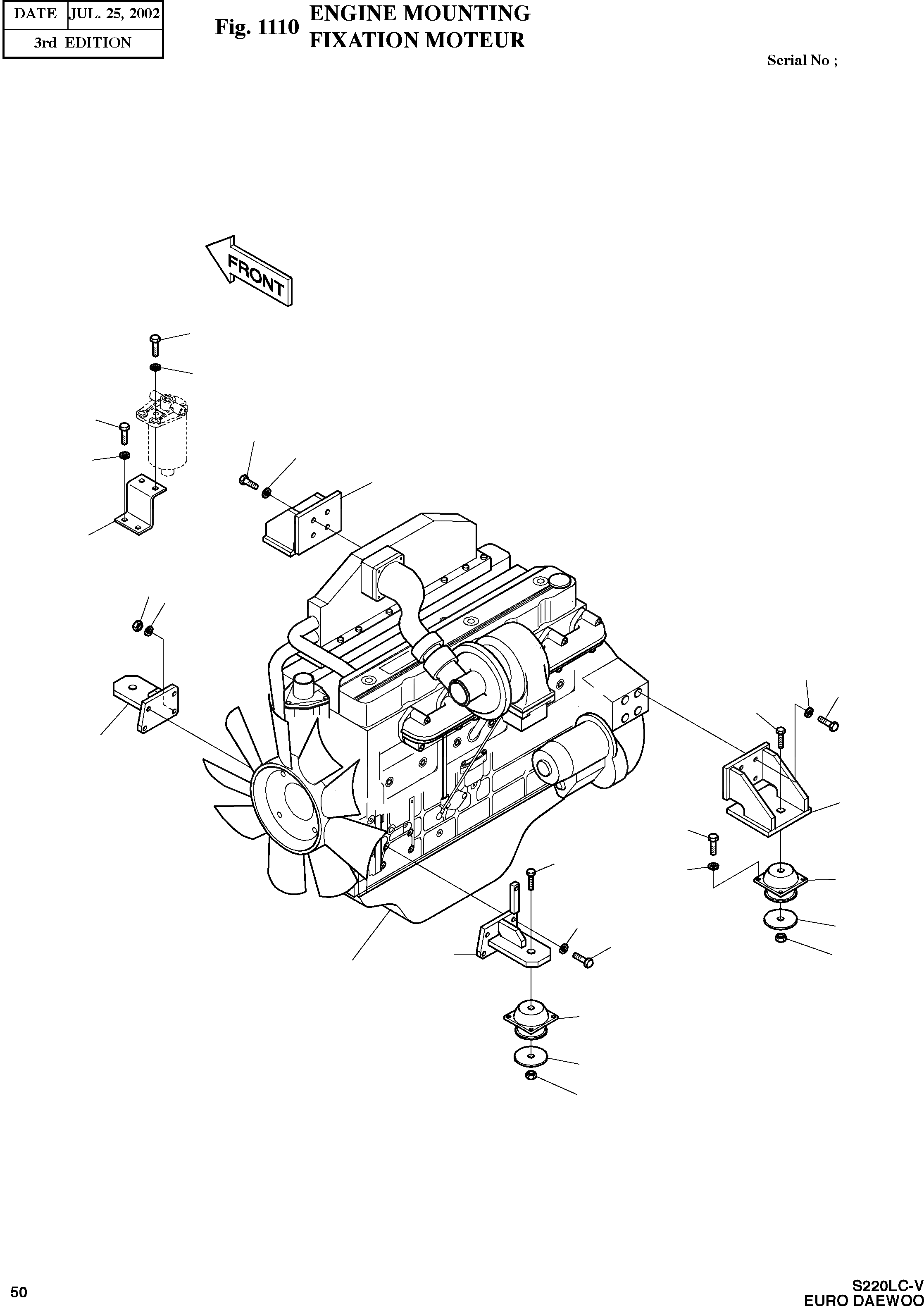

Запчасти Doosan Daewoo ENGINE MOUNTING BODY PARTS

-

2201-1067A

ENGINE ASS'Y

SC: D

-2шт.

1

2201-9056

ENGINE DB58TI

desc: MOTEUR

1шт.

11

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

8шт.

29

2197-1399A

BRACKET

desc: SUPPORT

1шт.

30

2197-1400A

BRACKET

desc: SUPPORT

1шт.

31

S0786253

BOLT M12X1.5X30

desc: BOULON A 6 PANS

8шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER

8шт.

33

2161-9405

RUBBER;ENGINE MOUNT

desc: SILENT BLOC

2шт.

34

2161-9404

RUBBER;ENGINE MOUNT

desc: SILENT BLOC

2шт.

35

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

18шт.

36

2114-4024

WASHER;BUMP

SERIAL: 1-50180

4шт.

36

2114-4024A

WASHER;BUMP

SERIAL: 50181

4шт.

37

S0766666

BOLT M16X1.5X120

desc: BOULON A 6 PANS

4шт.

38

S4032933

NUT M16X1.5

SERIAL: 1-50310

4шт.

38

121-00035

NUT LOCK

SERIAL: 50311

4шт.

39

2197-1381A

BRACKET

desc: SUPPORT

1шт.

40

2197-1382A

BRACKET

desc: SUPPORT

1шт.

41

S0712253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

7шт.

42

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

20шт.

46

2891-1373

PLATE

desc: PLAQUE

1шт.

47

S4032633

NUT

desc: ECROU

1шт.

48

S0558253

BOLT

desc: BOULON A 6 PANS

2шт.
