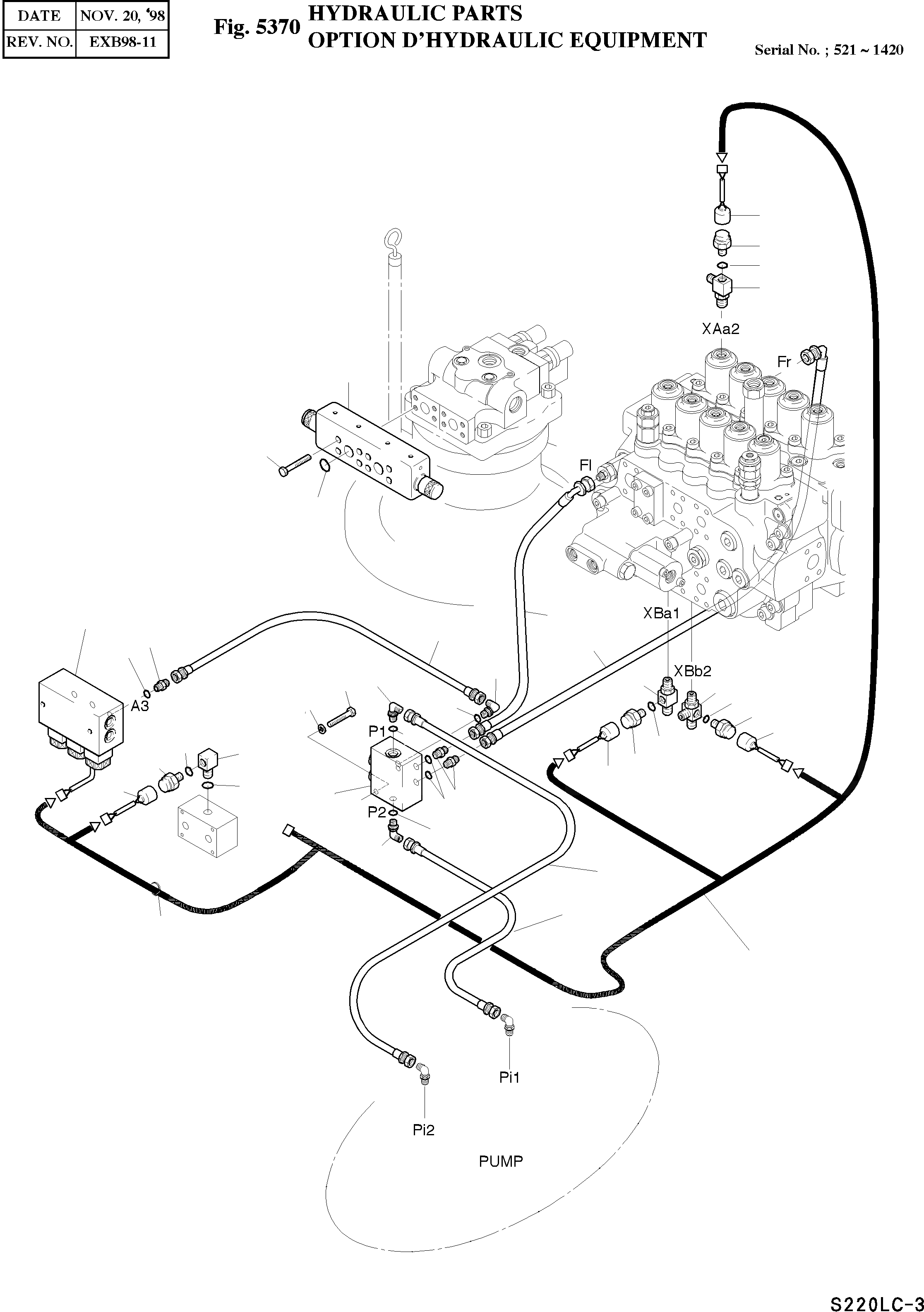

Запчасти Doosan Daewoo HYDRAULIC PARTS OPTION PARTS

-

2400-1674

HYDRAULIC PARTS

SERIAL: 521-1420

-2шт.

1

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

2

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1046D206

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1046D142

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1045D128

HOSE PF1/4-1080L

desc: TUYAU FLEXIBLE

1шт.

6

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

7

2420-9361

VALVE;STOP 3-PCS

desc: VANNE

1шт.

8

2420-9363

VALVE;SHUTTLE

desc: VANNE

1шт.

9

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

10

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

11

2181-2263A

ADAPTER PF1/4

desc: RACCORD ADAPTATEUR

1шт.

12

2181-2296

ELBOW PF1/4

desc: COUDE

1шт.

13

2549-1135D4

SWITCH;PRESSURE 10bar

desc: INTERRUPTEUR

4шт.

14

2420-9362

VALVE;REACTIONLESS 2KAR6P72/165-711

desc: VANNE

1шт.

15

S8010301

O-RING JISB2401 G30

desc: JOINT TORIQUE

2шт.

16

S2213061

BOLT;SOCKET M10X1.5X70

desc: BOULON A 6 PANS CREUX

8шт.

17

S8000111

O-RING P11

REP_PNO: 8202-009

7шт.

18

2181-2553

ELBOW PF1/4

desc: COUDE

1шт.

19

2181-1702D4

ELBOW PF1/4

desc: COUDE

3шт.

20

S8180221

RING;SEAL

desc: BAGUE

4шт.

21

2530-1400

HARNESS;PRESS. SWITCH

desc: FAISCEAU

4шт.

22

2530-1526

HARNESS;HYD. PARTS

desc: FAISCEAU

1шт.

23

2124-1084D2

CLIP;BAND 150L

desc: CLIP

10шт.

24

2181-2383

TEE PF1/4

desc: TE

1шт.
