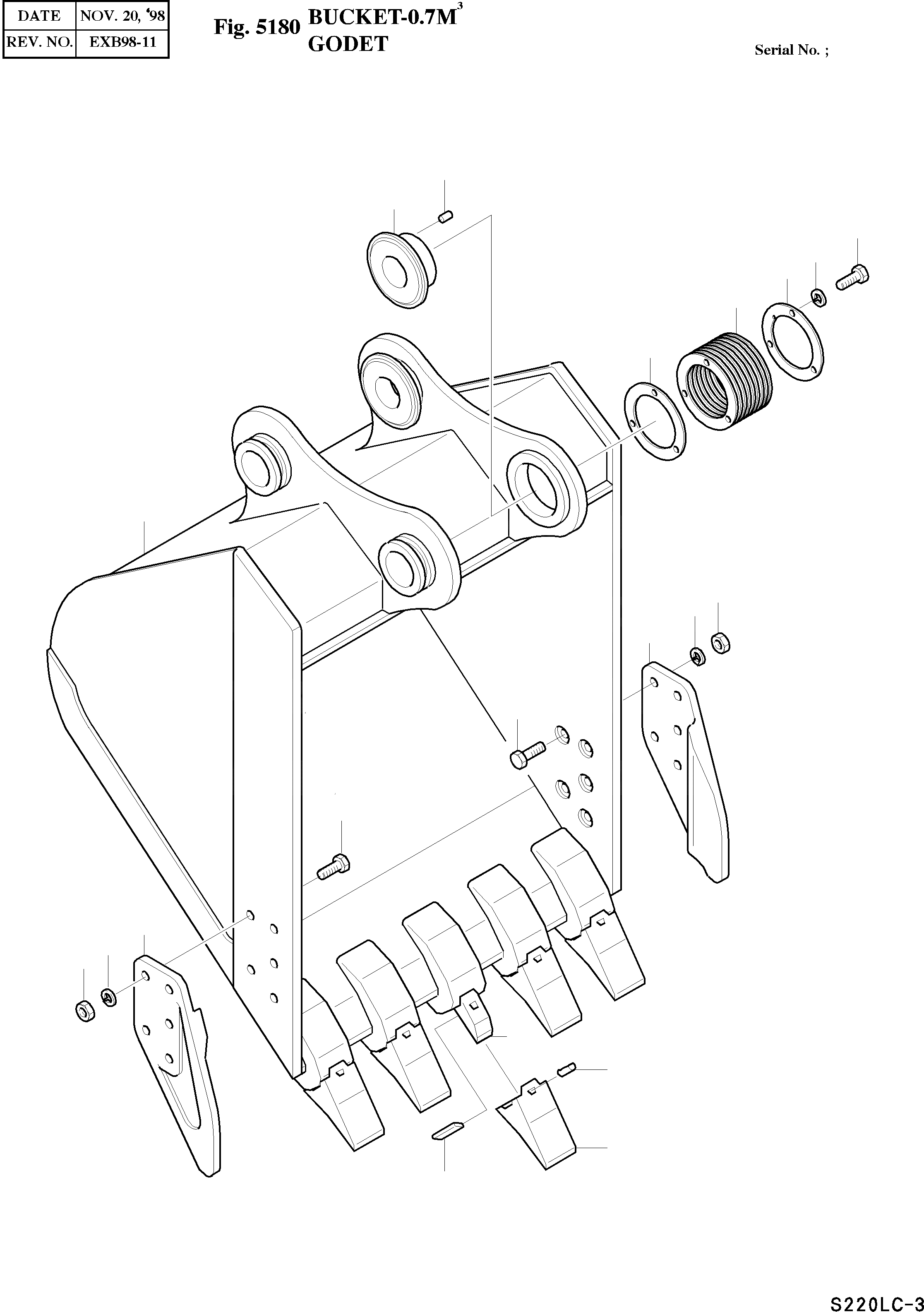

Запчасти Doosan Daewoo BUCKET-0.7M©ш OPTION PARTS

|$1

2704-7033

BUCKET ASS'Y-0.7§©

desc: ENSEMBLE GODET

1шт.

|$2

2704-1341D2

BUCKET ASS'Y-0.7§©

desc: ENSEMBLE GODET

1шт.

1

2704-1139A

BUCKET

desc: . GODET

1шт.

1

2704-1339D2

BUCKET

desc: . GODET

1шт.

1A

2713-1081

ADAPTER

desc: .. ADAPTATEUR

5шт.

2

2713-9029

POINT;TOOTH

desc: . DENT

5шт.

3

2705-1001B

PIN;TOOTH

desc: . BROCHE

5шт.

4

2705-1002B

LOCK;RUBBER

desc: . VERROU

5шт.

5

2713-1059

CUTTER;SIDE

desc: . COUTEAU LATERAL

1шт.

6

2713-1060

CUTTER;SIDE

desc: . COUTEAU LATERAL

1шт.

7

S0772461

BOLT M22X1.5X65

desc: . BOULON A 6 PANS

10шт.

8

S4037223

NUT M22X1.5

desc: . ECROU

10шт.

9

S5103202

WASHER;SPRING M22

desc: . RONDELLE ELASTIQUE

10шт.

10

2114-1378

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

11

2191-1771

PLATE

desc: PLAQUE

1шт.

12

2123-1107D2

PIN;LOCK

desc: BROCHE

1шт.

13

S0521661

BOLT M16X2.0X50

desc: BOULON A 6 PANS

3шт.

14

S5102903

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

3шт.

15

2114-1360

SHIM

desc: CALE

9шт.

16

2114-1361

SHIM

desc: CALE

1шт.
