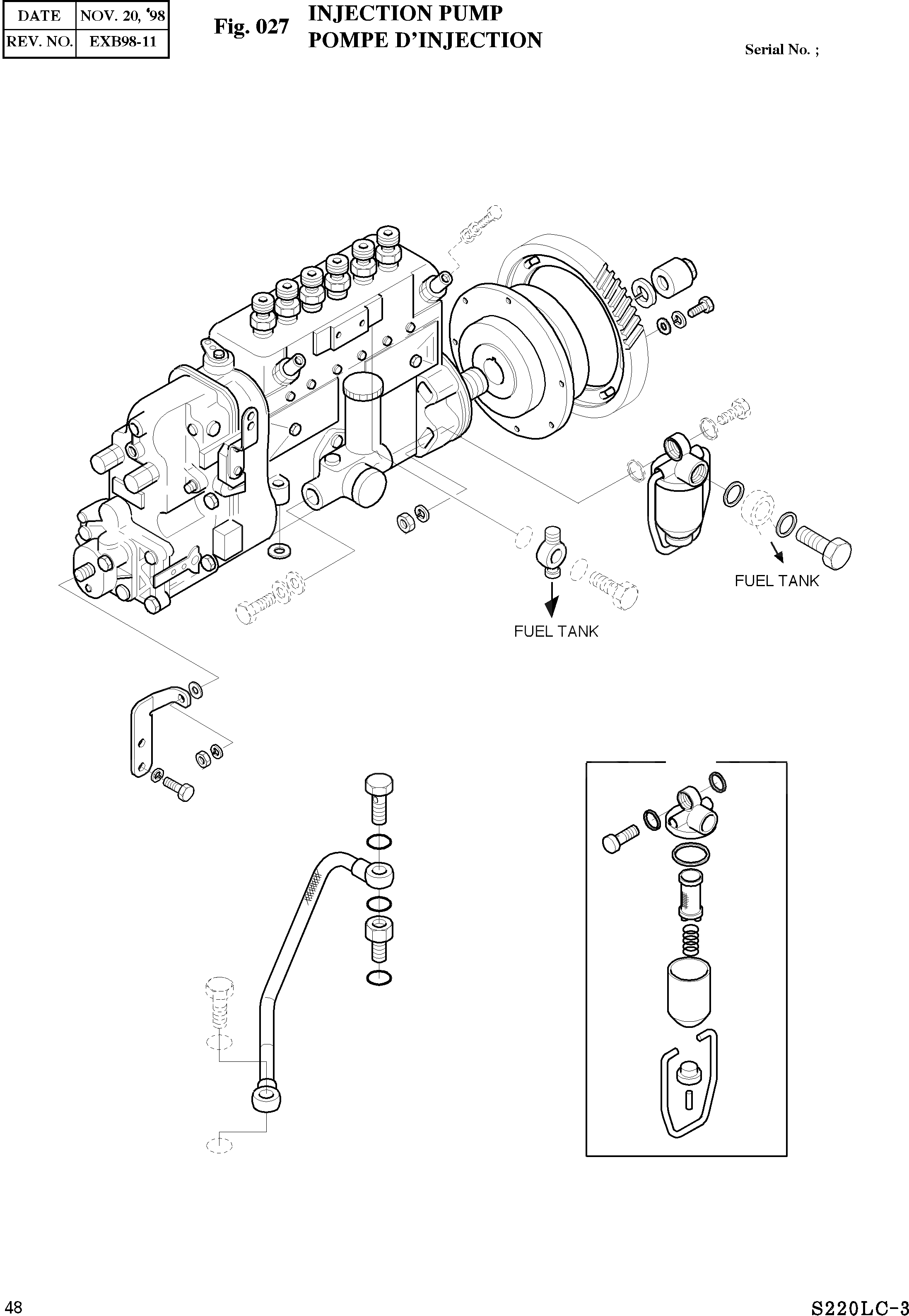

Запчасти Doosan Daewoo INJECTION PUMP ENGINE PARTS

1

65.11101-7244

PUMP;INJECTION

SERIAL: 9800036

1шт.

1

65.11101-7299

PUMP;INJECTION

SERIAL: 9800037

1шт.

3

06.78140-2404

SCREW;HOLLOW M14X1.5

desc: VIS

1шт.

4

06.56190-0706

RING;SEAL A14X20

desc: BAGUE

2шт.

5

65.98101-0008

DOUBLE BANJO UNION ASS'Y

desc: ENSEMBLE RACCORD BANJO DOUBLE

1шт.

6

06.15010-2312

WASHER 10.5

desc: RONDELLE 10.5

1шт.

7

06.01283-7215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

2шт.

7

06.01923-3215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

2шт.

8

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

3шт.

9

06.11063-9215

NUT;HEX. M10X1.25

desc: ECROU

1шт.

10

65.11401-0032

BRACKET;F.I.P

SERIAL: 500141

1шт.

10

65.11401-0037

BRACKET;F.I.P

SERIAL: 500142

1шт.

11

06.16731-2105

WASHER;SPRING A6

desc: RONDELLE ELASTIQUE

6шт.

12

65.90001-0042

BOLT;HEX

desc: BOULON A 6 PANS

6шт.

12

65.90001-6004

BOLT;HEX. M6X25

desc: BOULON A 6 PANS

6шт.

13

65.90710-0032

WASHER;PLAIN

desc: RONDELLE

6шт.

14

65.11301-0061

GEAR;DRIVE

desc: ENGRENAGE

1шт.

15

65.11106-6001

COUPLING I/P

desc: FIXATION DE POMPE

1шт.

16

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

4шт.

17

06.11063-8215

NUT;HEX. M10

desc: ECROU

4шт.

18

65.05701-0057

HOSE;OIL

desc: TUYAU FLEXIBLE

1шт.

19

65.98130-0029

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

20

65.98150-0028

SCREW;HOLLOW

desc: VIS

1шт.

21

06.56180-0714

RING;SEAL A10X15

desc: BAGUE

3шт.

22-1

65.12501-7019

FUEL STRAINER ASS'Y

desc: ENSEMBLE FILTRE A GAZOLE

1шт.

22

06.78140-2404

SCREW;HOLLOW A8

desc: . VIS

1шт.

23

06.56190-0706

RING;SEAL A14X20

desc: . BAGUE

2шт.

24

81.12903-0001

GASKET

SC: D

1шт.

25

81.12104-0003

STRAINER;FILTER

SC: D

1шт.

26

81.12102-0002

BOWEL;FILTER(GLASS)

SC: D

1шт.
