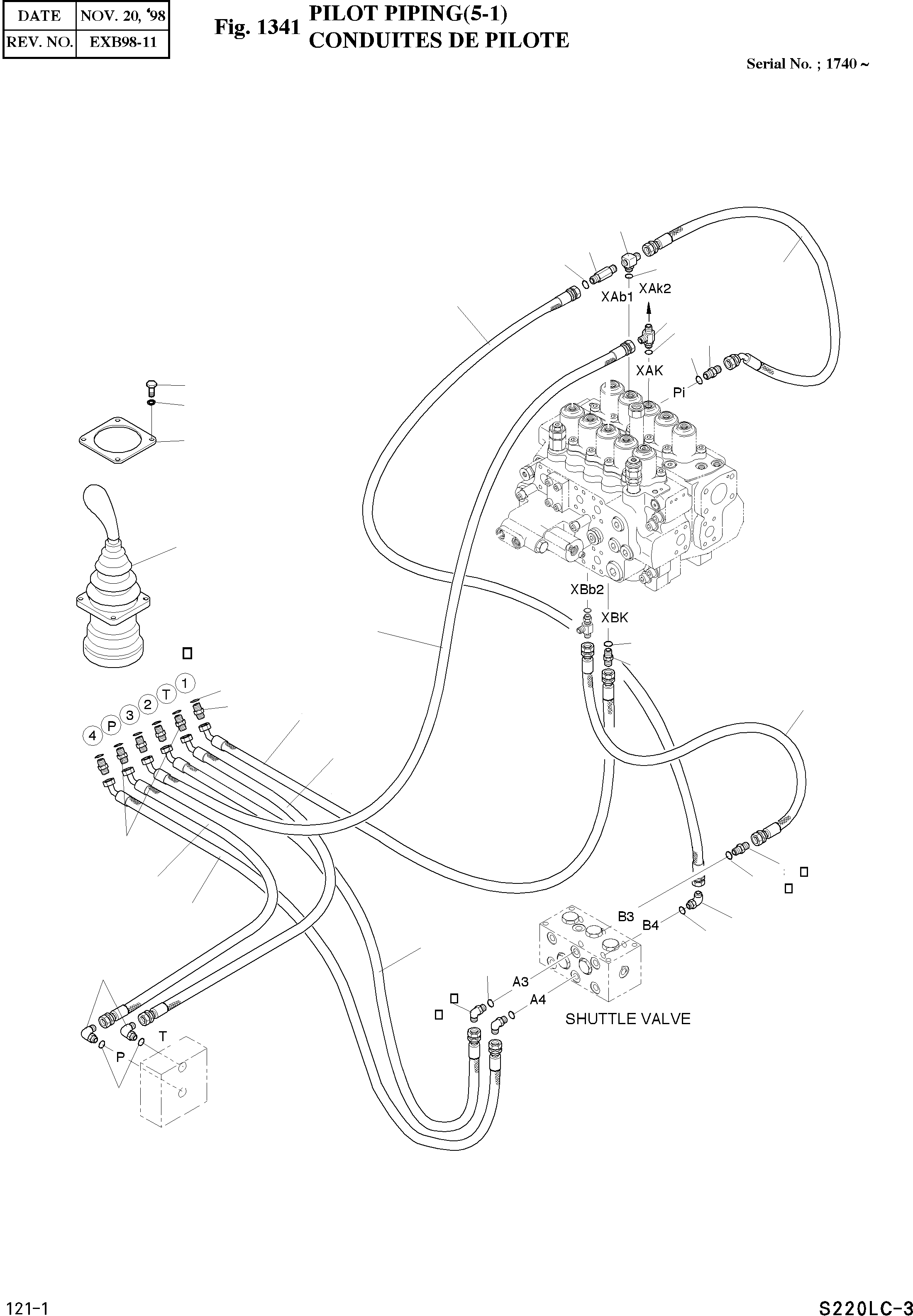

Запчасти Doosan Daewoo PILOT PIPING(5-1) BODY PARTS

-

2400-1878

PILOT PIPING

SERIAL: 1740

-2шт.

3

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

11

2420-9417

VALVE;REMOCON(R.H)

SERIAL: 1740-1859

1шт.

11

2420-9544

VALVE;REMOCON(R.H)

SERIAL: 1860

1шт.

13

2621-2752

PLATE

desc: PLAQUE

1шт.

28

2181-1951D1

TEE 2-PFO1/4.PF1/4

desc: TE

1шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

16шт.

30

2181-1126D14

ADAPTER PFO1/4.PF1/4

desc: RACCORD ADAPTATEUR

7шт.

31

2181-1702D4

ELBOW 2-PF1/4

desc: COUDE

3шт.

74

2184-1249D29

HOSE PF3/8-2000L

SERIAL: 1740-1859

1шт.

74

2184-1249D28

HOSE PF3/8-1820L

SERIAL: 1860

1шт.

75

2184-1249D29

HOSE PF3/8-2000L

SERIAL: 1740-1859

1шт.

75

2184-1249D28

HOSE PF3/8-1820L

SERIAL: 1860

1шт.

84

2184-1249D20

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1249D7

HOSE PF1/4-3100L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1249D20

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1249D14

HOSE PF1/4-2850L

desc: TUYAU FLEXIBLE

1шт.

108

2420-9378A

VALVE;SHOCKLESS

desc: VANNE

1шт.

109

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

2шт.

111

2181-1702D3

ELBOW;90 PF(O)1/4-PF3/8

desc: RACCORD

2шт.

112

2181-2604

TEE

desc: BOULON 6 PANS M16x65

1шт.

114

2184-1046D93

HOSE PF1/4-520L

desc: TUYAU FLEXIBLE

1шт.

120

2184-1045D69

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

121

2184-1045D143

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.
