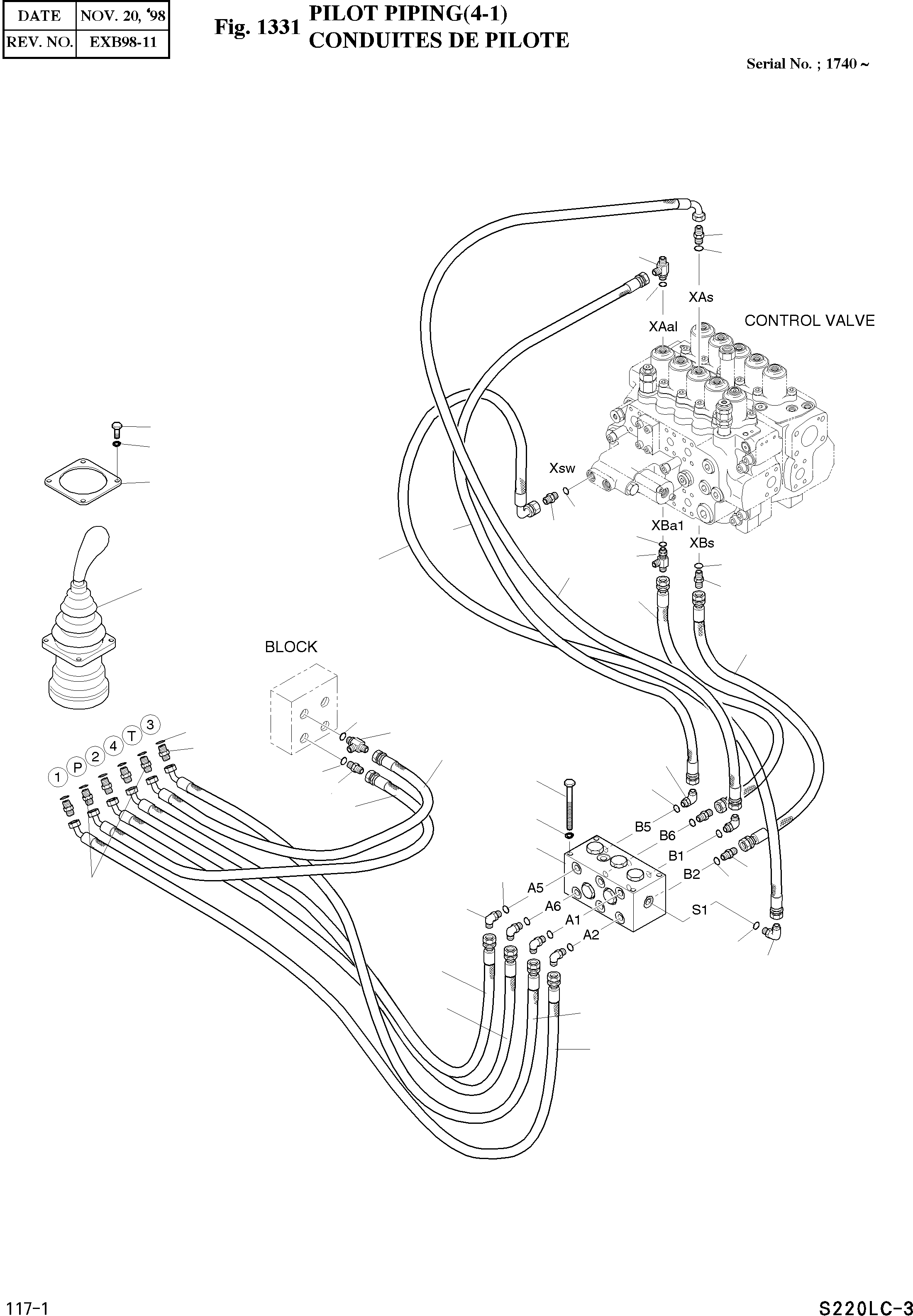

Запчасти Doosan Daewoo PILOT PIPING(4-1) BODY PARTS

-

2400-1878

PILOT PIPING

SERIAL: 1740

-2шт.

1

2420-9416

VALVE;REMOCON(L.H)

SERIAL: 1740-1859

1шт.

1

2420-9543

VALVE;REMOCON(L.H)

SERIAL: 1860

1шт.

3

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

10

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

13

2621-2752

PLATE

desc: PLAQUE

1шт.

28

2181-1951D1

TEE 2-PFO1/4-PF1/4

desc: TE

2шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

22шт.

30

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

9шт.

31

2181-1702D4

ELBOW 2-PF1/4

desc: COUDE

7шт.

62

2184-1045D69

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D131

HOSE PF1/4-560L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1249D30

HOSE PF3/8-2100L

SERIAL: 1740-1859

1шт.

76

2184-1249D29

HOSE PF3/8-2000L

SERIAL: 1860

1шт.

77

2184-1249D30

HOSE PF3/8-2100L

SERIAL: 1740-1859

1шт.

77

2184-1249D29

HOSE PF3/8-2000L

SERIAL: 1860

1шт.

78

2184-1249D22

HOSE PF1/4-2750L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1249D22

HOSE PF1/4-2750L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1249D22

HOSE PF1/4-2750L

desc: TUYAU FLEXIBLE

1шт.

81

2184-1249D22

HOSE PF1/4-2750L

desc: TUYAU FLEXIBLE

1шт.

109

2181-1126D89

ADAPTER PFO1/4.PF3/8

desc: RACCORD ADAPTATEUR

3шт.

110

2181-1951D15

TEE PFO1/4.PF1/4.PF3/8

desc: TE

1шт.

116

2420-6535

VALVE;SHUTTLE

desc: VANNE

1шт.

117

S0557353

BOLT M8X1.25X100

desc: BOULON A 6 PANS

4шт.

118

2184-1045D69

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

119

2184-1045D143

HOSE PF1/4-700L

SERIAL: 1740-1945

1шт.

119

2184-1045D69

HOSE PF1/4-600L

SERIAL: 1946

1шт.
