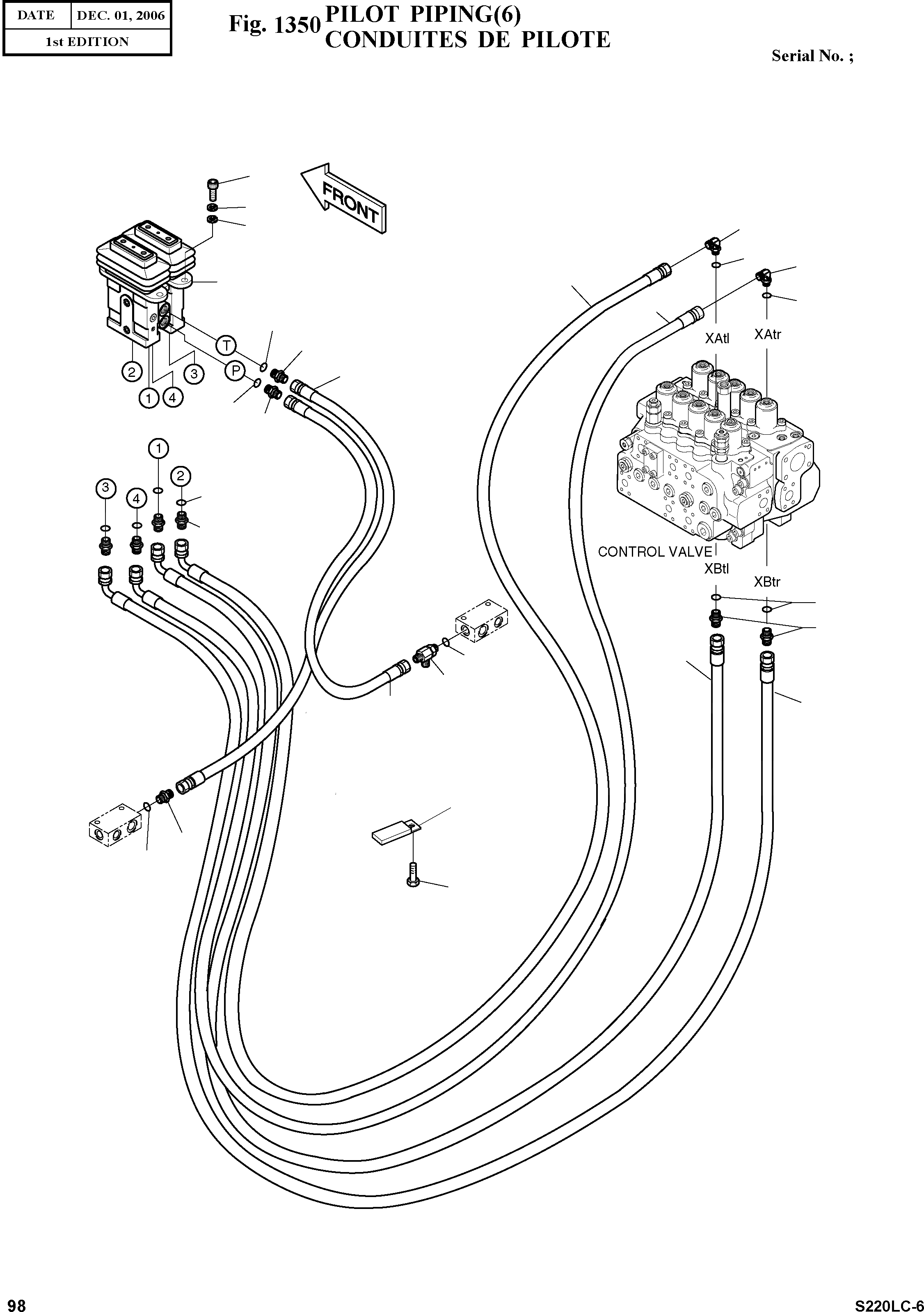

Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

K1002257

PILOT PIPING

SC: D

-2шт.

5

420-00030

VALVE;PEDAL

desc: VANNE

1шт.

15

120-00276

BOLT;SET M8X1.25X12

desc: BOULON

1шт.

22

124-00209D6

CLIP

desc: CLIP

1шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

6шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

27

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

30

2181-1126D36

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

31

2181-1126D89

ADAPTER

desc: RACCORD ADAPTATEUR

4шт.

34

2181-1702D5

ELBOW

desc: COUDE

2шт.

40

2181-1951D7

TEE

desc: TE

1шт.

63

2184-1045D174

HOSE

desc: TUYAU FLEXIBLE

1шт.

64

2184-1045D98

HOSE

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D229

HOSE

desc: TUYAU FLEXIBLE

1шт.

66

2184-1061D348

HOSE

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D265

HOSE

desc: TUYAU FLEXIBLE

1шт.

68

2184-1061D349

HOSE

desc: TUYAU FLEXIBLE

1шт.

113

S2212266

BOLT;SOCKET M10X1.5X25

desc: BOULON DE PLOT

4шт.

114

S5110603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

115

S5010613

WASHER;PLAIN

desc: RONDELLE

4шт.
