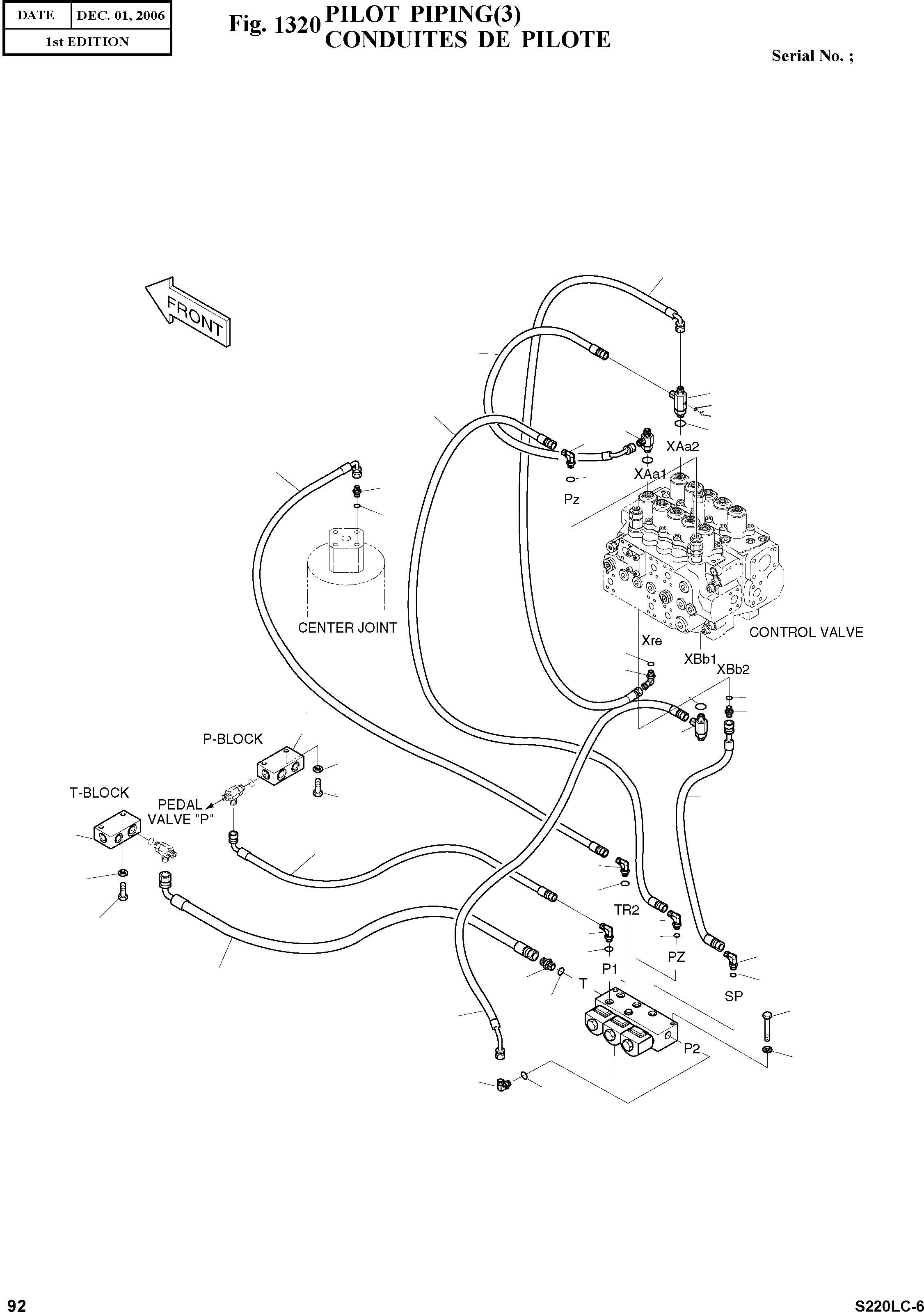

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

K1002257

PILOT PIPING

SC: D

-2шт.

7

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

11

K1002281

VALVE;SOLENOID

desc: VANNE

1шт.

12

S0558953

BOLT M10X1.5X70

desc: BOULON A 6PANS

2шт.

16

2423-1470

BLOCK

desc: BLOC

2шт.

17

S0558653

BOLT M10X1.5X55

desc: BOULON A 6PANS

4шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

5шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

27

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

28

2181-1126D7

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

32

2181-1702D4

ELBOW

desc: COUDE

5шт.

33

2181-1702D3

ELBOW

desc: COUDE

2шт.

69

2184-1046D175

HOSE

desc: TUYAU FLEXIBLE

1шт.

71

2184-1036D271

HOSE

desc: TUYAU FLEXIBLE

1шт.

73

2184-1045D165

HOSE

desc: TUYAU FLEXIBLE

1шт.

74

2184-1046D99

HOSE

desc: TUYAU FLEXIBLE

1шт.

76

2184-1046D107

HOSE

desc: TUYAU FLEXIBLE

1шт.

80

2184-1046D83

HOSE

desc: TUYAU FLEXIBLE

1шт.

88

2184-1045D199

HOSE

desc: TUYAU FLEXIBLE

1шт.

91

2184-1046D99

HOSE

desc: TUYAU FLEXIBLE

1шт.

120

2181-1951D49

TEE

desc: TE

2шт.

123

2181-2047A

PLUG

desc: BOUCHON

1шт.

124

DS2462002

TEE

desc: TE

1шт.
