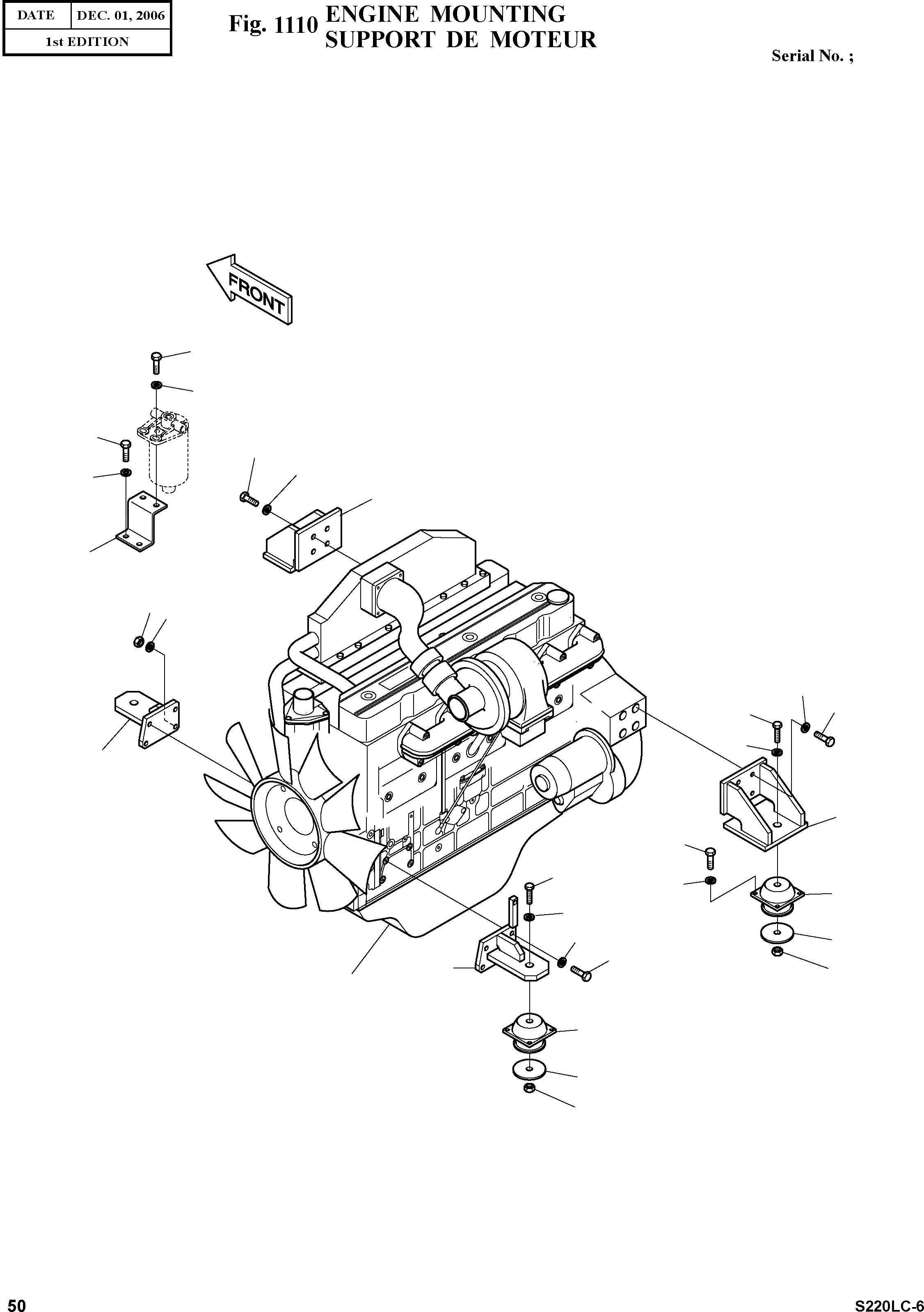

Запчасти Doosan Daewoo ENGINE MOUNTING BODY PARTS

-

K1002249

ENGINE ASS'Y

SC: D

-2шт.

1

K1002248

ENGINE

desc: MOTEUR

1шт.

5

2114-9012A

WASHER;HARD

desc: RONDELLE

8шт.

11

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.

29

195-01924

BRACKET

desc: SUPPORT

1шт.

30

195-01925

BRACKET

desc: SUPPORT

1шт.

31

S0786253

BOLT M12X1.5X30

desc: BOULON A 6PANS

8шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

33

2161-9066

RUBBER;ENGINE MOUNT

desc: CAOUTCHOUC

4шт.

34

4161-9067

RUBBER;ENGINE MOUNT

desc: CAOUTCHOUC

4шт.

35

S0512053

BOLT M10X1.5X25

desc: BOULON

18шт.

36

2114-1929

WASHER;BUMP

desc: RONDELLE PLATE

4шт.

37

S0771466

BOLT

desc: BOULON A 6PANS

4шт.

38

121-00066

NUT

desc: ECROU

4шт.

39

195Y02898

BRACKET

desc: SUPPORT

1шт.

40

195-01927

BRACKET

desc: SUPPORT

1шт.

41

S0712253

BOLT M10X1.5X30

desc: BOULON A 6PANS

7шт.

42

S5010613

WASHER

desc: RONDELLE

20шт.

46

2891-1373

PLATE

desc: PLAQUE

1шт.

47

S4032633

NUT

desc: ECROU

1шт.

48

S0558253

BOLT

desc: BOULON A 6PANS

2шт.
