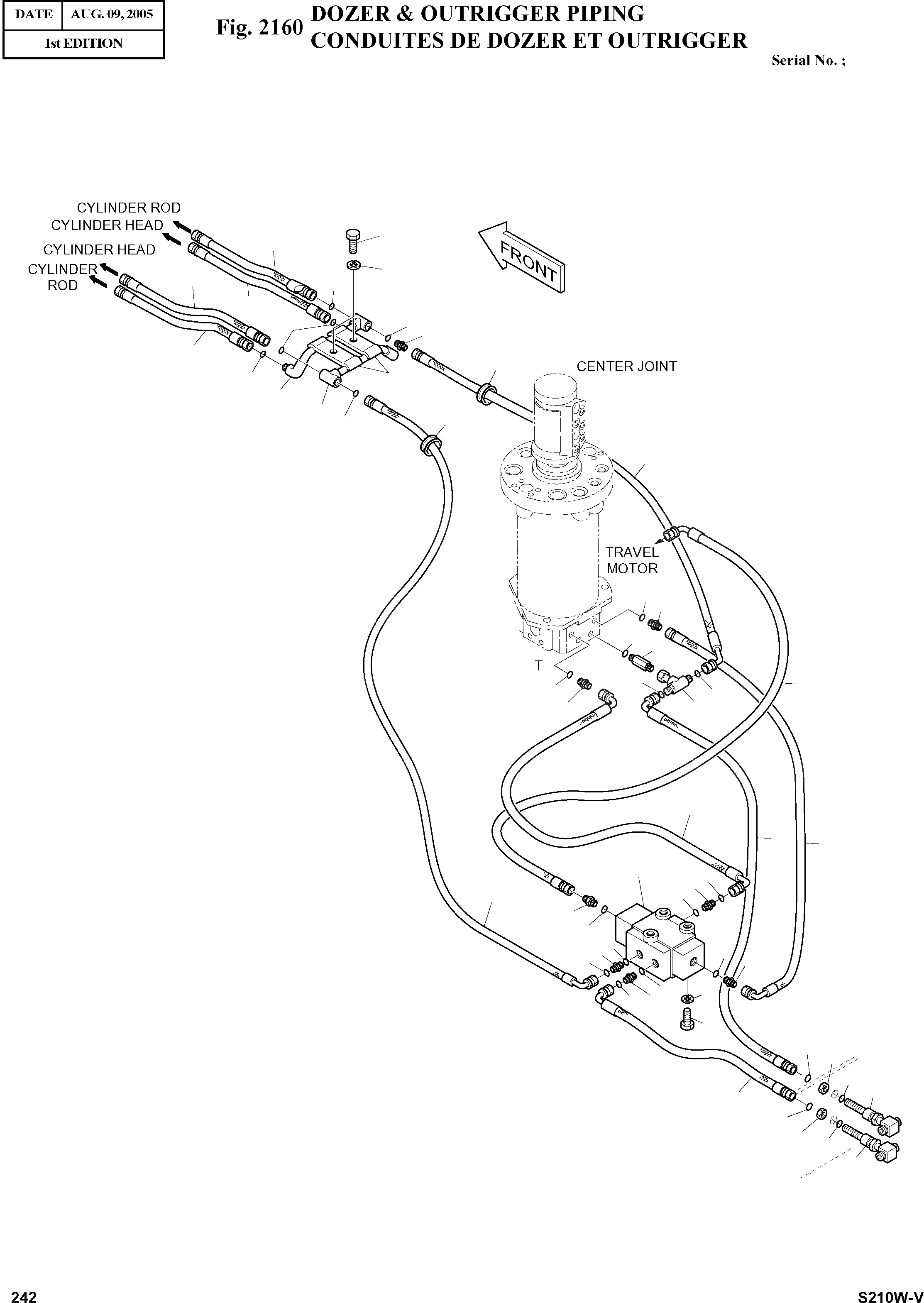

Запчасти Doosan Daewoo DOZER & OUTRIGGER PIPING TRACK PARTS

-

400-00241

BRADE & O/RIGGER PIPING

SC: D

-2шт.

1

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

2

2181-4133D46

ADAPTER

desc: ADAPTATEUR

1шт.

3

2181-4133D3

ADAPTER

desc: ADAPTATEUR

1шт.

4

S8000231

O-RING

desc: JOINT TORIQUE

3шт.

5

2181-2627D2

ADAPTER

desc: ADAPTATEUR

3шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

7

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: ADAPTATEUR

1шт.

8

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTATEUR

2шт.

9

2426-9041

VALVE;SELECTOR

desc: VANNE

1шт.

10

S2213166

BOLT;SOCKET M10X1.5X75

desc: BOULON A 6PANS

3шт.

11

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

12

181-00137

TEE 3ORS1/2

desc: TE

1шт.

14

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

15

S0560653

BOLT M12X1.75X45

desc: BOULON A 6PANS

2шт.

16

2124-1340D5

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

17

2140-1634B

PIPE

desc: TUYAU

1шт.

18

2140-1635B

PIPE

desc: TUYAU

1шт.

19

2184-1212D38

HOSE ORS1/2-1900L

desc: TUYAU FLEXIBLE

1шт.

20

DS2013323

HOSE ORS1/2-2650L

desc: TUYAU FLEXIBLE

1шт.

21

DS2013443

HOSE ORS1/2-1400L

desc: TUYAU FLEXIBLE

1шт.

22

2184-1036D192

HOSE PF3/8-1000L

desc: TUYAU FLEXIBLE

1шт.

23

DS2023090

HOSE ORS1/2-1150L

desc: TUYAU FLEXIBLE

1шт.

24

2184-1046D107

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

25

DS2013325

HOSE ORS1/2-720L

desc: TUYAU FLEXIBLE

1шт.

26

DS2011390

HOSE UNF13/16-800L

desc: TUYAU FLEXIBLE

2шт.

27

DS2011391

HOSE UNF13/16-850L

desc: TUYAU FLEXIBLE

2шт.

29

S8030081

O-RING

desc: JOINT TORIQUE

17шт.

31

121-00010D5

NUT

desc: ECROU

2шт.

32

2160-1004D41

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

2шт.

33

181-00819

TEE

desc: TE

2шт.
