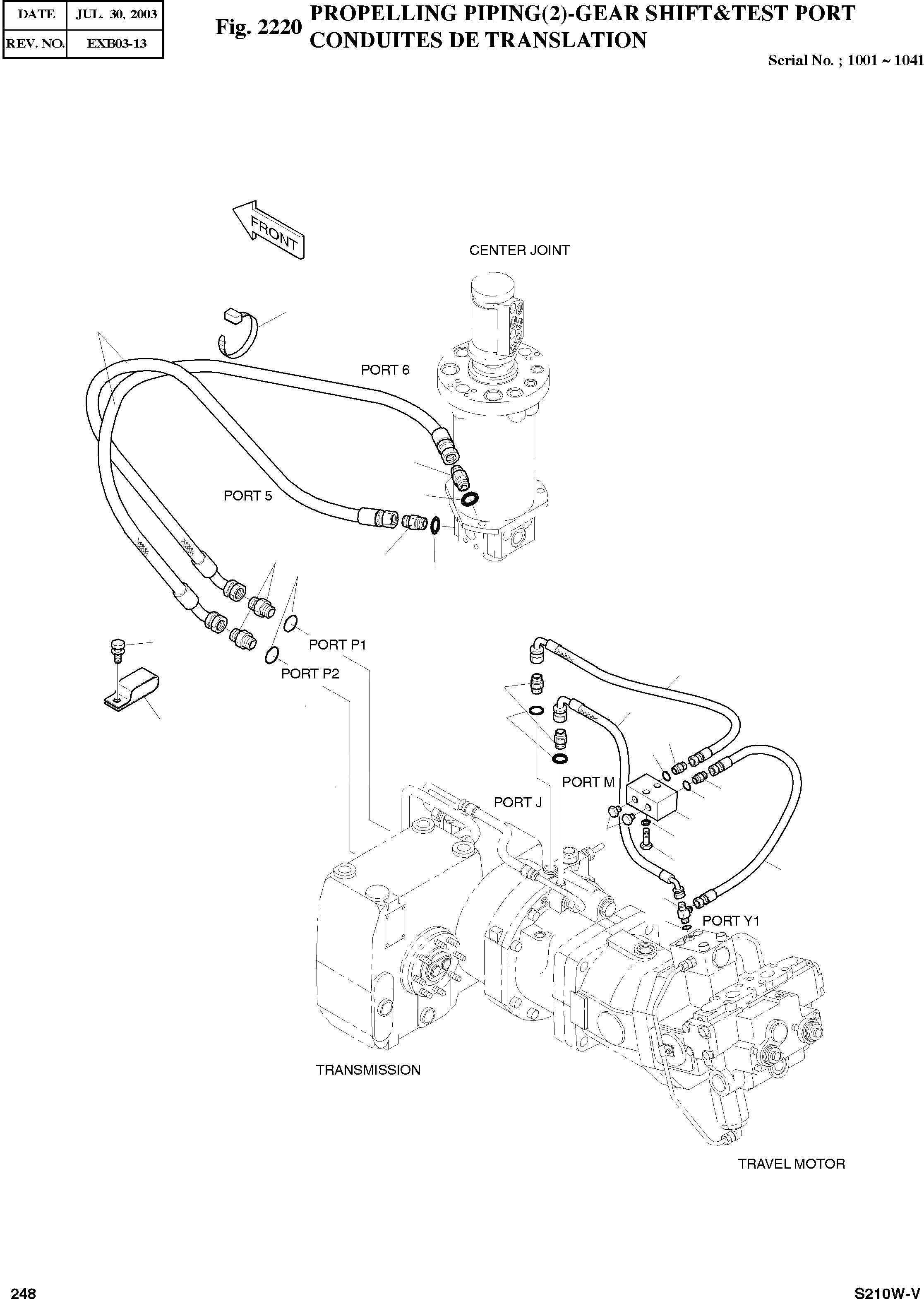

Запчасти Doosan Daewoo PROPELLING PIPING(2)-GEAR SHIFT&TEST PORT POWER TRAIN

-

400-00244

PROPELLING PIPING

SERIAL: 1001-1041

-2шт.

5

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTATEUR

2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

9

2184-1061D6

HOSE PF1/4-375L

desc: TUYAU FLEXIBLE

1шт.

15

2181-2047

PLUG

desc: BOUCHON

2шт.

20

2184-1036D181

HOSE PF3/8-1200L

desc: TUYAU FLEXIBLE

2шт.

23

S8000121

O-RING

desc: JOINT TORIQUE

2шт.

24

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: ADAPTATEUR

2шт.

27

2181-1126D56

ADAPTER PF3/8

desc: ADAPTATEUR

2шт.

28

2181-1126D128

ADAPTER PF1/4

desc: ADAPTATEUR

2шт.

29

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

30

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.

31

2423-1503

BLOCK

desc: BLOC

1шт.

32

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

33

S0556253

BOLT M8X1.25X45

desc: BOULON A 6 PANS

2шт.

34

2184-1046D58

HOSE PF1/4-1060L

desc: TUYAU FLEXIBLE

1шт.

35

2124-1084D3

CLIP;BAND

desc: CLIP

2шт.

38

2184-1045D158

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

40

120-00276

BOLT M8X1.25X12

desc: BOULON A 6 PANS

1шт.

41

124-00209D1

CLIP

desc: CLIP

1шт.
