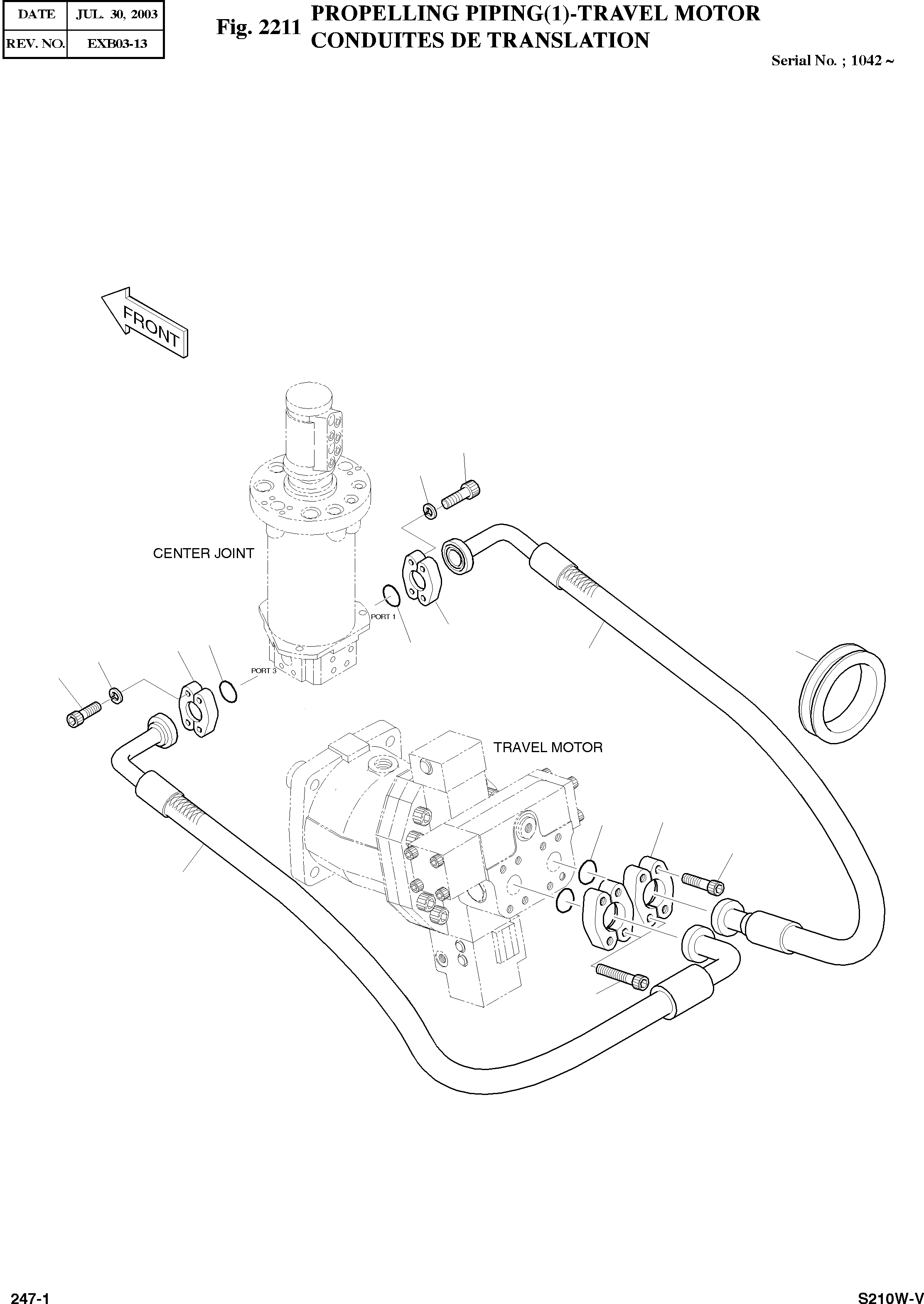

Запчасти Doosan Daewoo PROPELLING PIPING(1)-TRAVEL MOTOR POWER TRAIN

-

400-01260

PROPELLING PIPING

SERIAL: 1042

-2шт.

10

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

13

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

14

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON DE PLOT

8шт.

16

2181-9081

FLANGE;SPLIT 1-6000PSI

desc: BRIDE

4шт.

17

DS2040364

HOSE PF1-1650L

desc: TUYAU FLEXIBLE

1шт.

36

DS2045320

HOSE PF1-820L

desc: TUYAU FLEXIBLE

1шт.

39

2160-1322D1

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

1шт.

46

2181-9086

FLANGE;SPLIT 1-6000PSI

desc: BRIDE

4шт.

47

2180-1026D23

O-RING

desc: JOINT TORIQUE

2шт.

48

S2218566

BOLT;SOCKET M14X2.0X45

desc: BOULON DE PLOT

2шт.

49

S2220266

BOLT;SOCKET M14X2.0X130

desc: BOULON DE PLOT

6шт.
