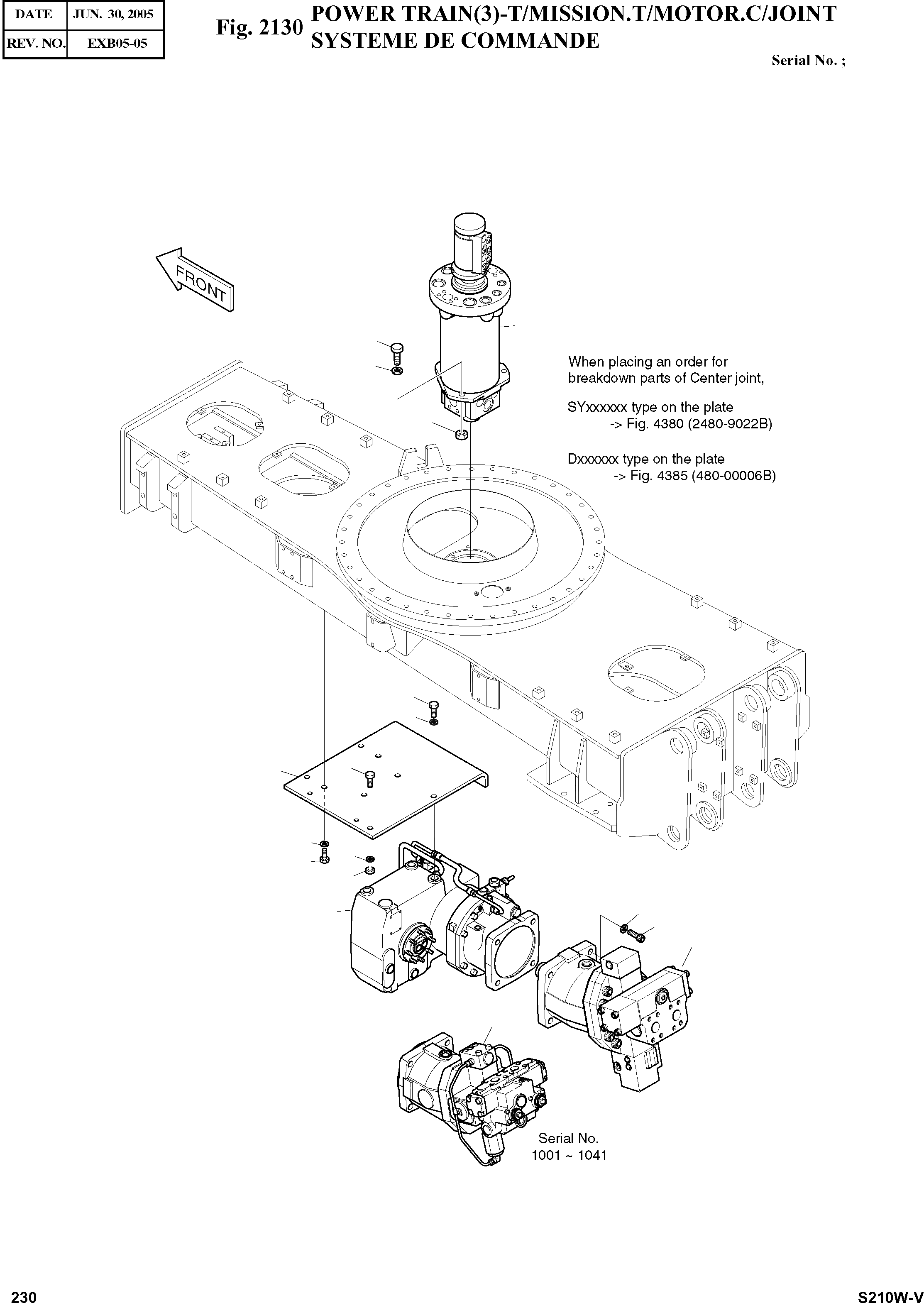

Запчасти Doosan Daewoo POWER TRAIN(3)-T/MISSION.T/MOTOR.C/JOINT POWER TRAIN

-

200-00010A

POWER TRAIN

SC: D

-2шт.

5

2401-9259

MOTOR;TRAVEL

SERIAL: 1001-1041

1шт.

5

401-00392

MOTOR;TRAVEL

SERIAL: 1042-1100

1шт.

5

401-00392A

MOTOR;TRAVEL

SERIAL: 1101-1448

1шт.

5

401-00392B

MOTOR;TRAVEL

SERIAL: 1449-1537

1шт.

5

401-00464

MOTOR;TRAVEL

SERIAL: 1538-1626

1шт.

5

401-00392B

MOTOR;TRAVEL

SERIAL: 1627

1шт.

6

2210-9410B

TRANSMISSION

desc: TRANSMISSION

1шт.

7

2480-9022B

CENTER JOINT

desc: JOINT TOURNANT

1шт.

7

480-00006B

CENTER JOINT

desc: JOINT TOURNANT

1шт.

16

621-01867A

PLATE

SERIAL: 1001-1537

1шт.

16

621-01867B

PLATE

SERIAL: 1538

1шт.

17

S5110901

WASHER;SPRING M16

SERIAL: 1001-1579

4шт.

17

S5110903

WASHER;SPRING M16

SERIAL: 1580

4шт.

20

S5102901

WASHER;SPRING M16

SERIAL: 1001-1579

3шт.

20

S5102903

WASHER;SPRING M16

SERIAL: 1580

3шт.

21

S4012933

NUT M16X2.0

desc: ECROU

3шт.

24

S0521561

BOLT M16X2.0X45

SERIAL: 1001-1579

3шт.

24

S0521566

BOLT M16X2.0X45

SERIAL: 1580

3шт.

26

S0527661

BOLT M20X2.5X50

SERIAL: 1001-1579

3шт.

26

S0527666

BOLT M20X2.5X50

SERIAL: 1580

3шт.

28

2114-9012

WASHER;HARD

SERIAL: 1001-1041

8шт.

28

2114-9012A

WASHER;HARD

SERIAL: 1042

8шт.

33

S0570461

BOLT M20X2.5X80

SERIAL: 1001-1579

5шт.

33

S0570466

BOLT M20X2.5X80

SERIAL: 1580

5шт.

34

S2221761

BOLT;SOCKET M16X2.0X55

SERIAL: 1001-1579

4шт.

34

S2221766

BOLT;SOCKET M16X2.0X55

SERIAL: 1580

4шт.

35

S4013133

NUT M20X2.5

desc: ECROU

1шт.
