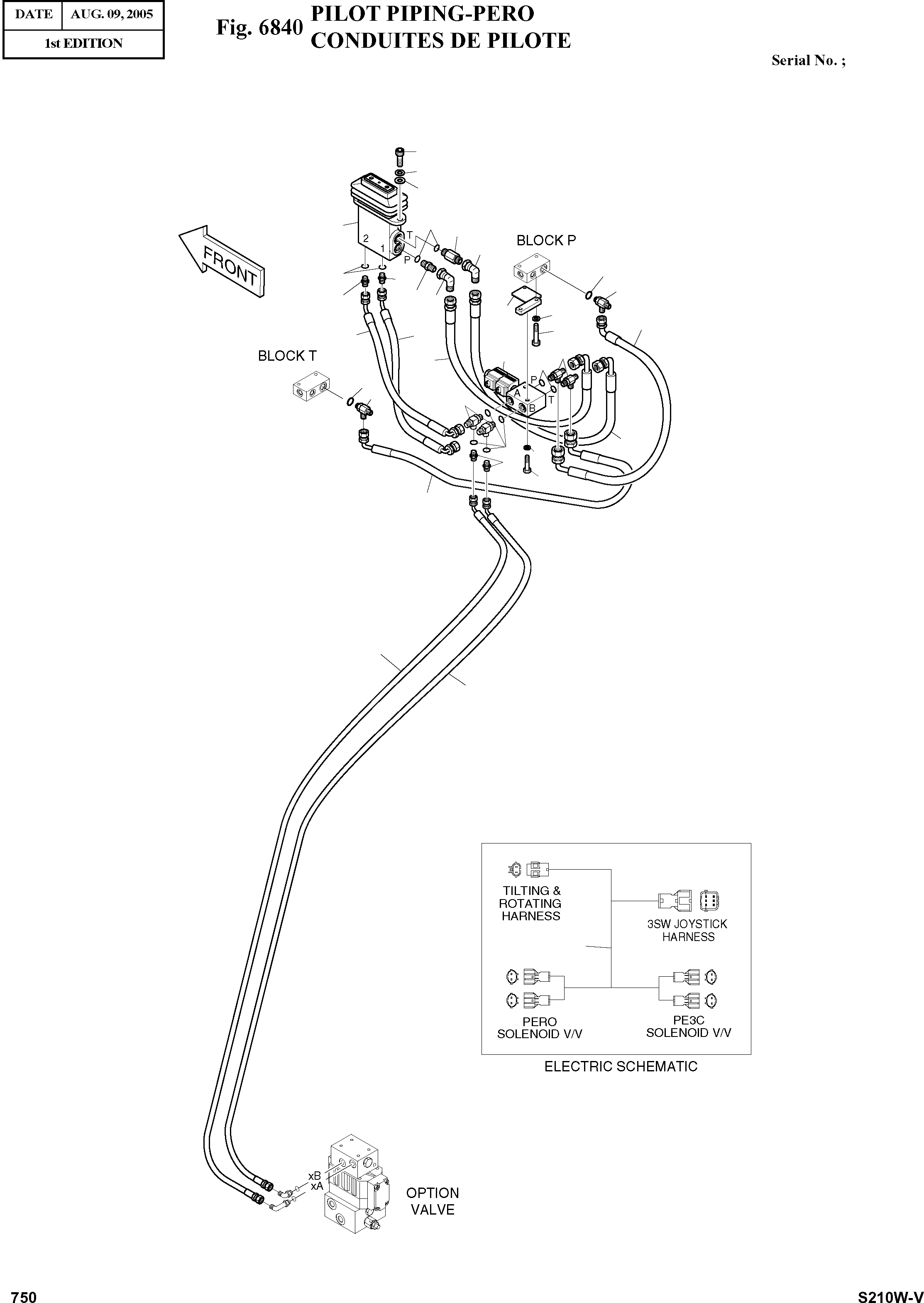

Запчасти Doosan Daewoo PILOT PIPING-PERO OPTION PARTS

-

K1005281F3

PILOT PIPING-PE3C/PERO

SC: D

-2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

6

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

7

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

8

2181-1126D14

ADAPTER

desc: ADAPTATEUR

1шт.

9

2181-1126D39

ADAPTER

desc: ADAPTATEUR

4шт.

11

2181-1126D34

ADAPTER

desc: ADAPTATEUR

1шт.

14

181-00709

ELBOW;UNION

desc: COUDE

2шт.

15

2181-1951D1

TEE

desc: TE

2шт.

16

2181-1951D6

TEE

desc: TE

1шт.

17

2181-1951D19

TEE

desc: TE

1шт.

19

K1002694

TEE;SHUTTLE

desc: TE

2шт.

21

K1002677

SOLENOID;VALVE

desc: VANNE

1шт.

23

K1004104

BRACKET

desc: SUPPORT

1шт.

24

S0559063

BOLT M12X1.5X75

desc: BOULON A 6 PANS

2шт.

25

S0556266

BOLT

desc: BOULON A 6 PANS

2шт.

26

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

28

K1000408

HARNESS

desc: HARNAIS

1шт.

36

DS2059482

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

37

DS2059482

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

38

DS2055586

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

39

DS2055586

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

40

DS2059483

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

41

DS2059484

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

42

DS2055277

HOSE PF3/8-3000L

desc: TUYAU FLEXIBLE

1шт.

43

DS2055277

HOSE PF3/8-3000L

desc: TUYAU FLEXIBLE

1шт.

50

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

51

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON DE PLOT

2шт.

52

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

53

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.
