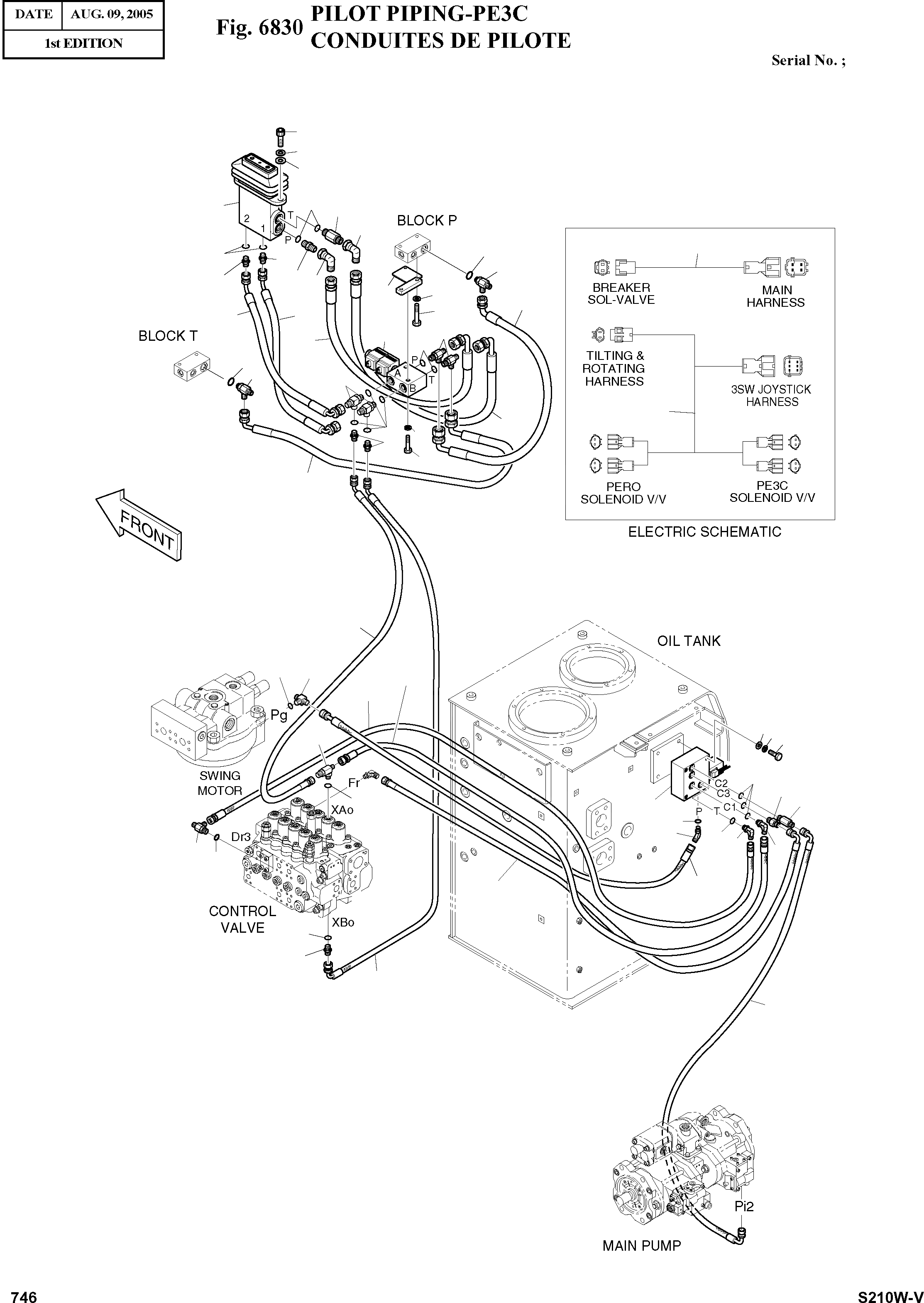

Запчасти Doosan Daewoo PILOT PIPING-PE3C OPTION PARTS

-

K1005281F2

PILOT PIPING-PE3C/PERO

SC: D

-2шт.

1

420-00340B

VALVE;BREAKER PAKAGE

desc: VANNE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

5шт.

4

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

3шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

17шт.

6

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

7

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

8

2181-1126D14

ADAPTER

desc: ADAPTATEUR

2шт.

9

2181-1126D39

ADAPTER

desc: ADAPTATEUR

4шт.

10

2181-1126D7

ADAPTER

desc: ADAPTATEUR

1шт.

11

2181-1126D34

ADAPTER

desc: ADAPTATEUR

2шт.

12

2181-1702D4

ELBOW

desc: COUDE

2шт.

13

2181-2419D1

ELBOW

desc: COUDE

1шт.

14

181-00709

ELBOW;UNION

desc: COUDE

2шт.

15

2181-1951D1

TEE

desc: TE

3шт.

16

2181-1951D6

TEE

desc: TE

1шт.

17

2181-1951D19

TEE

desc: TE

1шт.

18

2181-2281D1

TEE

desc: TE

1шт.

19

K1002694

TEE;SHUTTLE

desc: TE

2шт.

20

K1004103

TEE;SHUTTLE

desc: TE

1шт.

21

K1002677

SOLENOID;VALVE

desc: VANNE

1шт.

23

K1004104

BRACKET

desc: SUPPORT

1шт.

24

S0559063

BOLT M12X1.5X75

desc: BOULON A 6 PANS

2шт.

25

S0556266

BOLT

desc: BOULON A 6 PANS

2шт.

26

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

27

530-00330

HARNESS;BREAKER

desc: HARNAIS

1шт.

28

K1000408

HARNESS

desc: HARNAIS

1шт.

29

2184-1045D196

HOSE PF1/4-1730L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1061D277

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

34

DS2055277

HOSE PF3/8-3000L

desc: TUYAU FLEXIBLE

1шт.

35

DS2055604

HOSE PF3/8-3500L

desc: TUYAU FLEXIBLE

1шт.

36

DS2059482

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

37

DS2059482

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

38

DS2055586

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

39

DS2055586

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

40

DS2059483

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

41

DS2059484

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

50

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

51

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON DE PLOT

2шт.

52

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

53

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.
