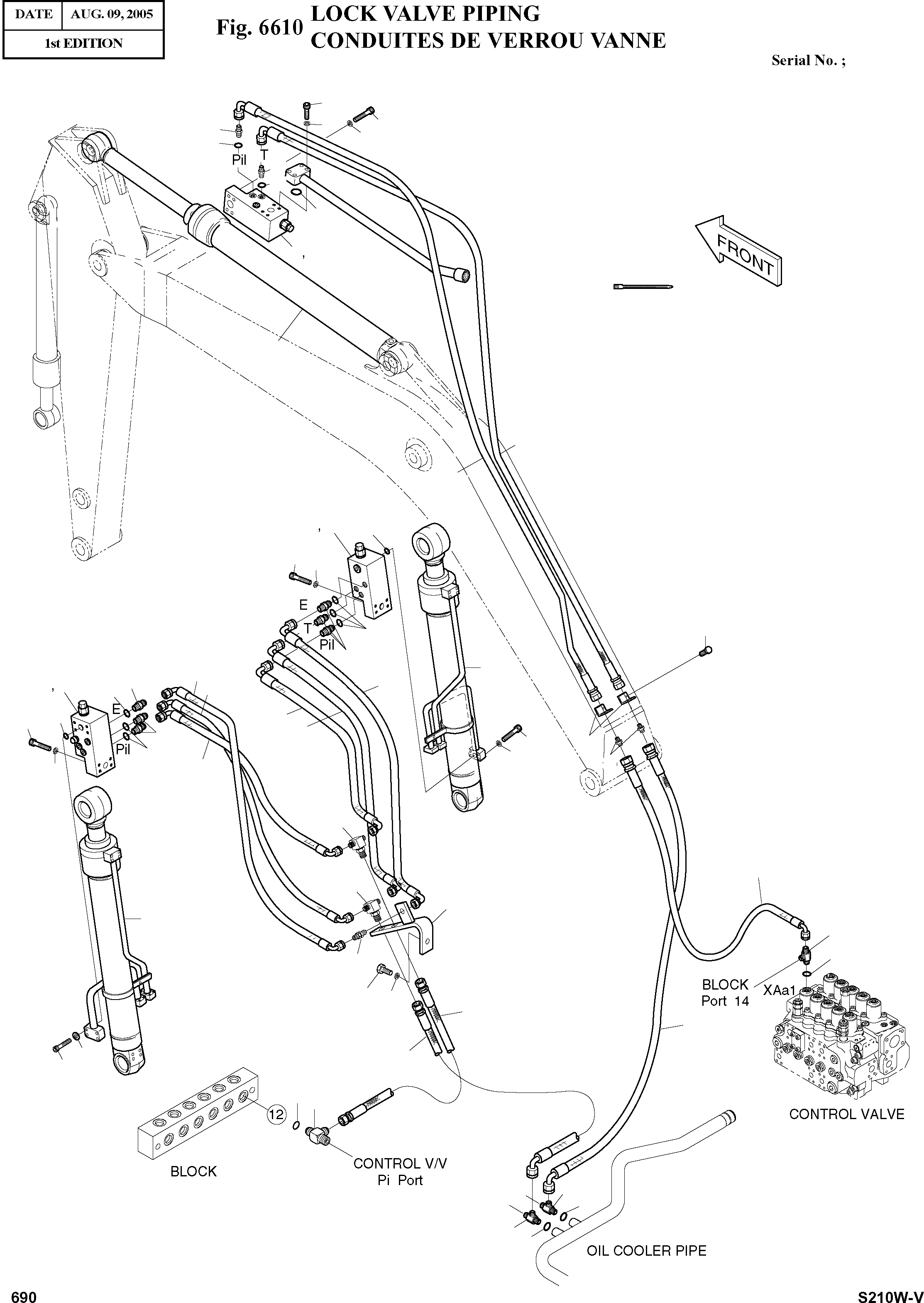

Запчасти Doosan Daewoo LOCK VALVE PIPING OPTION PARTS

-

400-00063

LOCK VALVE PIPING

SC: D

-2шт.

1

440-00028C

CYLINDER;BOOM(L.H.)

desc: VERIN DE FLECHE

1шт.

2

440-00029C

CYLINDER;BOOM)R.H.)

desc: VERIN DE FLECHE

1шт.

3

2440-6493C

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

4

420-00226

VALVE;BOOM

desc: VANNE

2шт.

4A

K9000998

SEAL KIT

desc: . KIT DE JOINT

1шт.

5

420-00004A

VALVE;ARM

desc: VANNE

1шт.

5A

K9000999

SEAL KIT

desc: . KIT DE JOINT

1шт.

6

2184-1062D59

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1076D118

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

2шт.

8

2184-1062D59

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

2шт.

9

2184-1045D213

HOSE PF3/8-1300L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1036D90

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D302

HOSE PF1/4-5250L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1036D400

HOSE PF1/4-5200L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1046D283

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1036D309

HOSE PF3/8-3300L

desc: TUYAU FLEXIBLE

1шт.

15

S2212766

BOLT;SOCKET M10X1.5X50

desc: BOULON A 6PANS

16шт.

16

S5110613

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

16шт.

17

S2215766

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6PANS

4шт.

18

S2215866

BOLT;SOCKET M12X1.75X60

desc: BOULON A 6PANS

4шт.

19

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

20

S8000281

O-RING

desc: JOINT TORIQUE

2шт.

21

S8000341

O-RING

desc: JOINT TORIQUE

1шт.

22

197-00022

SUPPORT

desc: SUPPORT

1шт.

23

S0561353

BOLT M12X1.75X80

desc: BOULON A 6PANS

1шт.

24

S0565666

BOLT M16X2.0X70

desc: BOULON A 6PANS

2шт.

25

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

1шт.

26

195-02266

BRACKET

desc: SUPPORT

2шт.

27

181-00020

ADAPTER 2PF1/4

desc: ADAPTEUR

1шт.

28

181-00008

TEE PF3/8-2PF1/4

desc: TE

2шт.

29

181-00007

ADAPTER PF1/4-PF3/8

desc: ADAPTEUR

2шт.

30

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

8шт.

32

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

33

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

34

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

36

2181-1951D16

TEE PFO3/8-2PF3/8

desc: TE

1шт.

37

2181-1951D13

TEE PFO1/2-PF3/8-PF1/2

desc: TE

2шт.

38

2124-1084D2

CLIP;BAND

desc: CLIP

30шт.

39

2181-1951D11

TEE PFO3/8-PF3/8-PF1/4

desc: TE

1шт.
