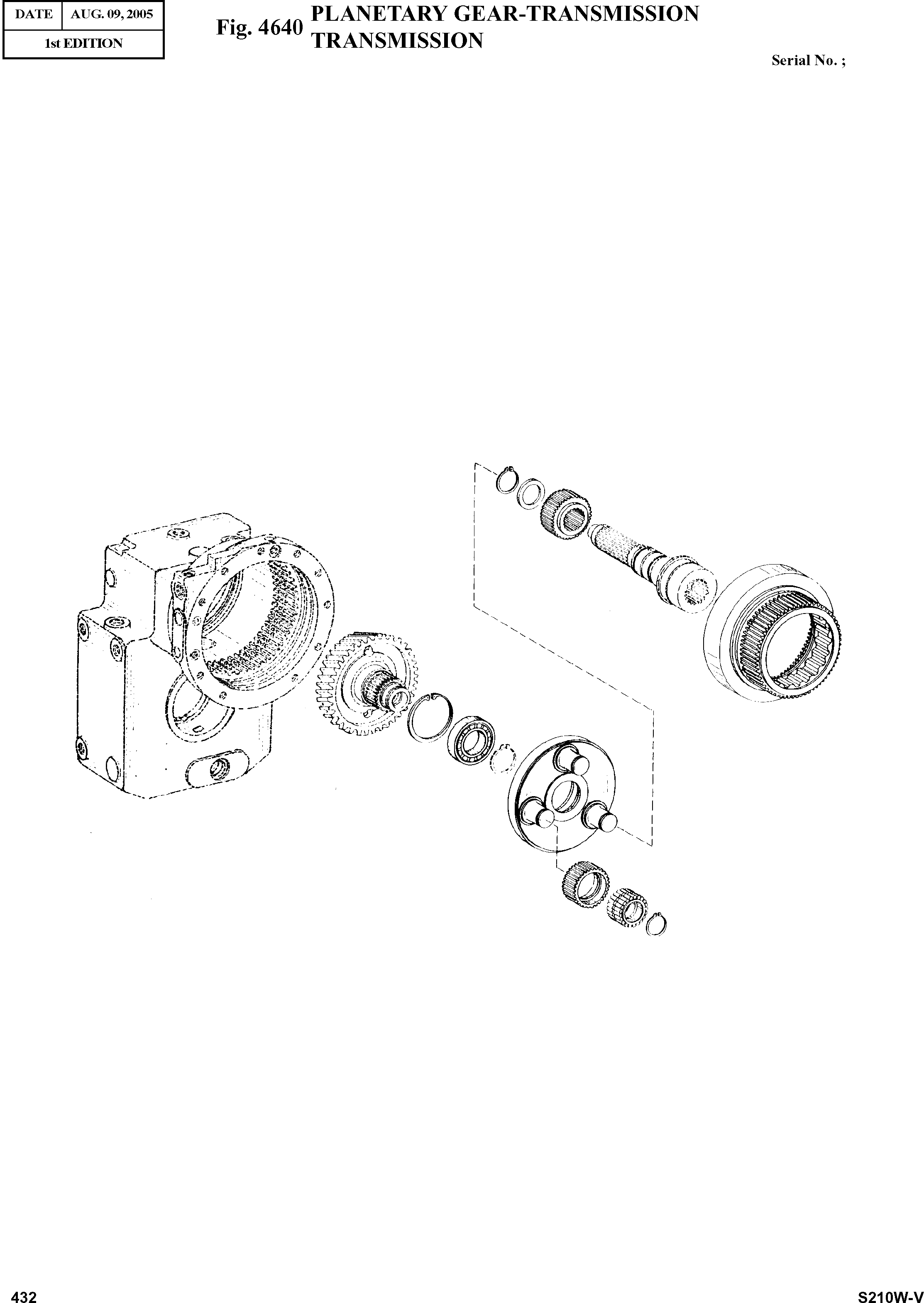

Запчасти Doosan Daewoo PLANETARY GEAR-TRANSMISSION HYDRAULIC PARTS

1

4143 315 026

CARRIER;PLANET

desc: SUPPORT

1шт.

2

0635 331 216

BEARING;BALL

desc: ROULEMENT A BILLES

1шт.

3

0630 502 032

RING;RETAINING

desc: RONDELLE DE RETENUE

1шт.

4

4143 315 024

GEAR;PLANET

desc: ENGRENAGE PLANETAIRE

3шт.

5

0735 455 262

BEARING;ROLLER

desc: ROULEMENT A BILLES

3шт.

6

0630 501 248

RING;RETAINING

desc: RONDELLE DE RETENUE

3шт.

7

4143 315 028

GEAR;SUN

desc: ENGRENAGE PRINCIPAL

1шт.

8

0730 104 234

WASHER;OPTIONAL A=3.0

desc: RONDELLE

1шт.

8

0730 104 235

WASHER;OPTIONAL A=3.05

SC: R

1шт.

8

0730 104 236

WASHER;OPTIONAL A=3.15

SC: R

1шт.

8

0730 104 238

WASHER;OPTIONAL A=3.25

SC: R

1шт.

8

0730 104 239

WASHER;OPTIONAL A=3.35

SC: R

1шт.

8

0730 104 240

WASHER;OPTIONAL A=3.4

SC: R

1шт.

8

0730 104 241

WASHER;OPTIONAL A=3.5

SC: R

1шт.

8

0730 108 058

WASHER;OPTIONAL A=3.6

SC: R

1шт.

8

0730 108 059

WASHER;OPTIONAL A=3.7

SC: R

1шт.

8

0730 104 237

WASHER;OPTIONAL A=3.2

SC: R

1шт.

9

0730 501 438

RING;RETAINING

desc: RONDELLE DE RETENUE

1шт.

10

4143 315 036

GEAR;RING

desc: COURONNE DENTEE

1шт.
