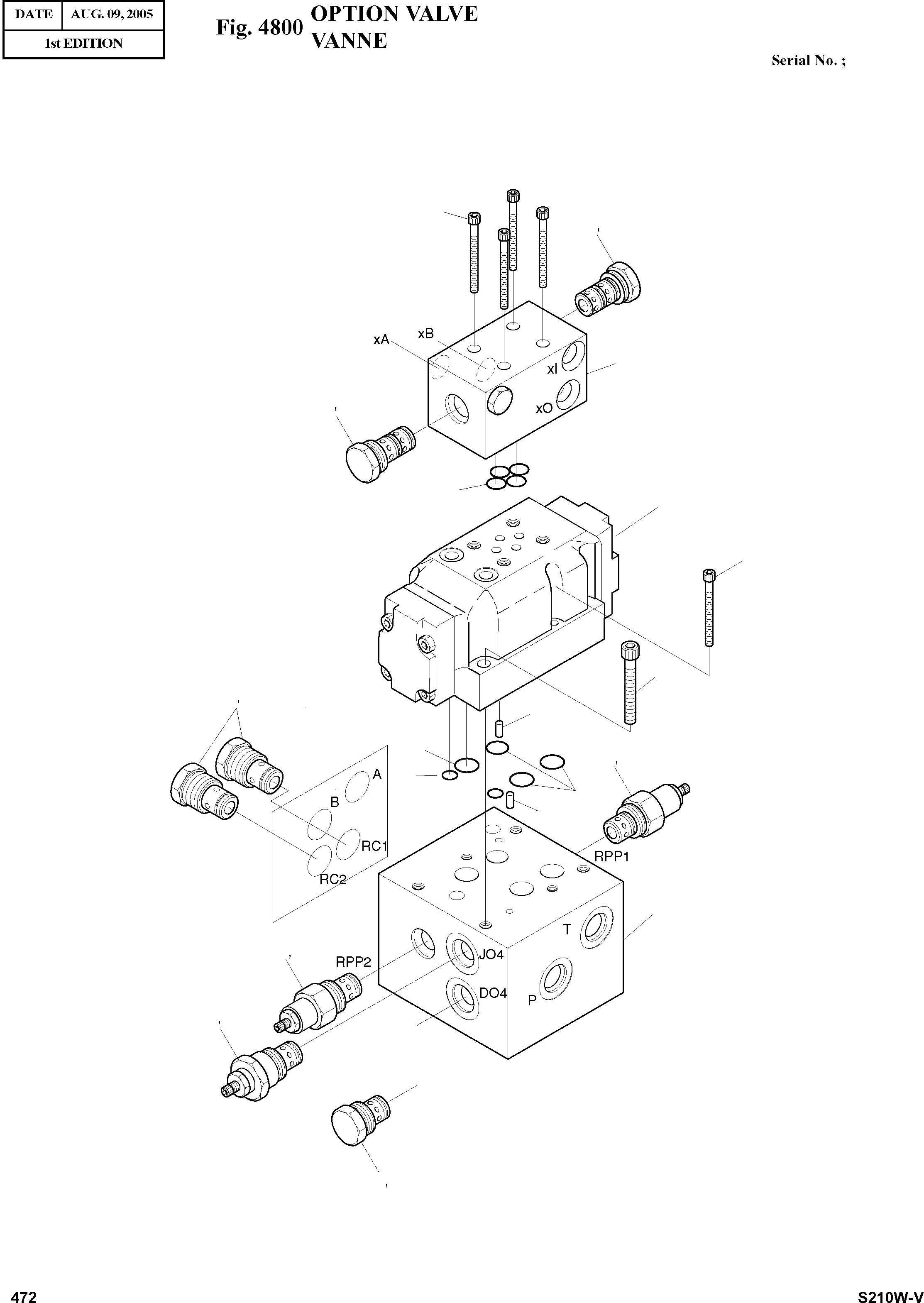

Запчасти Doosan Daewoo OPTION VALVE HYDRAULIC PARTS

-

K1002046

OPTION VALVE

desc: VANNE

1шт.

1

K9000449

BLOCK;MAIN

SC: D

1шт.

2

K9000440

BLOCK;PILOT

SC: D

1шт.

3

K9000450

VALVE;RELIEF

desc: VANNE

2шт.

3A

K9000451

SEAL KIT

desc: . KIT DE JOINT

1шт.

4

K9000452

VALVE;CHECK

desc: VANNE

2шт.

4A

K9000451

SEAL KIT

desc: . KIT DE JOINT

1шт.

5

K9000443

VALVE;FLOW CONTROL

desc: VANNE

1шт.

5A

K9000444

SEAL KIT

desc: . KIT DE JOINT

1шт.

6

K9000453

VALVE;CHECK

desc: VANNE

1шт.

6A

K9000454

SEAL KIT

desc: . KIT DE JOINT

1шт.

7

K9000445

VALVE;DIRE. CONT

desc: VANNE

1шт.

8

K9000446

VALVE;SHUTTLE

desc: VANNE

2шт.

8A

K9000447

SEAL KIT

desc: . KIT DE JOINT

1шт.

9

K9000448

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

10

S8000091

O-RING

desc: JOINT TORIQUE

4шт.

11

S2212861

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

12

S2205761

BOLT;SOCKET

desc: BOULON DE PLOT

2шт.

13

2180-1217D54

O-RING

desc: JOINT TORIQUE

4шт.

14

2180-1217D13

O-RING

desc: JOINT TORIQUE

2шт.

15

S5740470

PIN

desc: GOUPILLE

2шт.
