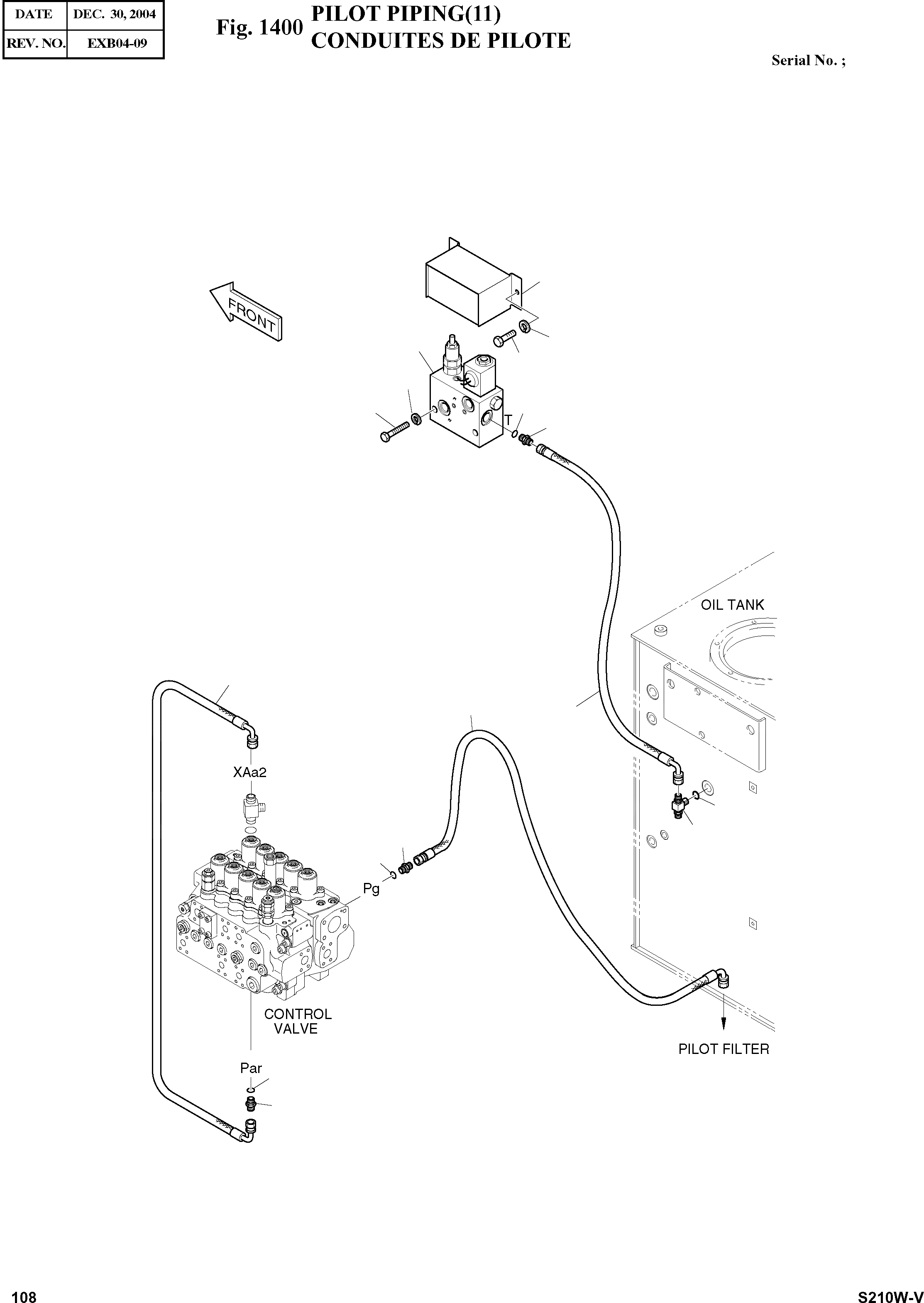

Запчасти Doosan Daewoo PILOT PIPING(11) BODY PARTS

-

400-01142

PILOT PIPING

SC: D

-2шт.

4

2181-2281D2

TEE PFO1/2-PF1/2-PF3/8

desc: TE

1шт.

5

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

10

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: ADAPTATEUR

1шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTATEUR

2шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

22

420-00367

VALVE;SOLENOID

SERIAL: 1001-1474

1шт.

22

420-00367A

VALVE;SOLENOID

SERIAL: 1475

1шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

61

S0559053

BOLT M10X1.5X75

desc: BOULON A 6 PANS

2шт.

69

2184-1046D142

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1036D164

HOSE PF3/8-400L

desc: TUYAU FLEXIBLE

1шт.

96

2184-1061D73

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

131

2627-1117A

COVER

desc: COUVERCLE

1шт.

132

S0508353

BOLT M8X1.25X10

desc: BOULON A 6 PANS

2шт.
