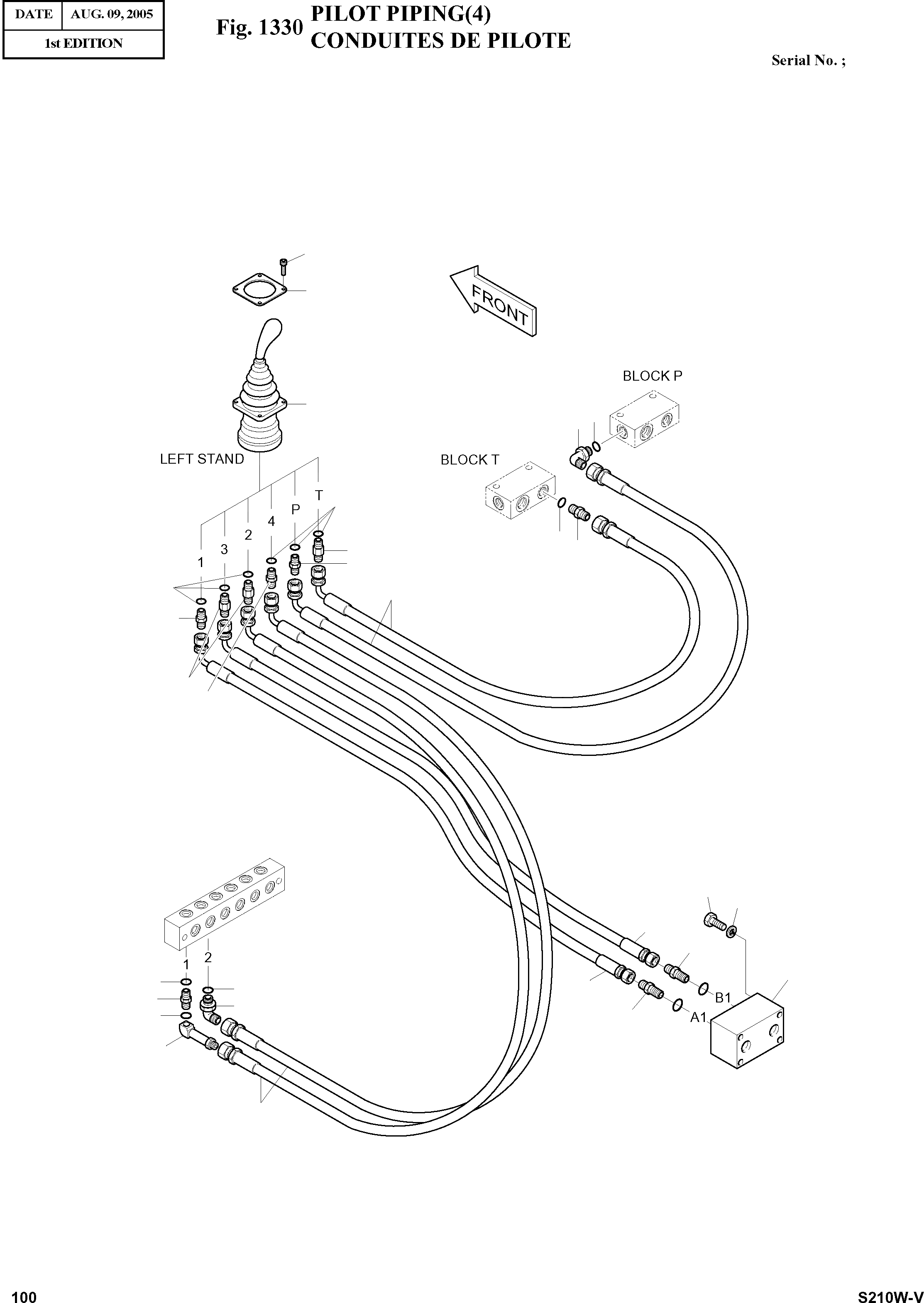

Запчасти Doosan Daewoo PILOT PIPING(4) BODY PARTS

-

400-01142

PILOT PIPING

SC: D

-2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

5шт.

10

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: ADAPTATEUR

1шт.

12

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

2шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

16

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

53

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: ADAPTATEUR

5шт.

62

2181-2295D16

ELBOW 2-PFO3/8

desc: COUDE

1шт.

65

2420-9158A

VALVE;SHUTTLE

desc: VANNE

1шт.

112

2184-1267D9

HOSE FP3/8X1950L

desc: TUYAU FLEXIBLE

2шт.

113

2184-1267D3

HOSE FP3/8X1700L

desc: TUYAU FLEXIBLE

4шт.

121

420-00342A

VALVE;REMOCON(L.H.)

desc: VANNE

1шт.

123

S2205066

BOLT;SOCKET M6X1X25

desc: BOULON A 6 PANS

4шт.

124

2621-2752

PLATE

desc: PLAQUE

1шт.

125

2181-1126D120

ADAPTER PFO1/4-PF3/8

desc: ADAPTATEUR

3шт.

139

181-00144D10

ORIFICE;ADAPTER

desc: ADAPTATEUR

1шт.
