Запчасти Doosan Daewoo PILOT PIPING-ONE WAY OPTION-FRONT PARTS

-

2400-2174

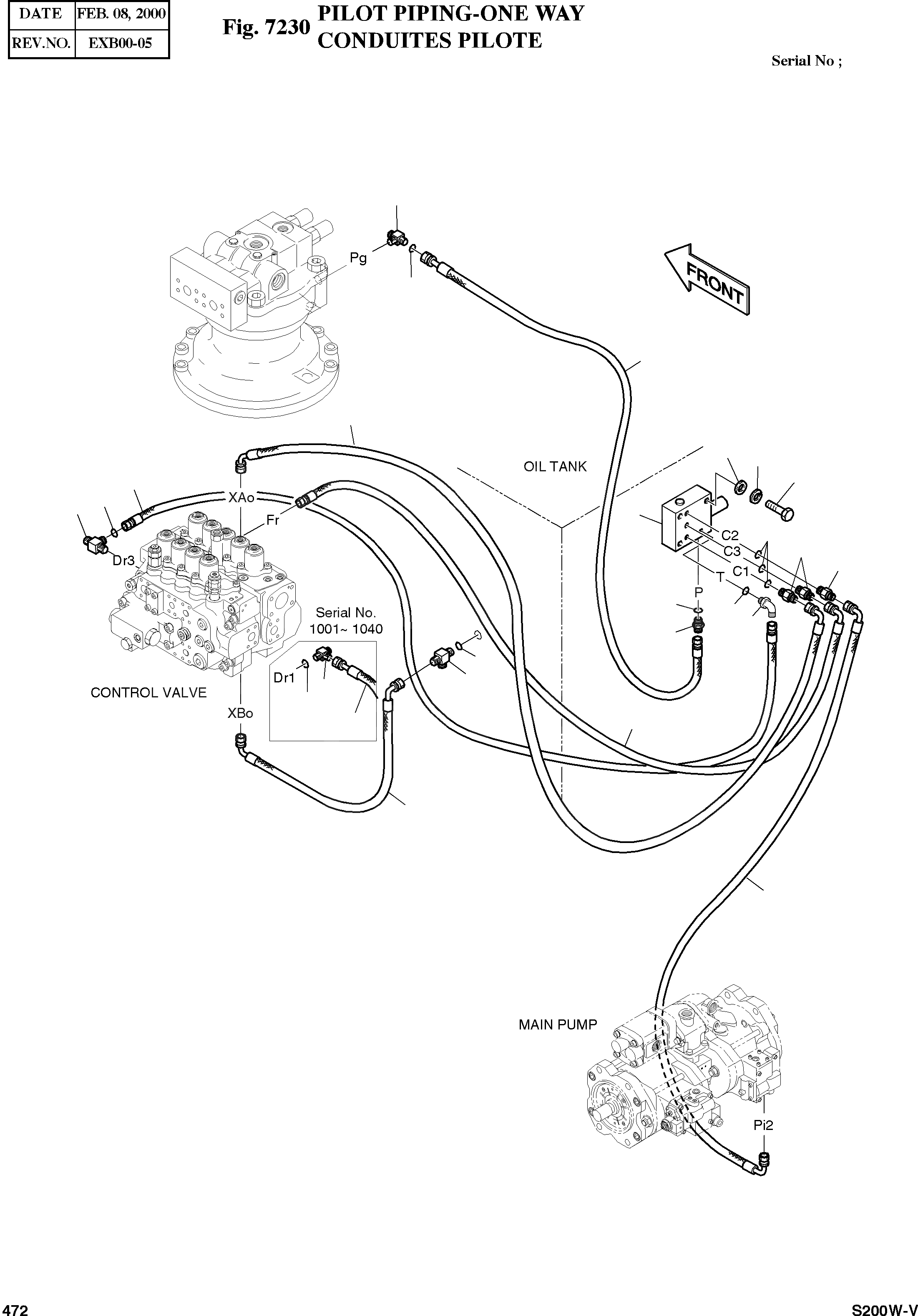

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

2420-9227A

VALVE;BREAKER

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

3шт.

5

2181-1126D14

ADAPTER PFO PF1/4

desc: RACCORD ADAPTATEUR

3шт.

6

S8000111

O-RING

SERIAL: 1001-1040

7шт.

6

S8000111

O-RING

SERIAL: 1041

8шт.

7

2181-1126D34

ADAPTER PFO PF1/4

desc: RACCORD ADAPTATEUR

1шт.

8

2181-1702D4

ELBOW PFO PF1/4

desc: COUDE

1шт.

9

2181-1951D6

TEE PFO PF3/8XPF1/4

SERIAL: 1001-1040

1шт.

10

S8000141

O-RING

SERIAL: 1001-1040

1шт.

11

2181-1951D1

TEE PFOX2-PF1/4

SERIAL: 1001-1040

1шт.

11

2181-1951D1

TEE PFOX2-PF1/4

SERIAL: 1041

2шт.

12

2181-2281D1

TEE PFOX2-PF1/4

desc: TE

1шт.

13

2184-1061D14

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1061D277

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D196

HOSE PF1/4-1730L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1045D201

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1061D56

HOSE PF1/4-640L

desc: TUYAU FLEXIBLE

1шт.
