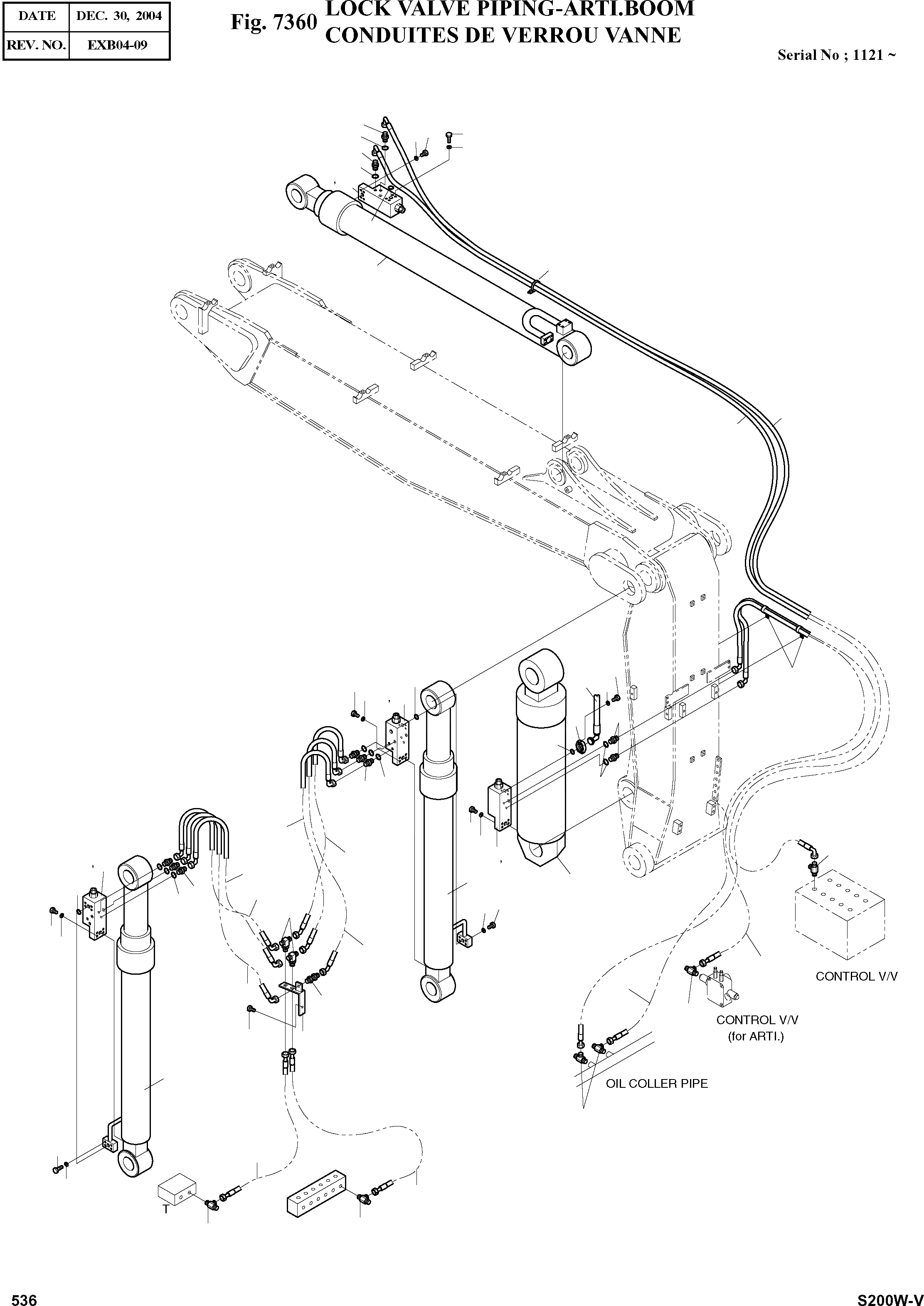

Запчасти Doosan Daewoo LOCK VALVE PIPING-ARTI.BOOM OPTION-FRONT PARTS

-

400-00437

LOCK VALVE PIPING

SERIAL: 1121

-2шт.

1

440-00182

CYLINDER;BOOM(L.H)

SERIAL: 1121-1366

1шт.

1

440-00182A

CYLINDER;BOOM(L.H)

SERIAL: 1367

1шт.

2

440-00183

CYLINDER;BOOM(R.H)

SERIAL: 1121-1366

1шт.

2

440-00183A

CYLINDER;BOOM(R.H)

SERIAL: 1367

1шт.

3

440-00184

CYLINDER;ARTI. BOOM

SERIAL: 1121-1481

1шт.

3

440-00332

CYLINDER;ARTI. BOOM

SERIAL: 1482

1шт.

4

440-00199

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

5

420-00003A

VALVE;LOCK

SERIAL: 1121-1366

3шт.

5

420-00226

VALVE;LOCK

SERIAL: 1367

3шт.

5A

K9000998

SEAL KIT

desc: . KIT DE JOINT

1шт.

6

420-00004A

VALVE;LOCK

desc: VANNE

1шт.

6A

K9000999

SEAL KIT

desc: . KIT DE JOINT

1шт.

7

2184-1046D252

HOSE PF1/4-5630L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1046D261

HOSE PF1/4-4800L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1061D344

HOSE PF1/4-6700L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1046D296

HOSE PF1/4-7600L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1045D213

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D291

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1062D16

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

14

2184-1062D15

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

2шт.

15

2184-1076D150

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

2шт.

16

2184-1202D77

HOSE PF3/4-630L

desc: TUYAU FLEXIBLE

1шт.

17

S2212366

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

18

S2212666

BOLT:SOCKET M10X1.5X50

SERIAL: 1121-1366

20шт.

18

S2212766

BOLT:SOCKET M10X1.5X55

SERIAL: 1367

20шт.

19

S2215766

BOLT M12X1.75X55

desc: BOULON A 6 PANS

4шт.

20

S2215866

BOLT:SOCKET M12X1.75X60

desc: BOULON A 6 PANS CREUX

4шт.

21

S0561353

BOLT:SOCKET M12X1.75X80

desc: BOULON A 6 PANS CREUX

1шт.

22

S5110613

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

23

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

24

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

25

S8000281

O-RING

desc: JOINT TORIQUE

2шт.

26

S8000341

O-RING

desc: JOINT TORIQUE

1шт.

27

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

28

181-00020

ADAPTER;S PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

29

2181-1126D14

ADAPTER;S PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

10шт.

30

181-00008

TEE PF1/4-PF1/4-PF3/8

desc: TE

2шт.

31

2181-1951D16

TEE PFO3/8-2PF3/8

desc: TE

1шт.

32

2181-1951D11

TEE PFO3/8-PF1/4-PF3/8

desc: TE

2шт.

33

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.

34

2181-1951D19

TEE PFO1/2-PF1/2-PF1/4

desc: TE

2шт.

35

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

36

2124-1353D19

CLIP

desc: ATTACHE

2шт.

37

2124-1084D2

CLIP;BAND

desc: ATTACHE

30шт.

38

197-00022

SUPPORT

desc: SUPPORT

1шт.
