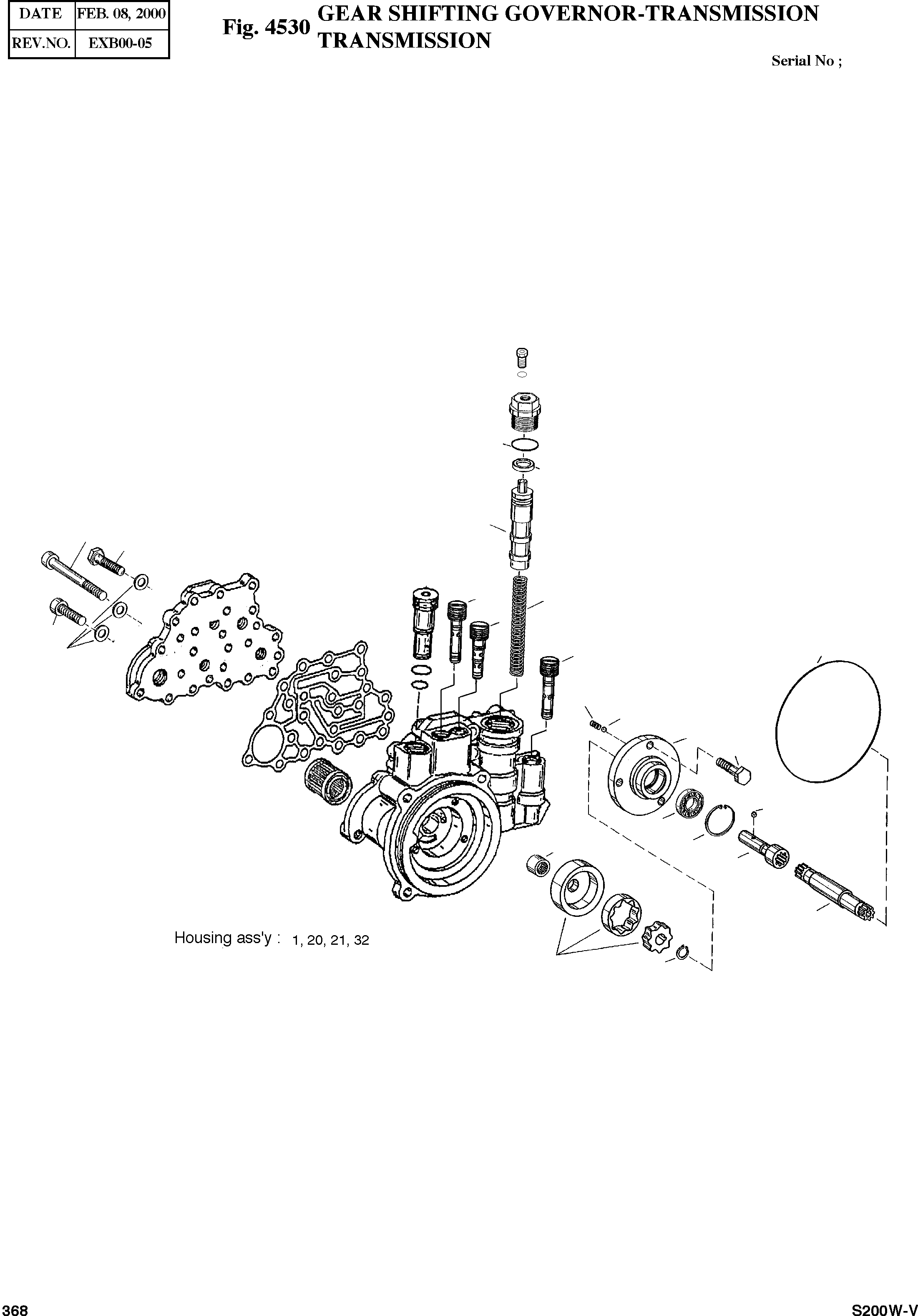

Запчасти Doosan Daewoo GEAR SHIFTING GOVERNOR-TRANSMISSION HYDRAULIC PARTS

1

4143 342 089

HOUSING

desc: CARTER

1шт.

2

0501 312 883

GASKET

desc: JOINT

1шт.

3

0732 042 514

SPRING;COMPRESSION

desc: RESSORT PRESS.

1шт.

4

0736 304 110

PLUG;SCREW

desc: BOUCHON DE VIS

1шт.

5

0634 304 426

O-RING

desc: JOINT TORIQUE

1шт.

6

0636 302 031

PLUG;SCREW

desc: BOUCHON DE VIS

1шт.

7

0634 801 015

RING;SEALING

desc: BAGUE ETANCH.

1шт.

8

4143 342 067

PISTON

desc: PISTON

1шт.

9

0501 210 906

VALVE;PRESS. RELIEF

desc: SOUP.LIM.PRES.

1шт.

10

4143 242 008

VALVE;CHECK

desc: SOUP.ANTI-RET.

1шт.

11

4143 242 009

VLAVE;CHECK

desc: SOUP.ANTI-RET.

1шт.

12

4143 242 010

VLAVE;CHECK

desc: SOUP.ANTI-RET.

1шт.

13

0635 303 036

SLEEVE;NEEDLE

desc: DOUILLE A AIG.

1шт.

14

0501 209 267

ROTOR SET

desc: JEU DE ROTORS

1шт.

16

0635 460 002

BALL

desc: BILLE

4шт.

17

0632 041 108

SPRING;COMPRESSION

desc: RESSORT PRESS.

3шт.

18

0630 501 006

RING;RETAINING

desc: RONDELLE DE RETENUE

1шт.

19

0636 015 049

SCREW;HEX

desc: VIS HEXAGONALE

3шт.

20

4143 342 092

GASKET

desc: JOINT

1шт.

21

4143 342 091

COVER

desc: COUVERCLE

1шт.

22

0634 306 299

O-RING

desc: JOINT TORIQUE

1шт.

23

0636 101 028

SCREW;CAP M8X1.25X22

REP_PNO: S2208961

2шт.

24

0636 015 492

SCREW;HEX. M8X1.25X30

REP_PNO: S0509253

23шт.

25

0636 101 335

SCREW;CAP M8X1.25X80

REP_PNO: S2210261

2шт.

26

0770 032 995

WASHER M8

REP_PNO: S5010513

2шт.

27

4143 342 068

SHAFT;PUMP

desc: ARBRE DE POMPE

1шт.

28

4143 342 066

SHAFT;PUMP

desc: ARBRE DE POMPE

1шт.

29

4143 342 065

COVER;PUMP

desc: COUVERCLE POMPE

1шт.

30

0750 116 083

BEARING;BALL

desc: ROULEMENT A BILLES

1шт.

31

0630 502 013

RING;RETAINING

desc: RONDELLE DE RETENUE

1шт.

32

0501 210 564

FILTER;SCREEN

desc: FILTRE

1шт.

33

0634 303 194

O-RING

desc: JOINT TORIQUE

1шт.

34

0634 313 328

O-RING

desc: JOINT TORIQUE

1шт.

*

4143 342 089K

HOUSING ASS'Y

desc: ENSEMBLE DE CARTER

1шт.
