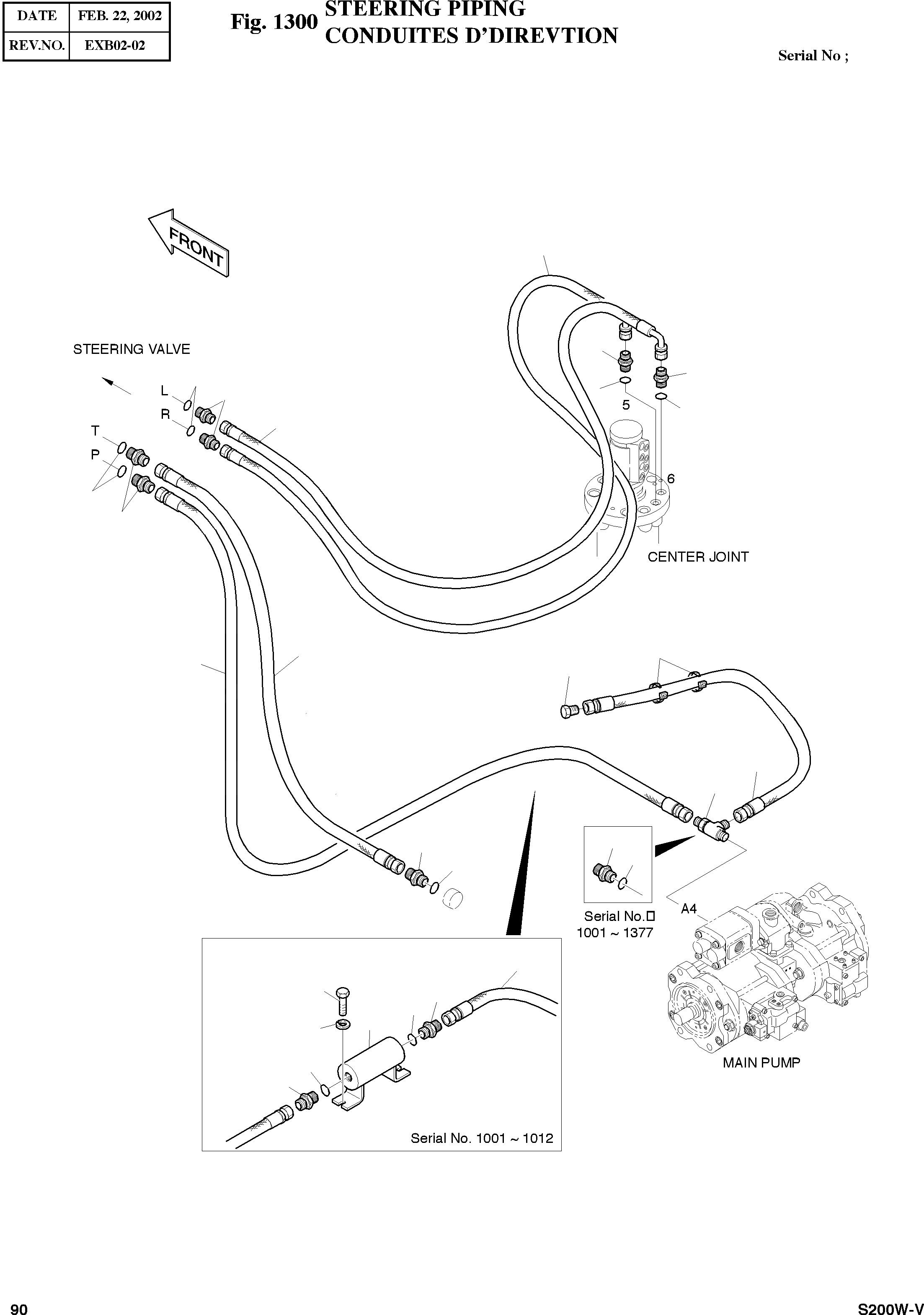

Запчасти Doosan Daewoo STEERING PIPING BODY PARTS

-

2400-1930A

STEERING PIPING

SC: D

-2шт.

1

2184-1036D223

HOSE PF3/8-1900L

desc: TUYAU FLEXIBLE

2шт.

2

2184-1026D401

HOSE PF1/2-2150L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1026D410

HOSE PF1/2-2700L

SERIAL: 1001-1012

1шт.

3

184-00018

HOSE PF1/2-4300L

SERIAL: 1013

1шт.

4

2181-1126D47

ADAPTER PFO3/4-PF1/2

desc: RACCORD ADAPTATEUR

2шт.

5

2181-1126D8

ADAPTER PFO/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

6

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

7

2181-1126D6

ADAPTER PFO1/2-PF1/2

SERIAL: 1001-1012

4шт.

7

2181-1126D6

ADAPTER PFO1/2-PF1/2

SERIAL: 1013-1377

2шт.

7

2181-1126D6

ADAPTER PFO1/2-PF1/2

SERIAL: 1378

1шт.

8

2180-1026D13

O-RING

desc: JOINT TORIQUE

4шт.

9

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

10

S8000181

O-RING

SERIAL: 1001-1012

4шт.

10

S8000181

O-RING

SERIAL: 1013

2шт.

11

2184-1026D361

HOSE PF1/2-1200L

SERIAL: 1001-1012

1шт.

12

2203-1711

MUFFLER

SERIAL: 1001-1012

1шт.

13

S0512053

BOLT M10X1.5X25

SERIAL: 1001-1012

2шт.

14

S5102603

WASHER;SPRING M10

SERIAL: 1001-1012

2шт.

15

2184-1026D313

HOSE PF1/2-750L

SERIAL: 1378

1шт.

16

2181-1951D5

TEE 3PF1/2

SERIAL: 1378

1шт.

17

2181-2339D3

PLUG PF1/2

SERIAL: 1378

1шт.

18

2124-1084D3

CLIP;BAND

SERIAL: 1378

2шт.
