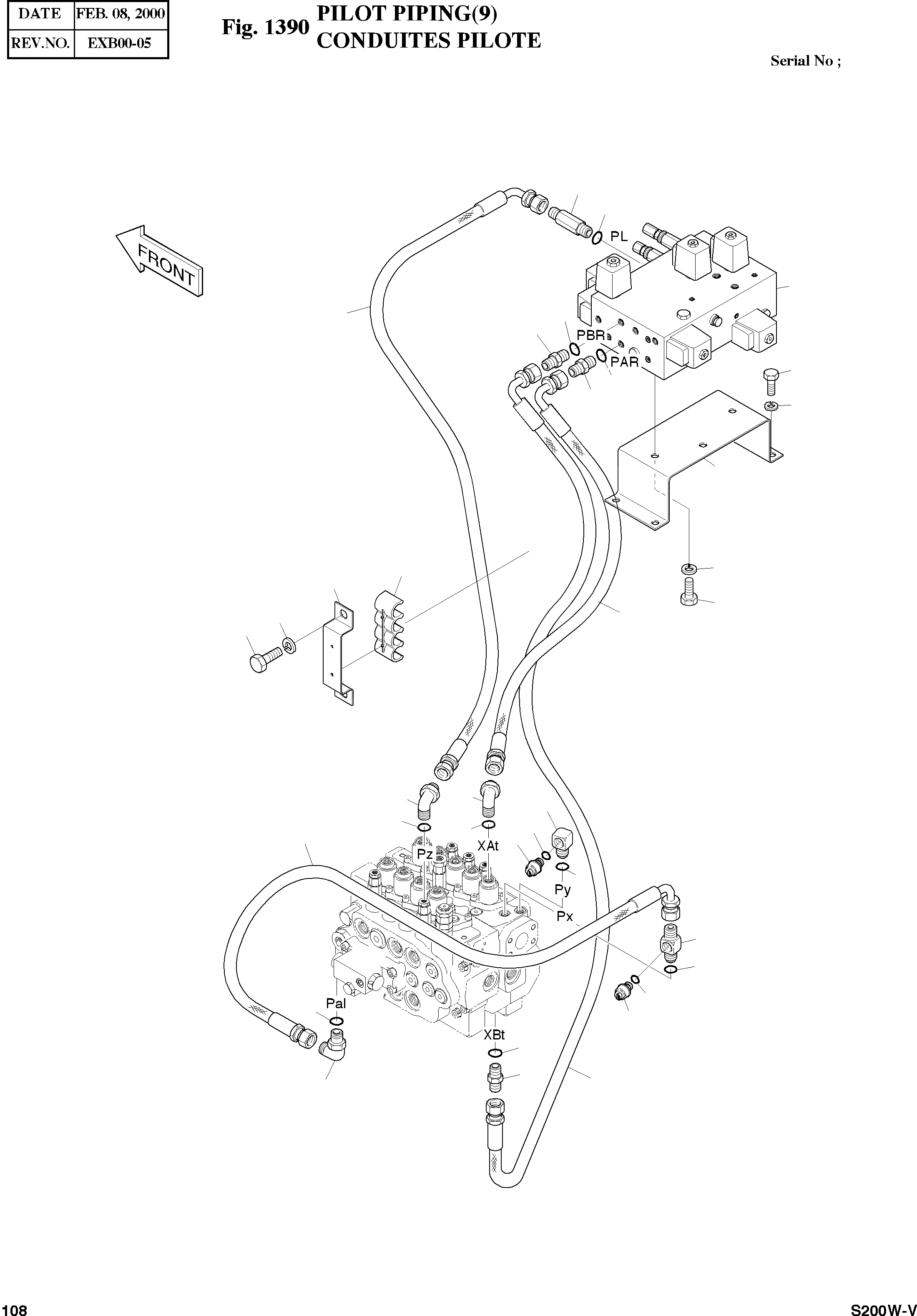

Запчасти Doosan Daewoo PILOT PIPING(9) BODY PARTS

-

2400-1929C

PILOT PIPING

SC: D

-2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

9шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

24

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

25

2181-1126D36

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

26

2420-9324E

VALVE;PILOT & T/M SUPPLY

desc: VANNE

1шт.

27

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

7шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

7шт.

29

2197-2041A

BRACKET

desc: SUPPORT

1шт.

31

2181-1126D34

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

50

2549-9112

SWITCH;PRESS

desc: INTERRUPTEUR

2шт.

51

2181-2295D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

52

2181-2635

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

84

2184-1046D151

HOSE PF1/4-2080L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1046D149

HOSE PF1/4-1800L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1046D188

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

97

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

117

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

118

2124-1594A

CLAMP

desc: ATTACHE DE TUYAU

1шт.

119

2124-1595A

CLAMP

desc: ATTACHE DE TUYAU

1шт.

133

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.
