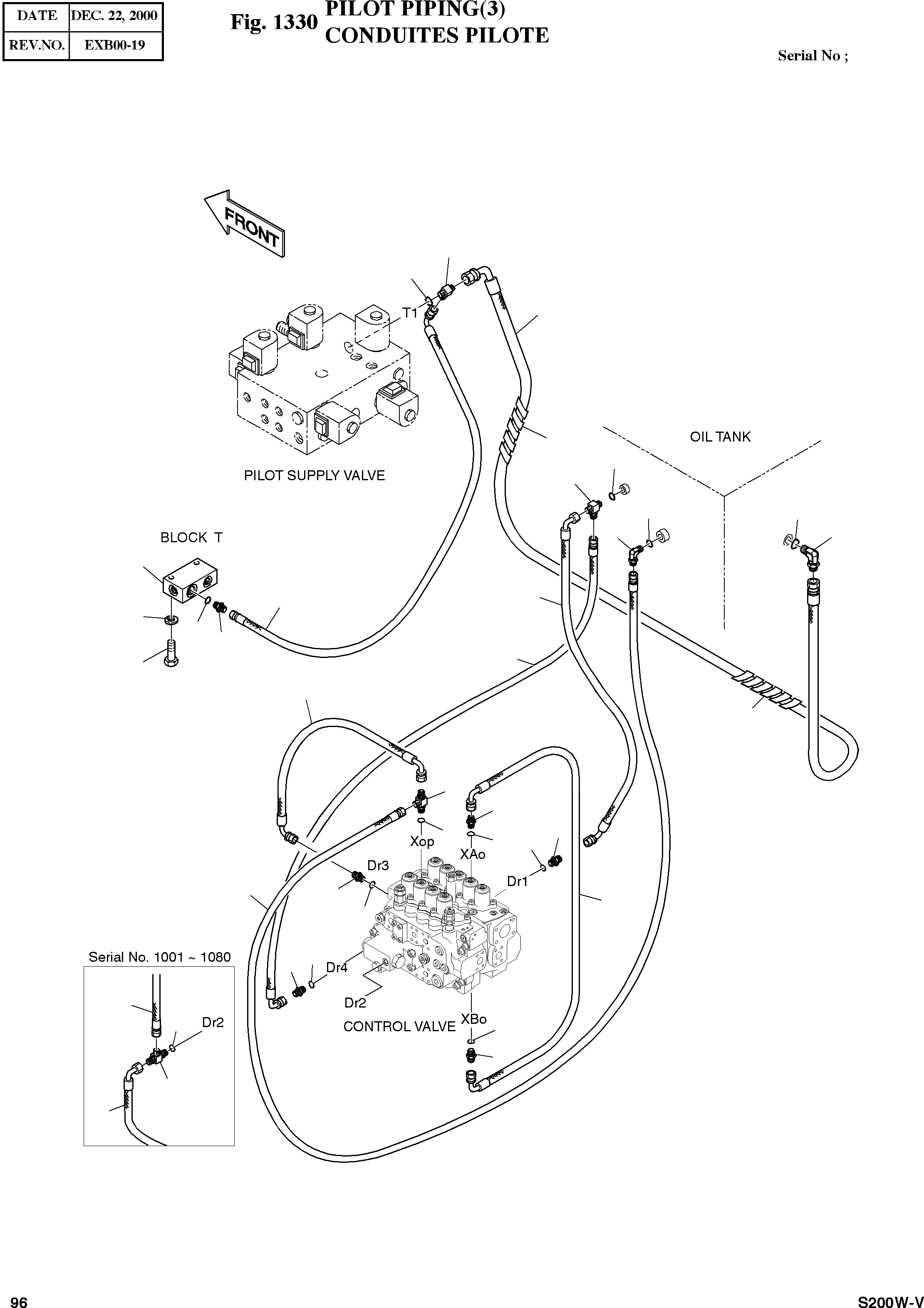

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

2400-1929C

PILOT PIPING

SC: D

-2шт.

5

S8000181

O-RING

desc: JOINT TORIQUE

3шт.

6

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

13

S8000111

O-RING

SERIAL: 1001-1080

5шт.

13

S8000111

O-RING

SERIAL: 1081

4шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

21

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

25

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

47

2181-1951D5

TEE PFO1/2-2PF1/2

desc: TE

1шт.

53

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

55

2181-1951D1

TEE PFO1/4-2PF1/4

SERIAL: 1001-1080

1шт.

56

2181-1951D7

TEE PFO3/8-2PF1/4

desc: TE

1шт.

58

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

2шт.

59

2423-1470

BLOCK

desc: BLOC

1шт.

75

2184-1036D353

HOSE PF1/2-2500L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1036D353

HOSE PF1/2-2500L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1045D36

HOSE PF1/4-550L

SERIAL: 1001-1080

1шт.

91

2184-1045D157

HOSE PF1/4-1500L

SERIAL: 1081

1шт.

93

2184-1061D82

HOSE PF3/8-400L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1046D108

HOSE PF1/4-1300L

SERIAL: 1001-1080

1шт.

95

2184-1061D253

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

96

2184-1061D73

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

127

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

128

2181-1951D6

TEE PFO3/8-PF3/8-PF1/4

desc: TE

1шт.

133

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

137

2158-1003D35

PROTECTOR;HOSE

SERIAL: 1041

2шт.
