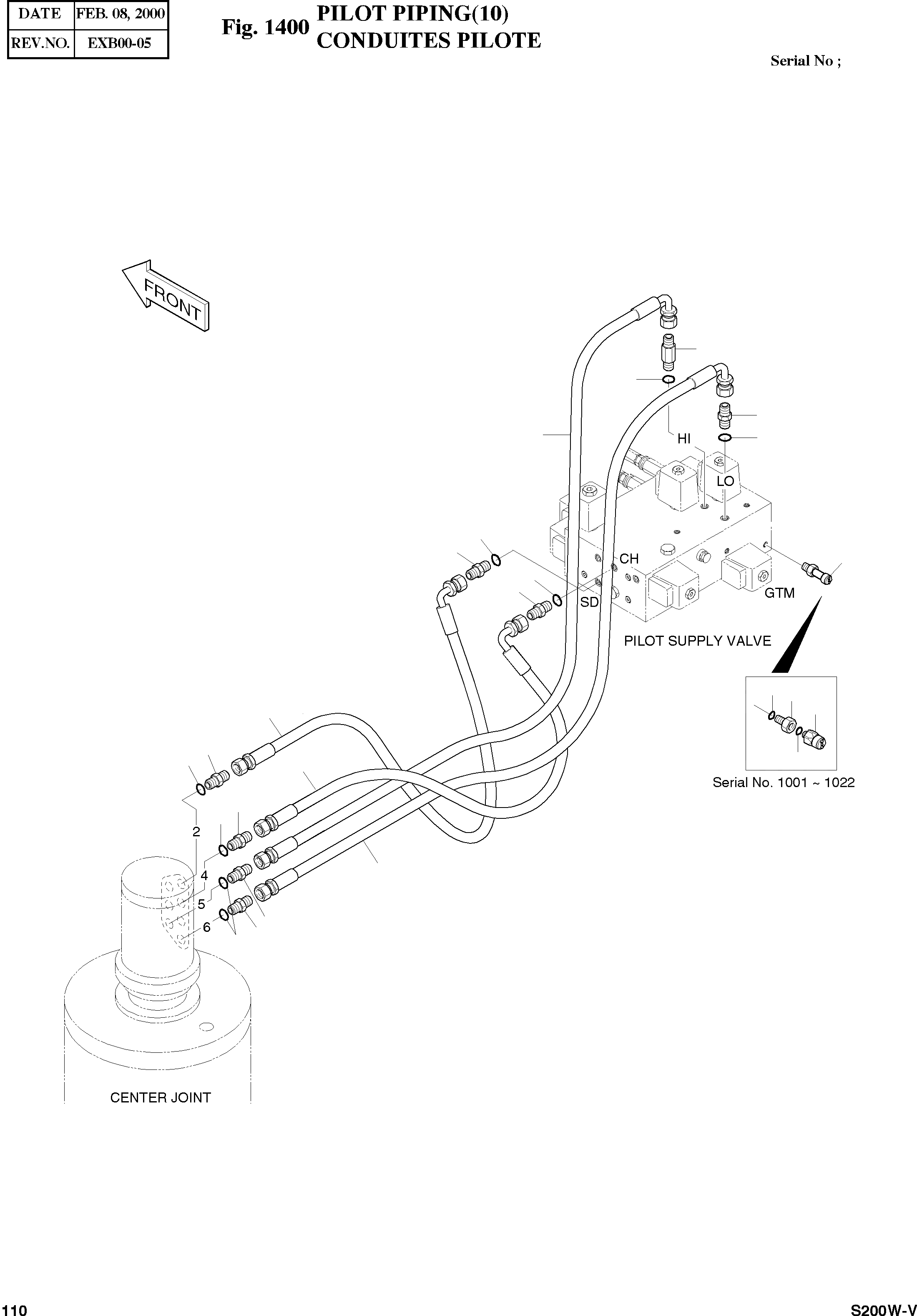

Запчасти Doosan Daewoo PILOT PIPING(10) BODY PARTS

-

2400-1929C

PILOT PIPING

SC: D

-2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

10

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

11

2181-1126D27

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

13

S8000111

O-RING

SERIAL: 1001-1022

5шт.

13

S8000111

O-RING

SERIAL: 1023

4шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

30

2181-1126D28

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

31

2181-1126D34

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

33

2181-2489

REDUCER

SERIAL: 1001-1022

1шт.

34

2549-1135D6

SWITCH;PRESS

SERIAL: 1001-1022

1шт.

34

547-00001

SENSOR;PRESSURE

SERIAL: 1023

1шт.

35

S8180161

PACKING

SERIAL: 1001-1022

1шт.

79

2184-1061D101

HOSE PF1/4-950L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1096D92

HOSE PF3/8-1150L

desc: TUYAU FLEXIBLE

1шт.

81

2184-1096D92

HOSE PF3/8-1150L

desc: TUYAU FLEXIBLE

1шт.
