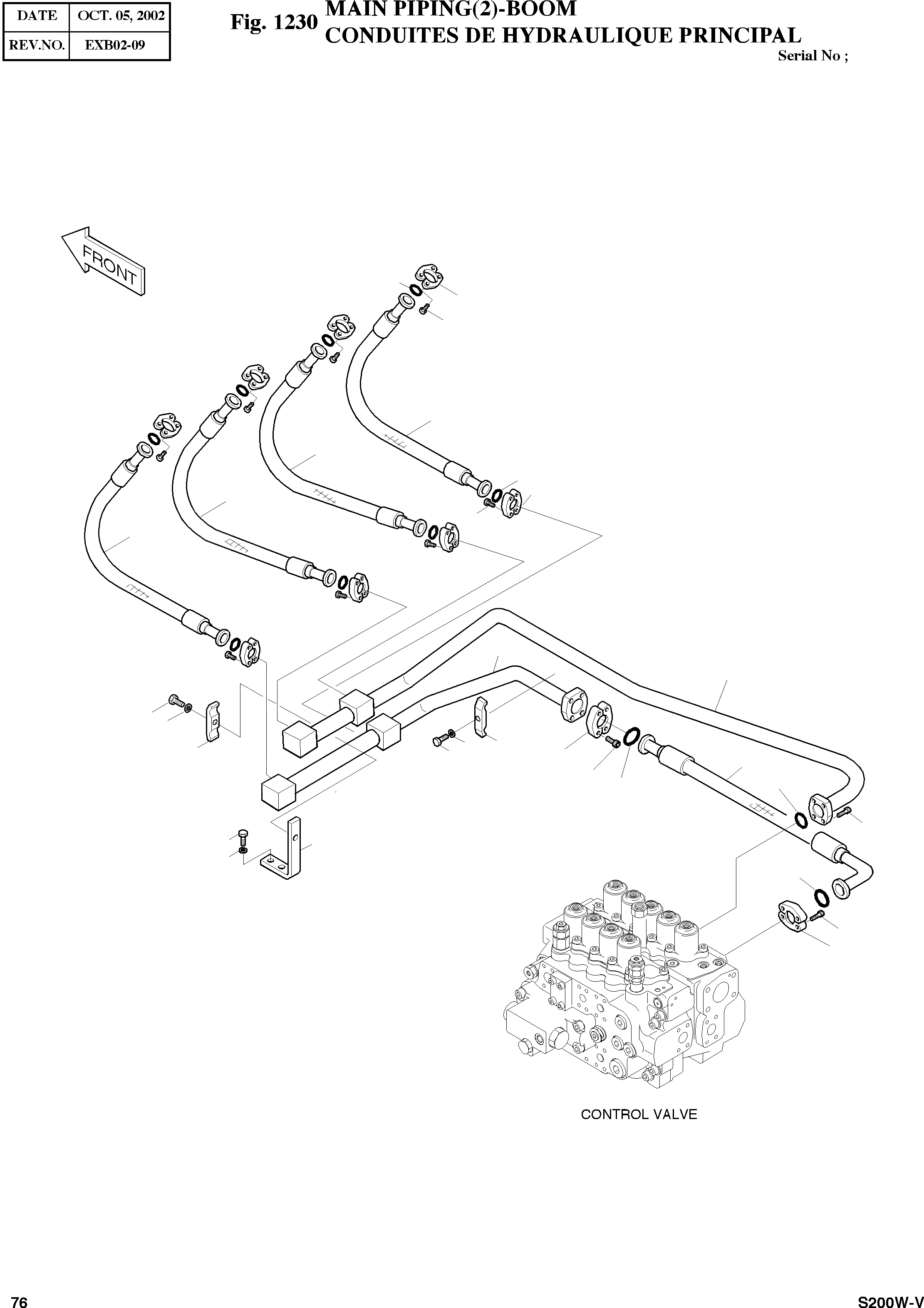

Запчасти Doosan Daewoo MAIN PIPING(2)-BOOM BODY PARTS

-

2400-1934A

MAIN PIPING

SC: D

-2шт.

2

2140-1458

PIPE

SERIAL: 1001-1569

1шт.

2

2140-1458A

PIPE

SERIAL: 1570

1шт.

3

2140-1457

PIPE

desc: TUYAU

1шт.

17

2184-1082D93

HOSE PF1-710L

desc: TUYAU FLEXIBLE

1шт.

18

2195-3525C

BRACKET

desc: SUPPORT

1шт.

19

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

24

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

2шт.

25

2124-1025D5

CLAMP

desc: ATTACHE DE TUBE

2шт.

28

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1310

24шт.

28

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1311

24шт.

29

2180-1026D19

O-RING

desc: JOINT TORIQUE

3шт.

31

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1001-1310

16шт.

31

S2212066

BOLT;SOCKET M10X1.5X25

SERIAL: 1311

16шт.

32

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1001-1310

4шт.

32

S2212366

BOLT;SOCKET M10X1.5X35

SERIAL: 1311

4шт.

33

2180-1026D2

O-RING

desc: JOINT TORIQUE

8шт.

34

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

16шт.

39

2181-9083

FLANGE;SPLIT

desc: FLASQUE

4шт.

46

2184-1081D116

HOSE PF3/4-715L

SERIAL: 1001-1115

2шт.

46

2184-1081D57

HOSE PF3/4-750L

SERIAL: 1116

2шт.

47

2184-1081D117

HOSE PF3/4-740L

SERIAL: 1001-1115

2шт.

47

2184-1081D140

HOSE PF3/4-790L

SERIAL: 1116

2шт.
