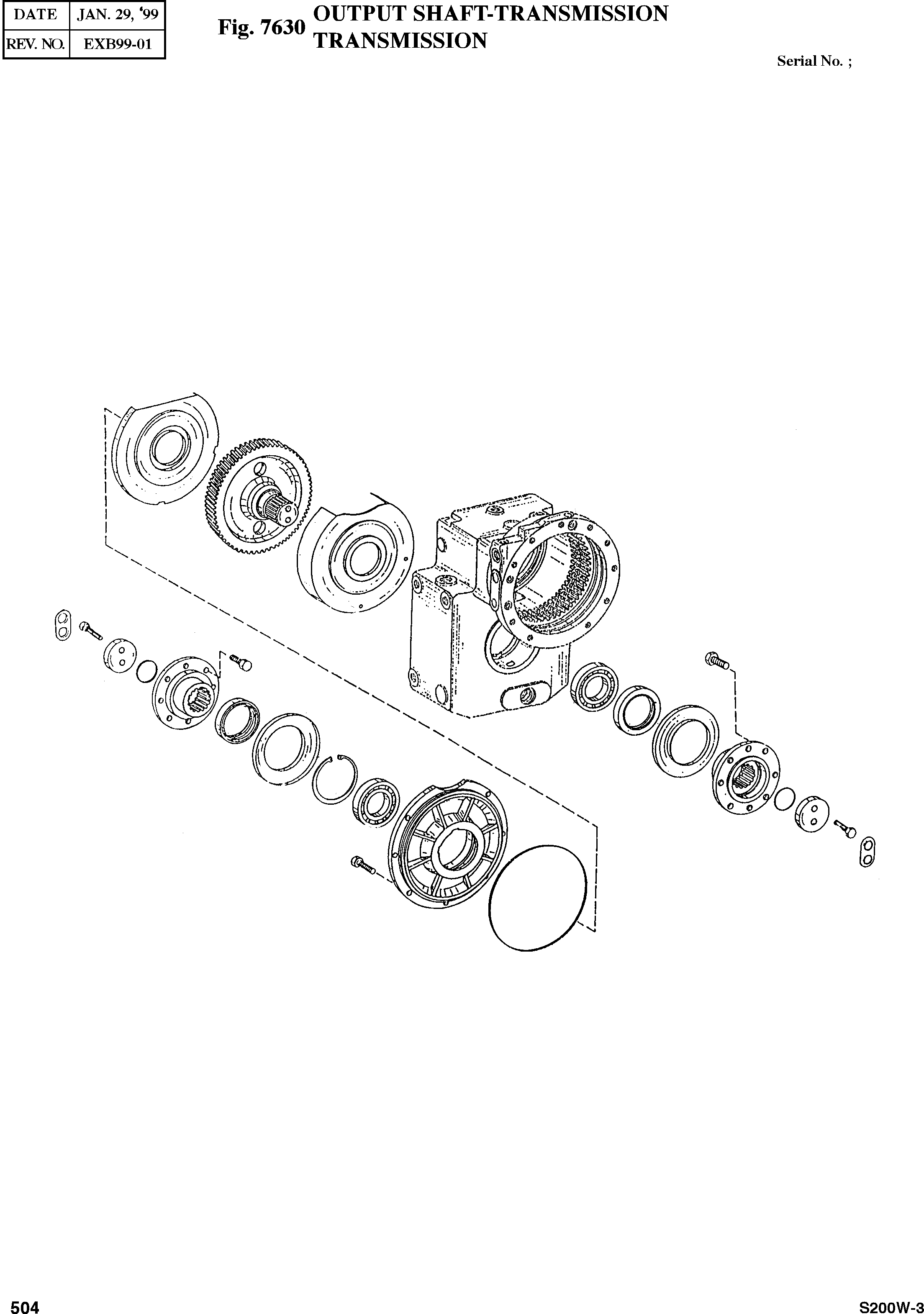

Запчасти Doosan Daewoo OUTPUT SHAFT-TRANSMISSION HYDRAULIC PARTS

1

4143 303 006

COVER

desc: COUVERCLE

1шт.

2

0750 116 254

BEARING;ROLLER

desc: ROULEMENT A BILLES

2шт.

3

0734 319 387

SEAL;SHAFT

ICA: P

2шт.

3

0750 111 358

SEAL;SHAFT

ICA: P

2шт.

3

0750 111 409

SEAL;SHAFT(30707~)

desc: RACCORD UNION

2шт.

4

4143 303 048

PLATE;DEFLECTOR

desc: PLAQUE

2шт.

5

4143 303 021

FLANGE;OUTPUT

desc: BRIDE

2шт.

6

0636 021 158

SCREW;HEX

desc: VIS

16шт.

7

0634 313 092

O-RING

desc: JOINT TORIQUE

2шт.

8

4112 303 216

WASHER

desc: RONDELLE PLATE

2шт.

9

0636 015 130

SCREW;HEX

desc: VIS HEXAGONALE

4шт.

10

1269 302 164

WASHER;TAB

desc: RONDELLE

2шт.

11

0636 016 011

SCREW;HEX

desc: VIS HEXAGONALE

7шт.

12

0630 502 047

RING;RETAINING

desc: BAGUE CIRCLIPS

1шт.

13

0634 304 243

O-RING

desc: JOINT TORIQUE

1шт.

14

4143 303 020

SHEET;SCREEN

desc: FEUILLE

1шт.

15

4143 303 026

GEAR;HELICAL

desc: PIGNON HELICOIDAL

1шт.

16

4143 303 005

DEFLECTOR;OIL

desc: DEFLECTEUR

1шт.
