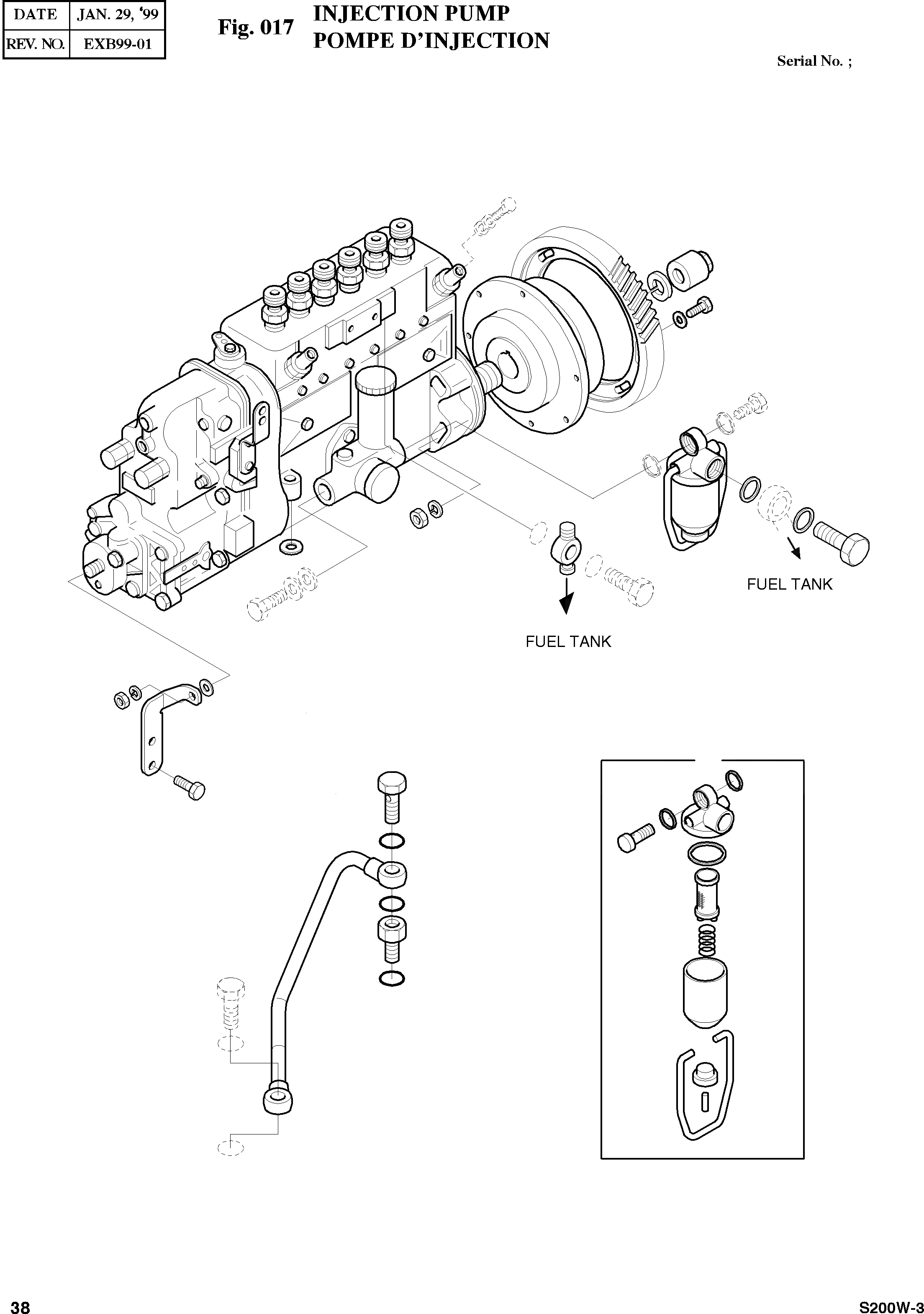

Запчасти Doosan Daewoo INJECTION PUMP ENGINE PARTS

1

65.11101-7244

PUMP;INJECTION

desc: POMPE D'INJECTION

1шт.

2

65.12501-7019

FUEL STRANINER ASS'Y

desc: ENSEMBLE FILTRE A GAZOLE

1шт.

3

06.78140-2404

SCREW;HOLLOW M14X1.5

desc: VIS CREUSE

1шт.

4

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

5

65.98101-0008

DOUBLE BANJO UNION ASS'Y

desc: ENSEMBLE RACCORD BANJO DOUBLE

1шт.

6

06.15010-2312

WASHER 10.5

desc: RONDELLE PLATE

1шт.

7

06.01923-3215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

2шт.

8

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

5шт.

9

06.11063-9215

NUT;HEX. M10X1.25

desc: ECROU

5шт.

10

65.11401-0032

BRACKET;F.I.P

desc: SUPPORT

1шт.

12

65.90001-6004

BOLT;HEX

desc: BOULON A 6 PANS

6шт.

13

65.90710-0032

WASHER;PLAIN

desc: RONDELLE PLATE

6шт.

14

65.11301-0061

GEAR;DRIVE

desc: ROULEMENT A ROULEAUX

1шт.

15

65.11106-6001

RING;COUPLING I/P

desc: BAGUE

1шт.

18

65.05701-0057

HOSE;OIL

desc: TUYAU FLEXIBLE

1шт.

19

65.98130-0029

ADAPTER

desc: RACCORD

1шт.

20

65.98150-0028

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

21

06.56180-0714

RING;SEAL

desc: BAGUE D'ETANCHEITE

3шт.

22

06.78140-2404

SCREW;HOLLOW A8

desc: VIS CREUSE

1шт.

23

06.56190-0706

RING;SEAL

desc: . BAGUE D'ETANCHEITE

2шт.

24

81.12903-0001

GASKET

desc: . JOINT

1шт.

25

81.12104-0003

STRAINER;FILTER

desc: . CREPINE DE FILTRATION

1шт.

26

81.12102-0002

BOWEL;FILTER(GLASS)

desc: . COUPELLE(VERRE)

1шт.
