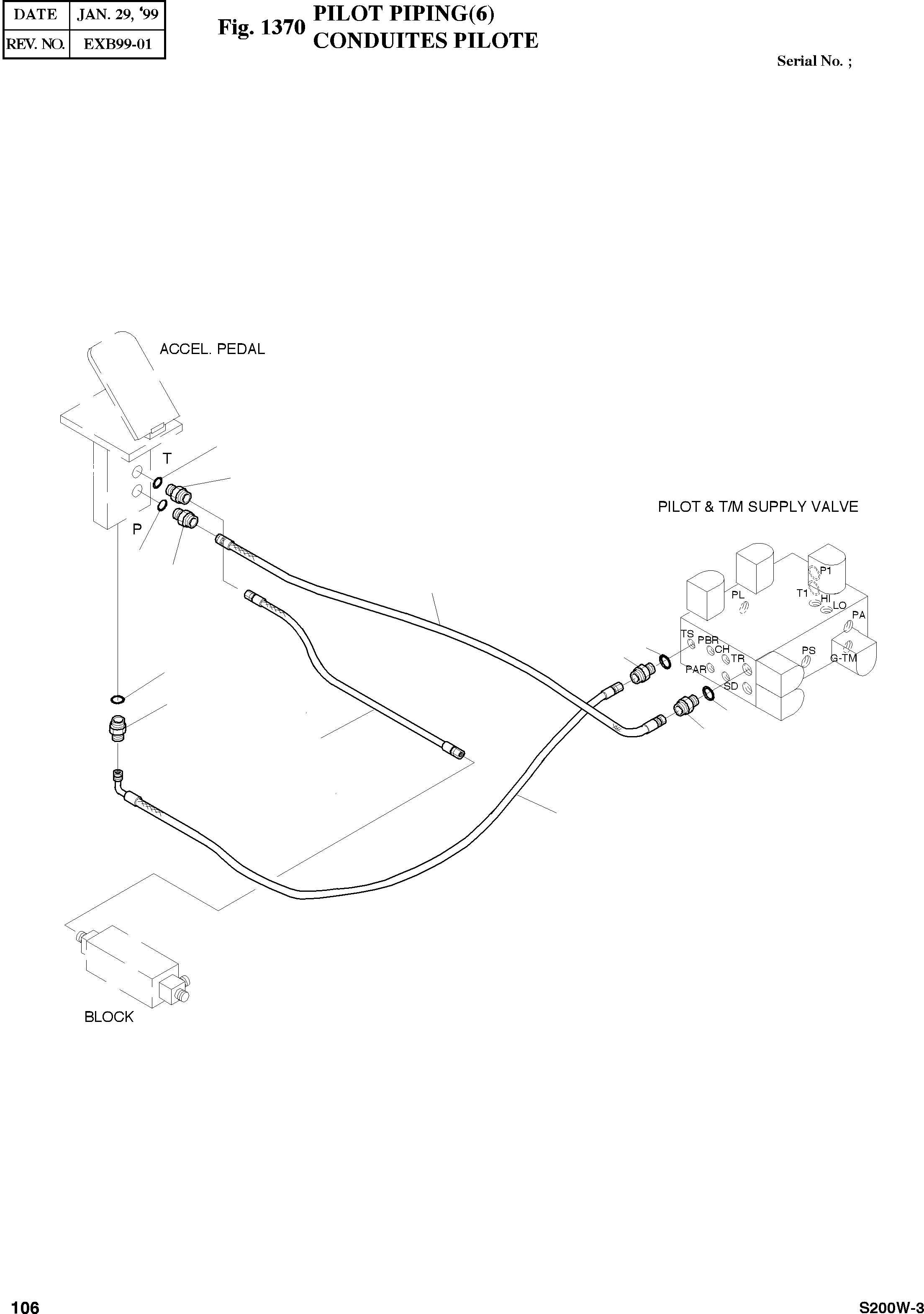

Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

2400-4202

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

11

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD

5шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

5шт.

21

2184-1045D64

HOSE PF1/4-1080L

desc: TUYAU FLEXIBLE

1шт.

36

2181-1917D4

ADAPTER PF1/4

desc: RACCORD

3шт.

37

S8180221

PACKING

desc: RONDELLE ETANCHE

3шт.

88

2184-1046D146

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

96

2184-1045D124

HOSE PF1/4-2100L

desc: TUYAU FLEXIBLE

1шт.
