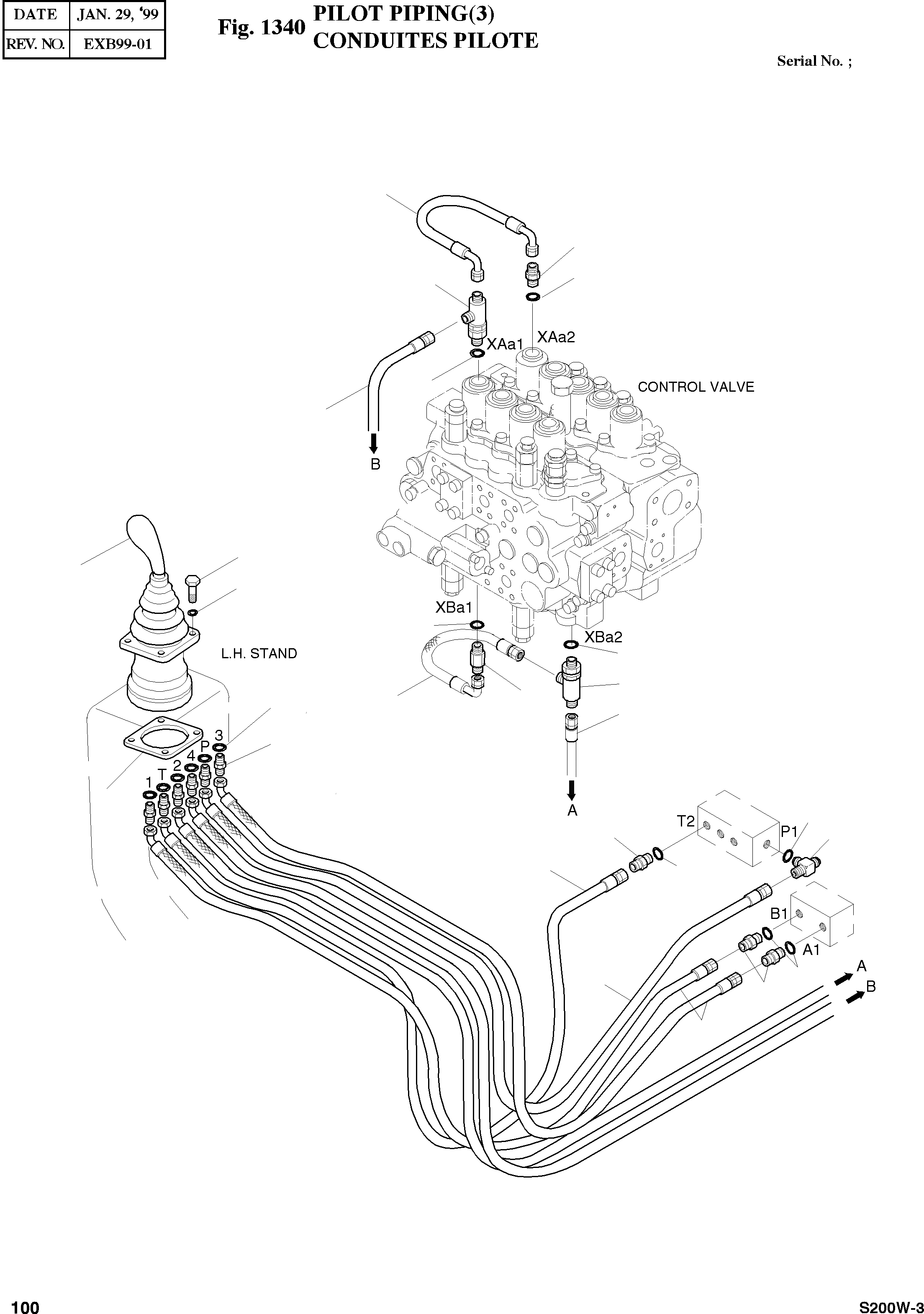

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

2400-4202

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

11

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD

11шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

14шт.

40

2420-9359

VALVE;REMOCON(L.H.)

SERIAL: 1-280

1шт.

40

2420-9359A

VALVE;REMOCON(L.H.)

SERIAL: 281

1шт.

42

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

44

2184-1249D19

HOSE 1/4. 1820L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1249D3

HOSE 1/4. 3600L

desc: TUYAU FLEXIBLE

1шт.

53

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

71

2181-1951D1

TEE PFO. 2-PF1/4

desc: TE

2шт.

72

2184-1249D6

HOSE PF1/4-3300L

desc: TUYAU FLEXIBLE

1шт.

73

2181-2281D1

TEE 2PF 1/4. PFO 1/4

desc: TE

1шт.

90

2184-1046D198

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

103

2184-1249D12

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

2шт.

104

2184-1249D10

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

107

2184-1061D4

HOSE PF1/4-405L

desc: TUYAU FLEXIBLE

1шт.

114

2420-9378

VALVE;SOCKLESS D1.2

SERIAL: 1-90

1шт.

114

2420-9378A

VALVE;SOCKLESS D1.2

SERIAL: 91

1шт.
