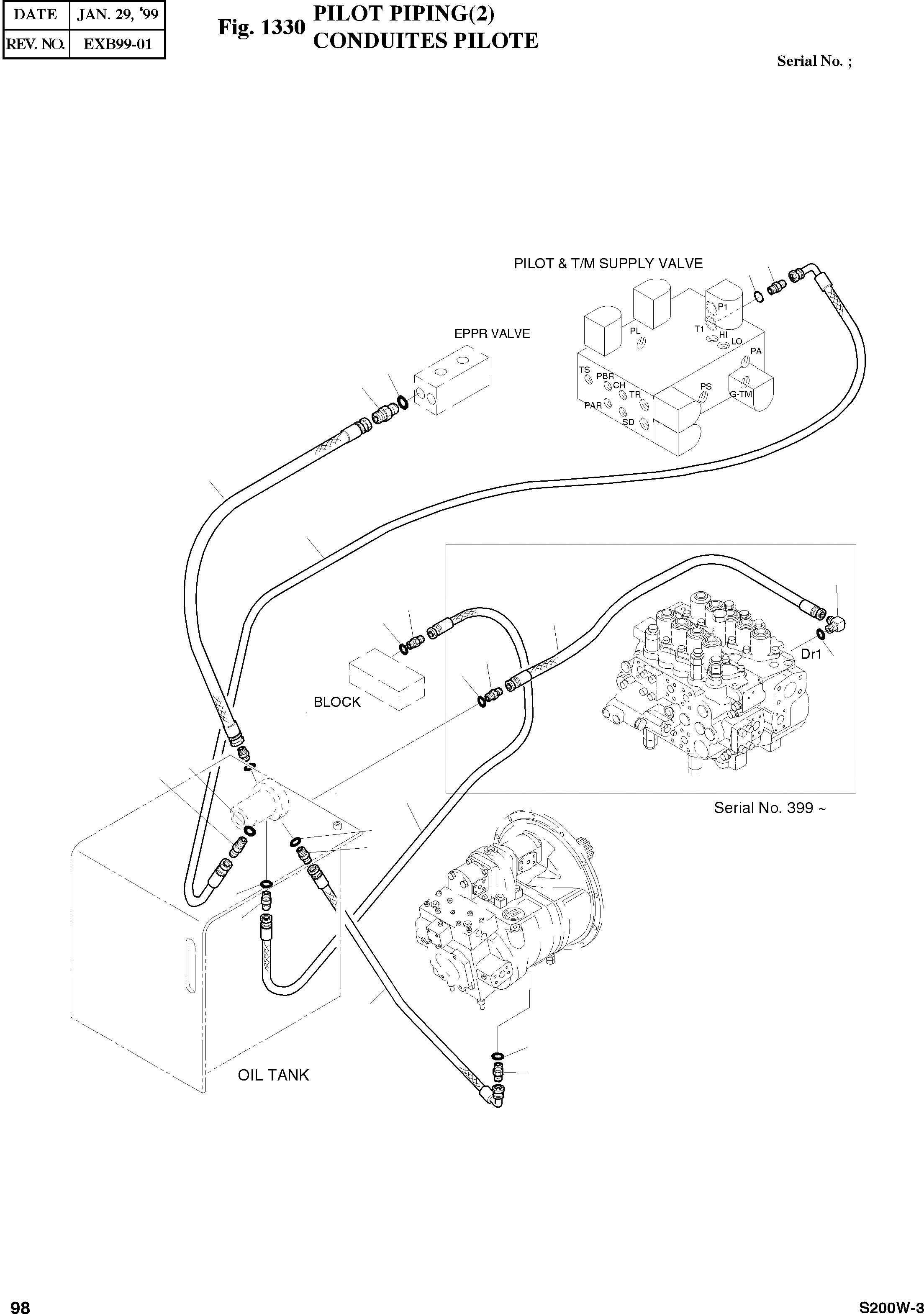

Запчасти Doosan Daewoo PILOT PIPING(2) BODY PARTS

-

2400-4202

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

6

S8000181

O-RING P18

REP_PNO: 8202-014

4шт.

7

2181-1126D37

ADAPTER PF1/2-PF1/4

desc: RACCORD

1шт.

9

2181-1126D7

ADAPTER PFO. PF3/8

desc: RACCORD

2шт.

10

S8000141

O-RING P14

SERIAL: 1-398

3шт.

10

S8000141

O-RING P14

SERIAL: 399

4шт.

11

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD

1шт.

12

S8000111

O-RING P11

SERIAL: 1-398

1шт.

12

S8000111

O-RING P11

SERIAL: 399

2шт.

19

2181-1126D6

ADAPTER PFO. PF1/2

desc: RACCORD

3шт.

43

2181-1126D20

ADAPTER PFO3/8. PF1/2

desc: RACCORD

1шт.

87

2184-1036D66

HOSE PF1/2-2900L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1046D79

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

97

2184-1026D9

HOSE PF1/2-1700L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1036D113

HOSE PF3/8-1730L

desc: TUYAU FLEXIBLE

1шт.

105

2181-1702D3

ELBOW PF3/8-PFO1/4

SERIAL: 399

1шт.

118

2184-1026D129

HOSE PF3/8-1350L

SERIAL: 399

1шт.
