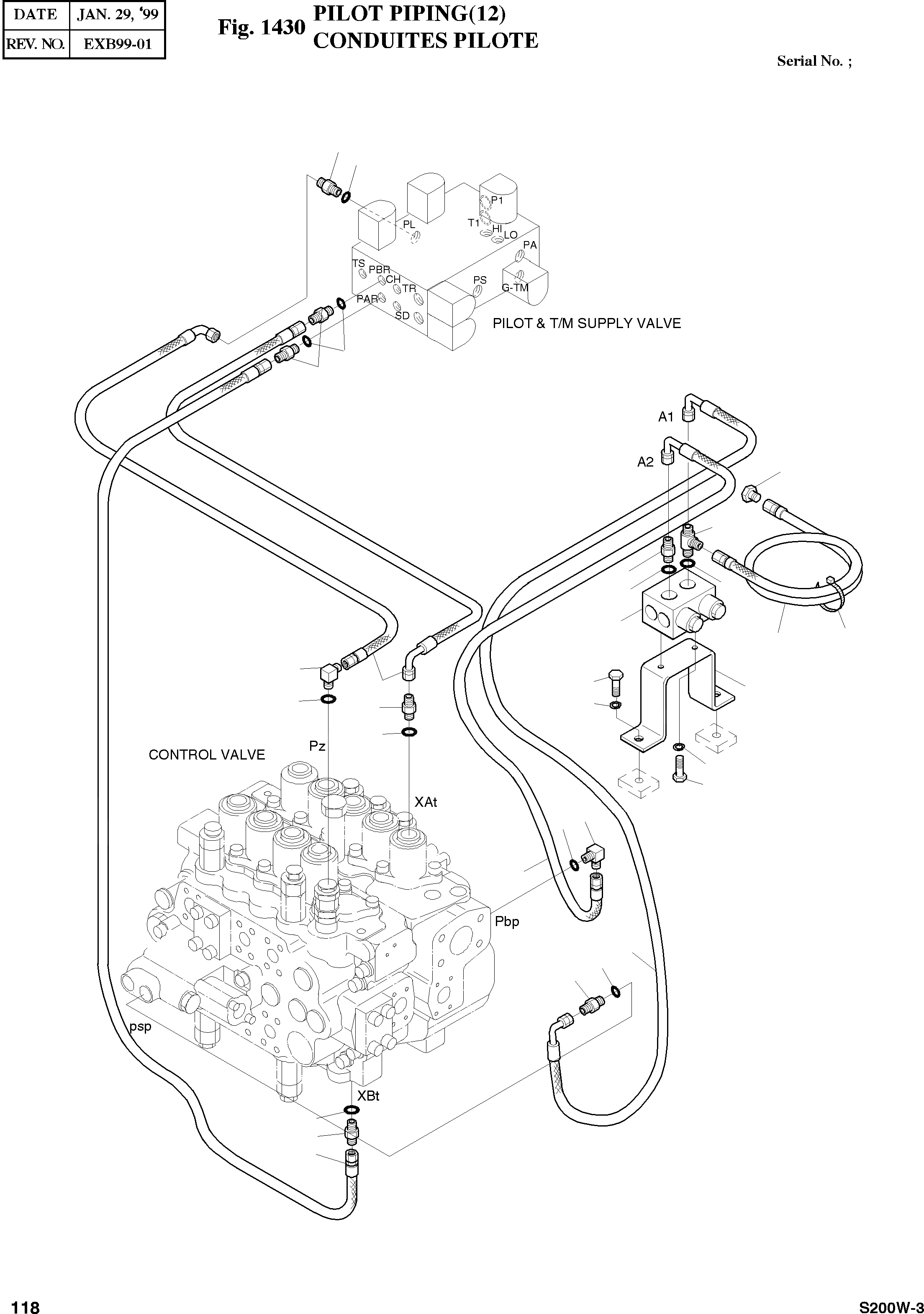

Запчасти Doosan Daewoo PILOT PIPING(12) BODY PARTS

-

2400-4202

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

11

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD

7шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

9шт.

18

2181-2339D1

PLUG PF1/4

desc: BOUCHON

1шт.

21

2184-1045D64

HOSE PF1/4-1080L

desc: TUYAU FLEXIBLE

1шт.

22

2420-9313

VALVE;SOLENOID

desc: SOUPAPE A SOLENOIDE

1шт.

23

2195-4698

BRACKET

desc: SUPPORT

1шт.

24

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

2шт.

25

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

26

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

27

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

39

2124-1084D2

CLIP;BAND

desc: ATTACHE

1шт.

48

2181-1702D4

ELBOW PFO. PF1/4

desc: COUDE

1шт.

71

2181-1951D1

TEE PFO. 2-PF1/4

desc: TE

1шт.

84

2184-1061D102

HOSE PF1/4-2300L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1046D146

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

2шт.

92

2184-1045D105

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

110

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.
