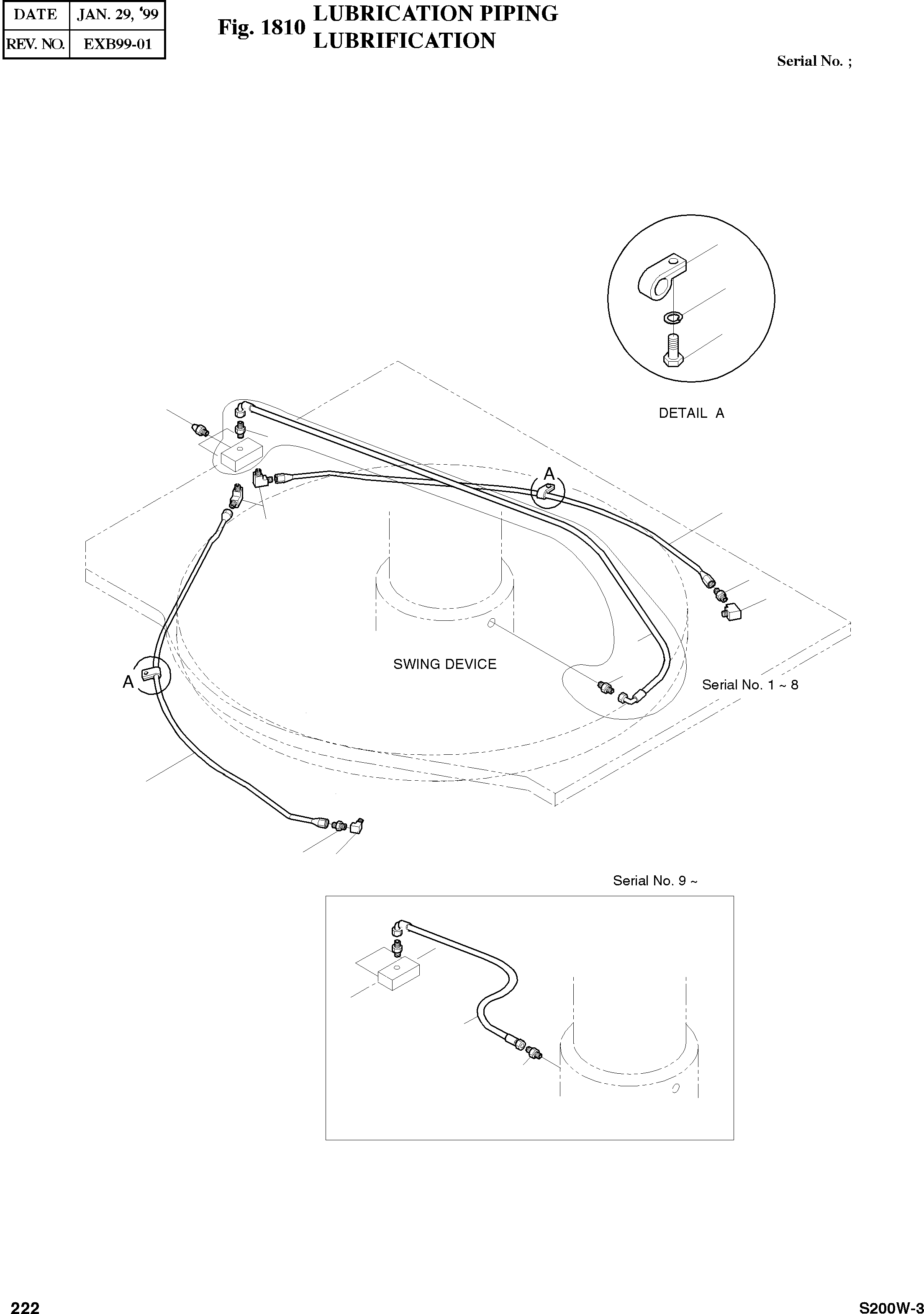

Запчасти Doosan Daewoo LUBRICATION PIPING BODY PARTS

-

2400-4936

PIPING;LUBRICATION

desc: LUBRIFICATION

-2шт.

1

2183-3990

PIPE

desc: TUYAU

1шт.

2

2181-1544

ADAPTER PT1/8. M14X1.5

desc: RACCORD

4шт.

3

2181-1528A

ELBOW PT1/8 M/F

desc: COUDE

2шт.

4

2183-3991

PIPE

desc: TUYAU

1шт.

5

S6710042

NIPPLE;GREASE PT1/8

desc: GRAISSEUR

4шт.

6

2124-1027D2

CLIP;PIPE

desc: ATTACHE

2шт.

7

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

8

S0504353

BOLT M6X1.0X10

desc: BOULON A 6 PANS

2шт.

10

2184-1046D76

HOSE PF1/4-1200L

SERIAL: 1-8

1шт.

10

2184-1061D77

HOSE PF1/4-1700L

SERIAL: 9

1шт.

11

2181-1110D30

ADAPTER PT1/8 PF1/4

desc: RACCORD

1шт.

12

2181-1110D1

ADAPTER PT1/4 PF1/4

desc: RACCORD

1шт.
