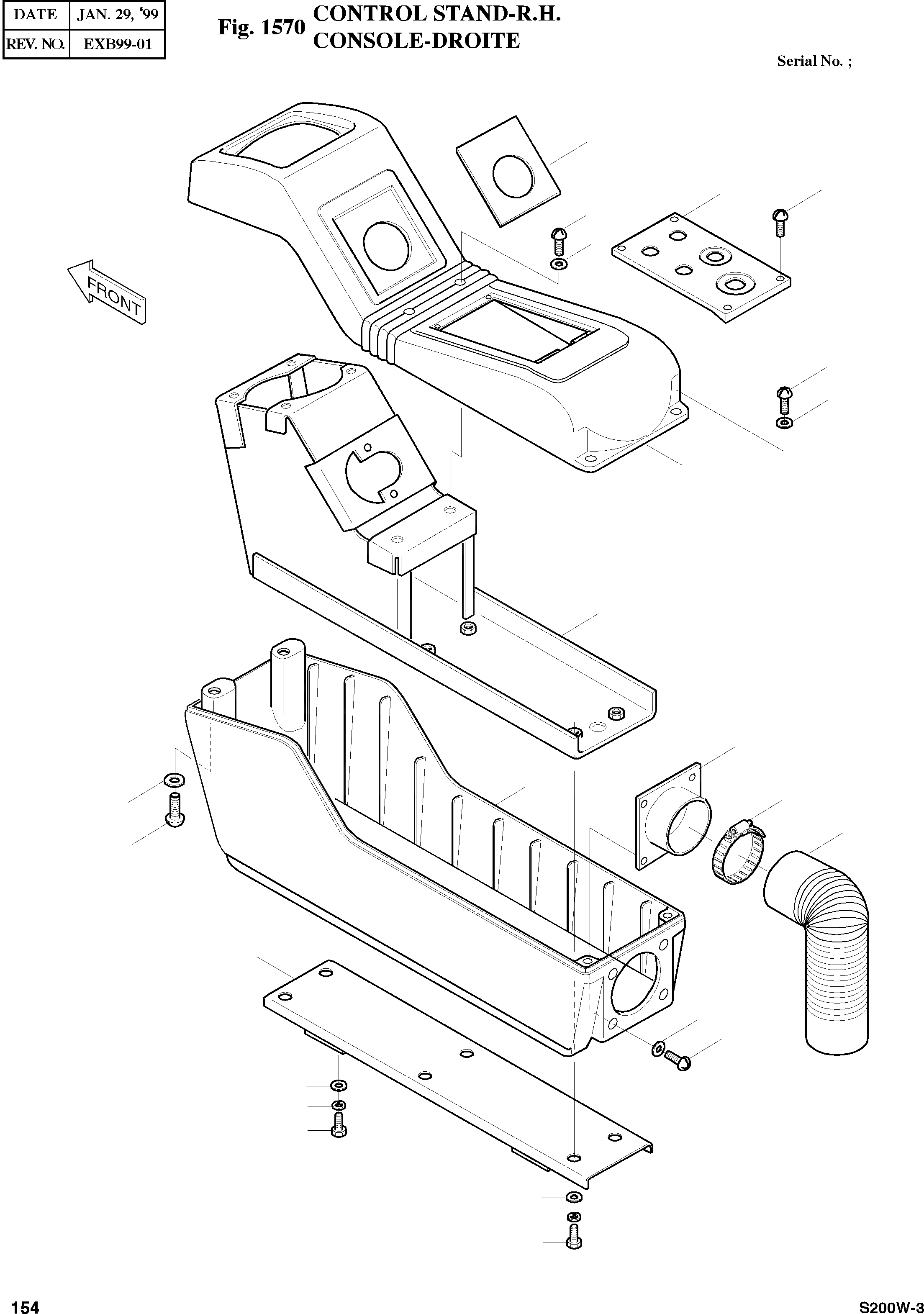

Запчасти Doosan Daewoo CONTROL STAND-R.H BODY PARTS

-

2195-3784

CONTROL STAND ASS'Y

desc: CONSOLE DE COMMANDE

1шт.

7

2125-1078B

CASE;UPPER

desc: CARTER

1шт.

8

2125-1079

CASE;LOWER

desc: CARTER

1шт.

9

2621-2746A

COVER;SWTICH(R)

desc: COUVERCLE

1шт.

12

2190-2576

PLATE;NAME

desc: PLAQUE SIGNALETIQUES

1шт.

15

2195-3772

BRACKET

desc: SUPPORT

1шт.

25

S3458843

SCREW M5X0.8X14

desc: VIS

6шт.

26

S5000213

WASHER;PLAIN M5

desc: RONDELLE PLATE

8шт.

36

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

10шт.

37

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

10шт.

42

2195-3763B

BRACKET

desc: SUPPORT

1шт.

48

2158-1017D2

HOSE

desc: TUYAU FLEXIBLE

1шт.

49

S8450053

CLAMP;HOSE

desc: COLLIER

2шт.

51

S0508953

BOLT M8X1.25X22

desc: BOULON A 6 PANS

6шт.

61

2195-3769

BRACKET(R)

desc: SUPPORT

1шт.

62

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

64

S3458863

SCREW M5X0.8X20

desc: VIS

4шт.

66

S3458353

SCREW M3X0.5X12

desc: VIS

4шт.
