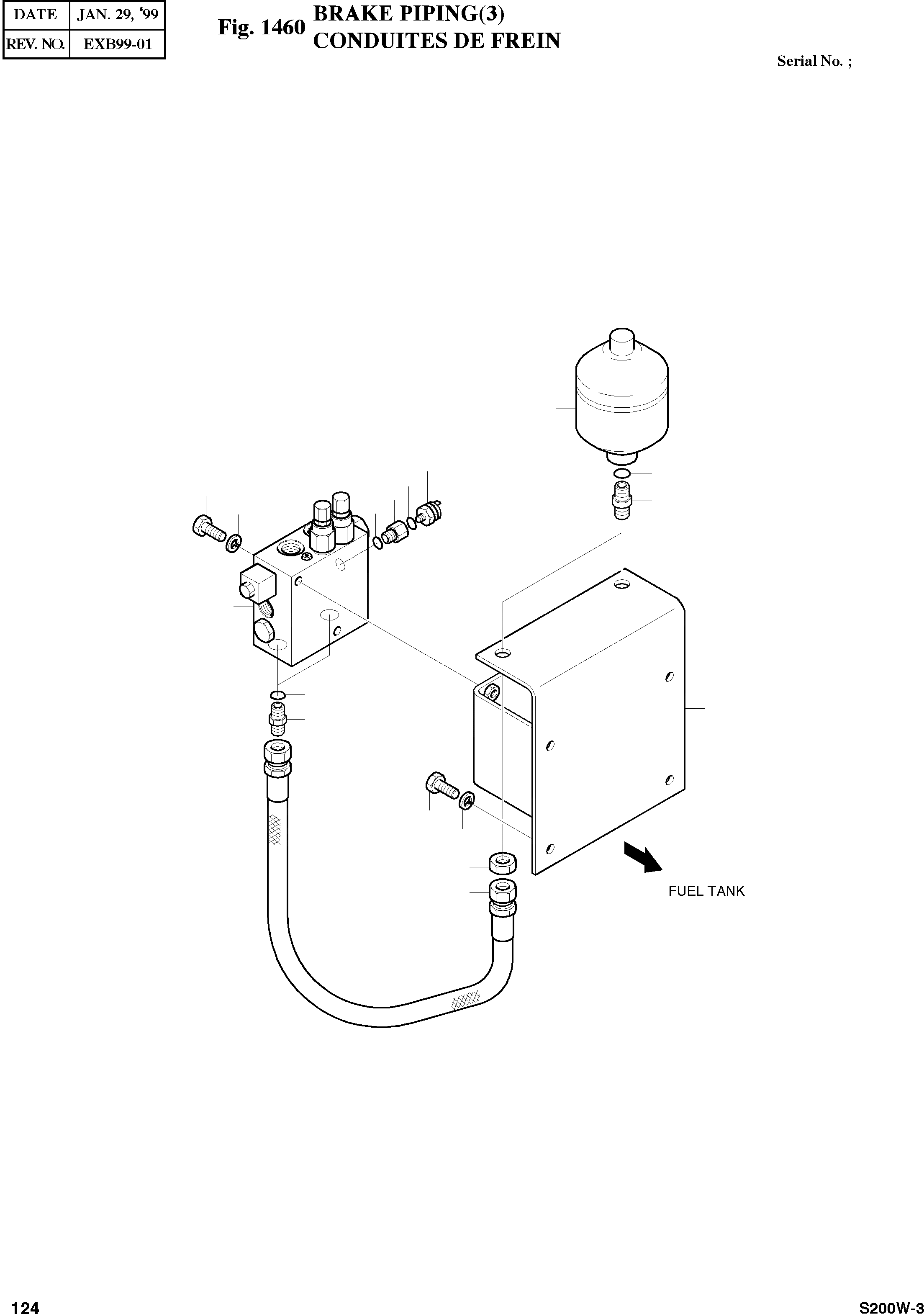

Запчасти Doosan Daewoo BRAKE PIPING(3) BODY PARTS

-

2400-4221

BRAKE PIPING

desc: CONDUITES DE FREINS

-2шт.

10

S8000141

O-RING P14

REP_PNO: 8202-011

4шт.

17

2460-9402

ACCUMULATOR 0.7L

SERIAL: 1-515

2шт.

17

2460-9034

ACCUMULATOR 0.75L.30bar

SERIAL: 516

2шт.

19

2181-1938D3

ADAPTER M18X1.5 PF1/2

desc: RACCORD

2шт.

20

S8000181

O-RING P18

REP_PNO: 8202-014

2шт.

21

2195-4832A

BRACKET

desc: SUPPORT

1шт.

22

S0511753

BOLT M10X1.5X18

desc: BOULON A 6 PANS

4шт.

23

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

7шт.

25

S8000111

O-RING P11

REP_PNO: 8202-009

1шт.

26

2181-2180

ADAPTER

desc: RACCORD

1шт.

27

S8180211

PACKING

desc: RONDELLE ETANCHE

1шт.

28

2549-9093

SWITCH;LOW PRESSURE

desc: INTERRUPTEUR

1шт.

29

2420-9325

BRAKE SUPPLY VALVE

SERIAL: 1-418

1шт.

29

2420-9325A

BRAKE SUPPLY VALVE

SERIAL: 419

1шт.

30

S2213561

BOLT;SOCKET M10X1.5X95

desc: BOULON A 6 PANS CREUX

3шт.

42

2121-1284

NUT PF3/8

desc: ECROU

2шт.

43

2184-1026D82

HOSE PF3/8-900L

desc: TUYAU FLEXIBLE

2шт.

44

2181-1127D23

ADAPTER PFO1/2. PF3/8

desc: RACCORD

2шт.
