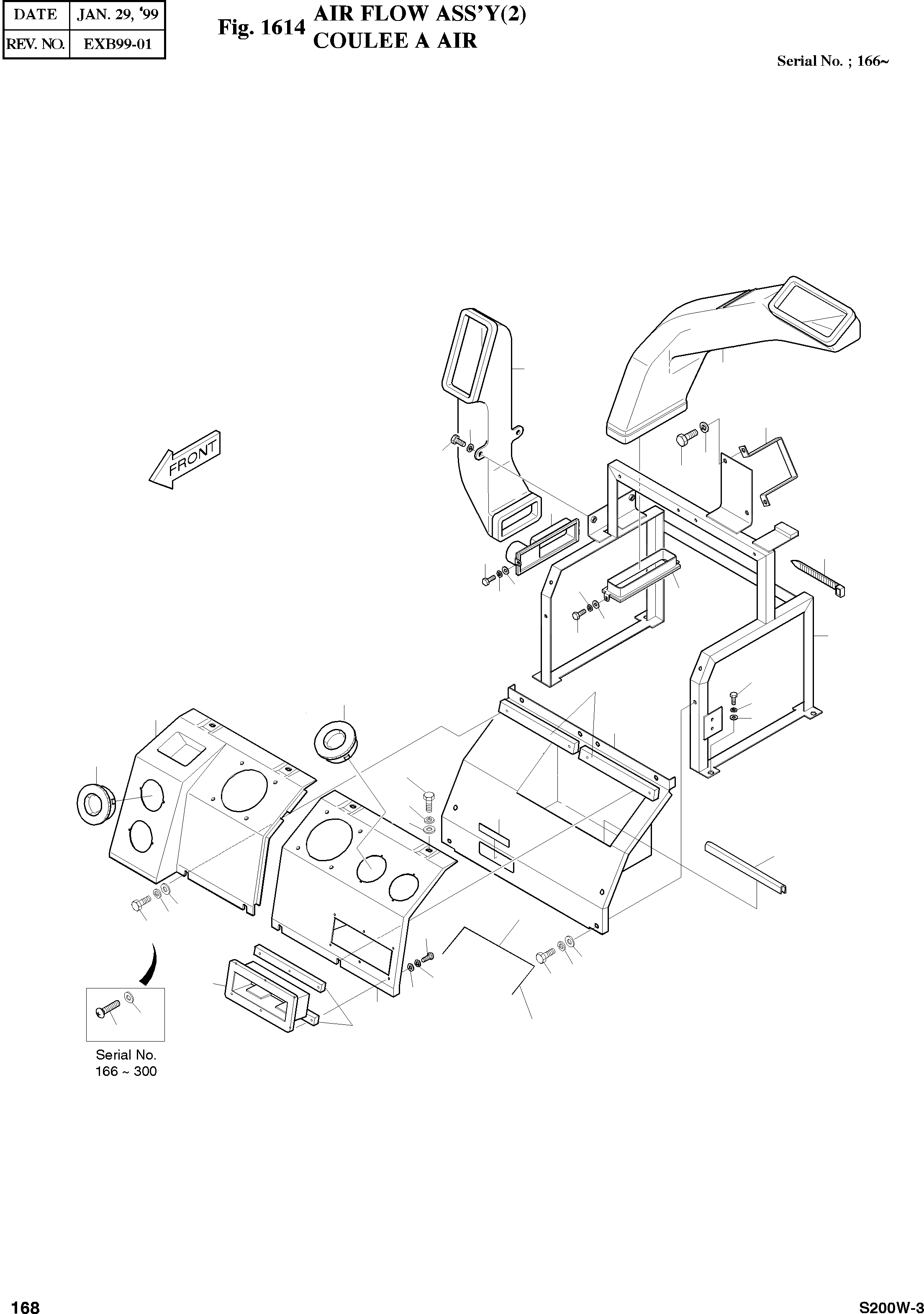

Запчасти Doosan Daewoo AIR FLOW ASSY(2) BODY PARTS

-

2185-1638F1

AIR FLOW ASS'Y

SERIAL: 166

1шт.

8

2415-9007

NOZZLE;AIR

desc: INJECTEUR

4шт.

17

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

18

S5010313

WASHER;PLAIN M6

desc: WASHER;PLATE

2шт.

19

2621-3225

COVER

SERIAL: 166-300

1шт.

19

2621-3225A

COVER

SERIAL: 301

1шт.

20

2621-3226

COVER

SERIAL: 166-300

1шт.

20

2621-3226A

COVER

SERIAL: 301

1шт.

21

2197-1188

SUPPORT ASS'Y

SERIAL: 166-300

1шт.

21

2197-1188A

SUPPORT ASS'Y

SERIAL: 301-910

1шт.

21

2197-1188B

SUPPORT ASS'Y

SERIAL: 911

1шт.

22

2621-3514

COVER

desc: COUVERCLE

1шт.

23

2185-1636

DUCT;COOL AIR

SERIAL: 166-300

1шт.

23

2185-1636A

DUCT;COOL AIR

SERIAL: 301

1шт.

24

2185-1637

DUCT;COOL AIR

SERIAL: 166-300

1шт.

24

2185-1637A

DUCT;COOL AIR

SERIAL: 301

1шт.

26

2621-3536

COVER

desc: COUVERCLE

1шт.

27

2621-3513

COVER

desc: COUVERCLE

1шт.

28

S0511853

BOLT M10X1.5X20

desc: BOULON

4шт.

29

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

30

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

4шт.

31

S3459113

SCREW

SERIAL: 166-300

12шт.

32

S5010513

WASHER;PLAIN M8

SERIAL: 166-300

16шт.

32

2114-1058D29

WASHER

SERIAL: 301

16шт.

33

S0508853

BOLT M8X1.25X20

SERIAL: 166-300

4шт.

33

S0508853

BOLT M8X1.25X20

SERIAL: 301-910

16шт.

33

S0509053

BOLT M8X1.25X25

SERIAL: 911

16шт.

34

2197-1437

BRACKET

desc: SUPPORT

1шт.

35

4621-3211A

COVER

desc: COUVERCLE

1шт.

36

S3458583

SCREW M4X0.7X12

SERIAL: 166-910

6шт.

36

S2201863

BOLT;SOCKET M4X1.7X12

SERIAL: 911

6шт.

37

S5100103

WASHER;SPRING M4

desc: RONDELLE ELASTIQUE

6шт.

38

S5000103

WASHER;PLAIN M4

desc: RONDELLE PLATE

6шт.

39

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

40

2190-2049

PLATE;NAME

desc: PLAQUE SIGNALETIQUES

1шт.

41

2161-1744

RUBBER

SERIAL: 166-300

1шт.

42

2530-1584

HARNESS;CAR STEREO JOINT

SERIAL: 166-300

1шт.

42

2530-1584A

HARNESS;CAR STEREO JOINT

SERIAL: 301-740

1шт.

42

2530-1584B

HARNESS;CAR STEREO JOINT

SERIAL: 741

1шт.

43

2124-1084D4

CLIP;BAND

desc: ATTACHE

1шт.

46

2627-1519

PLATE

SERIAL: 911

2шт.

47

2627-1521

PLATE

SERIAL: 911

2шт.

48

S5102503

WASHER;SPRING M8

SERIAL: 911

12шт.
