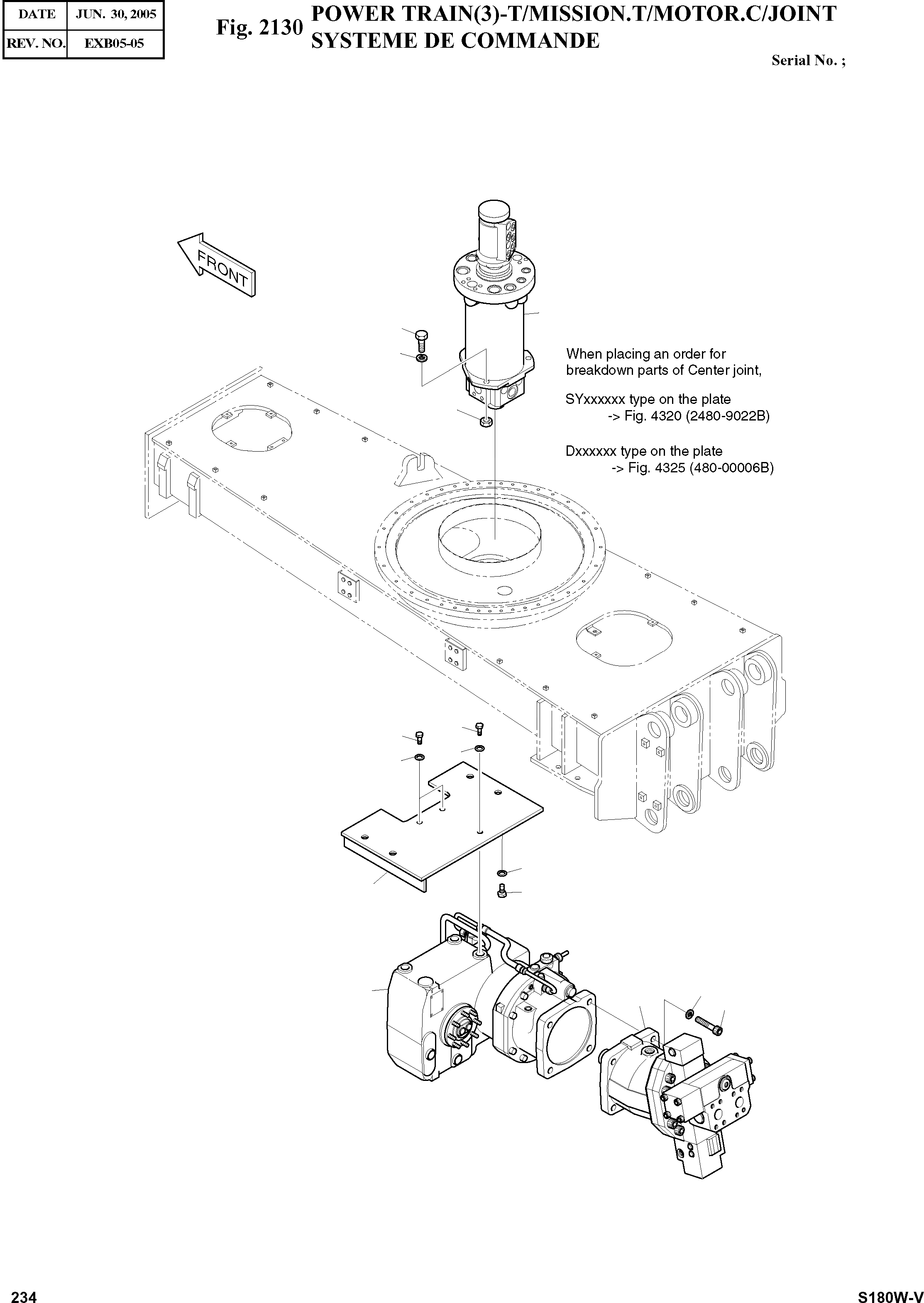

Запчасти Doosan Daewoo POWER TRAIN(3)-T/MISSION.T/MOTOR.C/JOINT POWER TRAIN

-

2200-1043A

POWER TRAIN

SC: D

-2шт.

5

401-00393

MOTOR;TRAVEL

SERIAL: 1001-1030

1шт.

5

401-00393A

MOTOR;TRAVEL

SERIAL: 1031-1092

1шт.

5

401-00393B

MOTOR;TRAVEL

SERIAL: 1093

1шт.

6

2210-9410B

TRANSMISSION

desc: TRANSMISSION

1шт.

7

2480-9022B

JOINT;CENTER

desc: JOINT CENTRAL

1шт.

7

480-00006B

JOINT;CENTER

desc: JOINT CENTRAL

1шт.

20

S5102903

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

21

S4012933

NUT M16X2.0

desc: ECROU

3шт.

24

S0521561

BOLT M16X2.0X45

SERIAL: 1001-1259

3шт.

24

S0521566

BOLT M16X2.0X45

SERIAL: 1260

3шт.

26

S0527661

BOLT M20X2.5X50

SERIAL: 1001-1259

3шт.

26

S0527666

BOLT M20X2.5X50

SERIAL: 1260

3шт.

28

S5103103

WASHER;SPRING M20

desc: RONDELLE ELASTIQUE

4шт.

30

S2221766

BOLT M16X2.0X55

desc: BOULON

4шт.

33

S0570461

BOLT M20X2.5X80

SERIAL: 1001-1259

4шт.

33

S0570466

BOLT M20X2.5X80

SERIAL: 1260

4шт.

34

621-00237A

PLATE

desc: PLAQUE

1шт.

35

S5110901

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

36

2114-9012A

WASHER;HARDEN

desc: RONDELLE

3шт.
